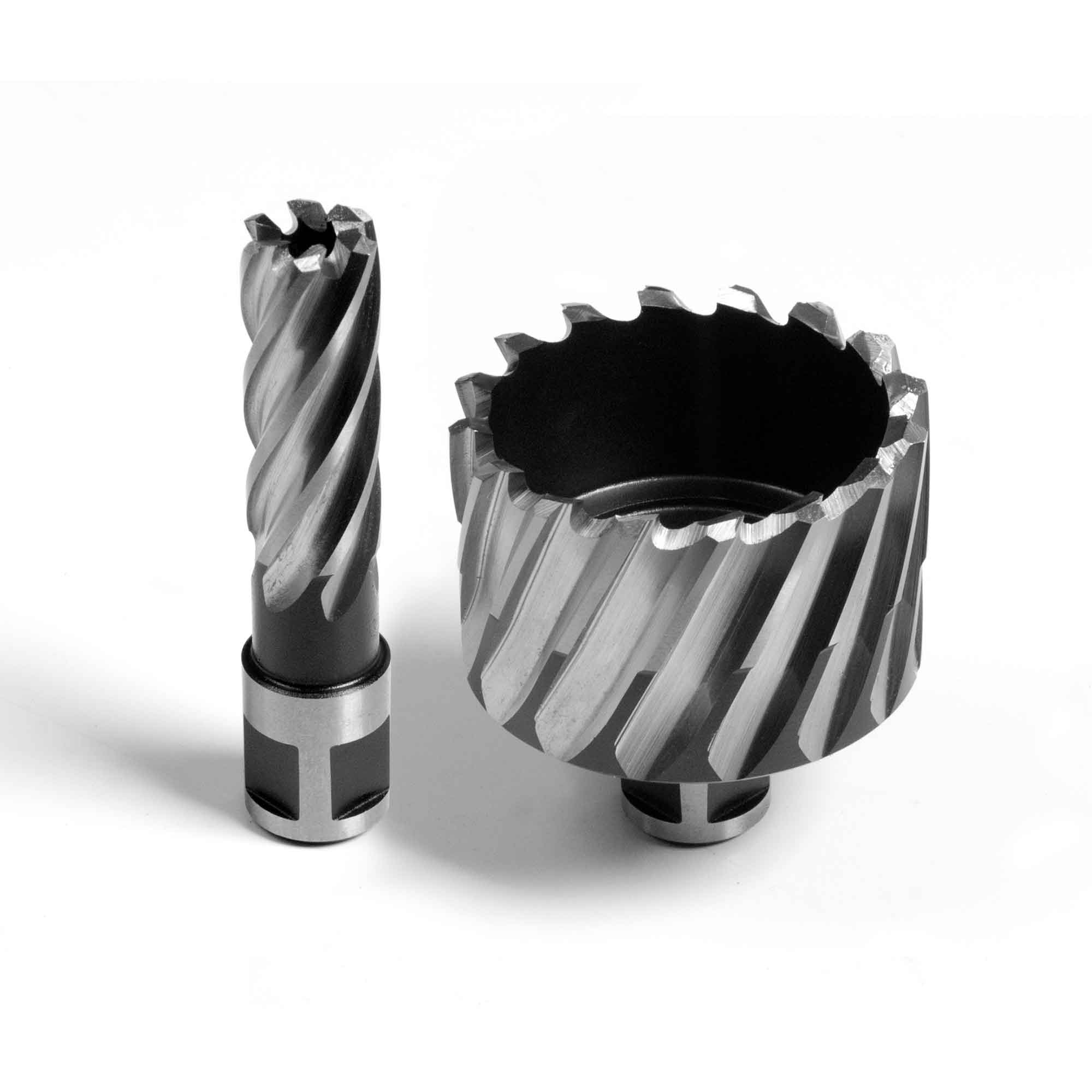

1 in. Depth Cyclone Premium Annular Cutter With Pilot Pin Included
Home All Products
1 in. Depth Cyclone Premium Annular Cutter With Pilot Pin Included
1 in. Depth Cyclone Premium Annular Cutter With Pilot Pin Included 27/64 in.
Frequently Bought Together
  • Description -
  • Specifications +
  • Buy Now, Pay Later +

Description

Cyclone Premium Annular Cutters are available in stock for immediate delivery.

  • Available in four depth sizes: 1 Inch, 2 Inch, 3 Inch and 4 Inch.
  • Pilot pin included with every cutter.

Cyclone M2AL high-speed steel annular cutters: M2AL cutters have been developed as an alternative to the more common M2, M35, and M42 cutters. M2AL offers many advantages over these traditional cutter types. Tooth hardness is optimized and heat-treated to 68HRC to maximize cutter performance. M2AL cutters also include a tapered hardness from the shank, through the cutter body and to the cutter teeth. This makes the cutters more resistant to the torque created while cutting and thus prevent breakage.

Included pilot pin: Evolution recommends that all annular cutters be cooled properly throughout the cut to ensure cutter life is optimized. In order to accomplish this, an included pilot pin is required so the coolant can be delivered directly to the cutting surface. The included pilot pin is yet another value-added feature that makes Evolution annular cutters the easy choice for industrial drilling applications.

Evolution Standard Geometry: Evolution standard geometry is sufficient for most drilling applications. Manufactured specifically to maximize hole accuracy while minimizing cutter vibration and extending annular cutter life.

Evolution iD Style Geometry: When drilling through multiple layers of material, Evolution’s ID style cutters are recommended. Using this custom geometry enhances accuracy and saves time when compared to the alternative method of stopping after each layer and removing the residual slug. This allows for a single ejection of slugs when drilling through stacked material.

All Sizes
Diameter Decimal Equivalent 1 In. Depth 2 In. Depth 3 In. Depth 4 In. Depth 6 In. Depth
7/16 in. 0.4375 in. CC437 CC437L - - -
1/2 in. 0.5000 in. CC500 CC500L - - -
9/16 in. 0.5625 in. CC562 CC562L - - -
5/8 in. 0.6250 in. CC625 CC625L - - -
11/16 in. 0.6875 in. CC687 CC687L CC687X - -
3/4 in. 0.7500 in. CC750 CC750L CC750X - -
13/16 in. 0.8125 in. CC812 CC812L CC812X CC812XL -
7/8 in. 0.8750 in. CC875 CC875L CC875X - -
15/16 in. 0.9375 in. CC937 CC937L CC937X CC937XL CC937XLX
1 in. 1.0000 in. CC100 CC100L CC100X - -
1-1/16 in. 1.0625 in. CC106 CC106L CC106X CC106XL CC106XLX
1-1/8 in. 1.1250 in. CC112 CC112L CC112X - -
1-3/16 in. 1.1875 in. CC118 CC118L CC118X CC118XL CC118XLX
1-1/4 in. 1.2500 in. CC125 CC125L CC125X - -
1-5/16 in. 1.3125 in. CC131 CC131L CC131X - -
1-3/8 in. 1.3750 in. CC137 CC137L CC137X - -
1-7/16 in. 1.4375 in. CC143 CC143L CC143X - -
1-1/2 in. 1.5000 in. CC150 CC150L CC150X - -
1-9/16 in. 1.5625 in. CC156 CC156L CC156X - -
1-5/8 in. 1.6250 in. CC162 CC162L CC162X - -
1-11/16 in. 1.6875 in. CC168 CC168L CC168X - -
1-3/4 in. 1.7500 in. CC175 CC175L CC175X - -
1-13/16 in. 1.8125 in. CC181 CC181L CC181X - -
1-7/8 in. 1.8750 in. CC187 CC187L CC187X - -
1-15/16 in. 1.9375 in. CC193 CC193L CC193X - -
2 in. 2.0000 in. CC200 CC200L CC200X - -
2-1/4 in. 2.2500 in. CC225 CC225L CC225X - -
2-1/2 in. 2.5000 in. - CC250L - - -
2-9/16 in. 2.5600 in. - CC256L - - -
2-3/4 in. 2.7500 in. - CC275L - - -
3 in. 3.0000 in. - CC300L - - -

Specifications
