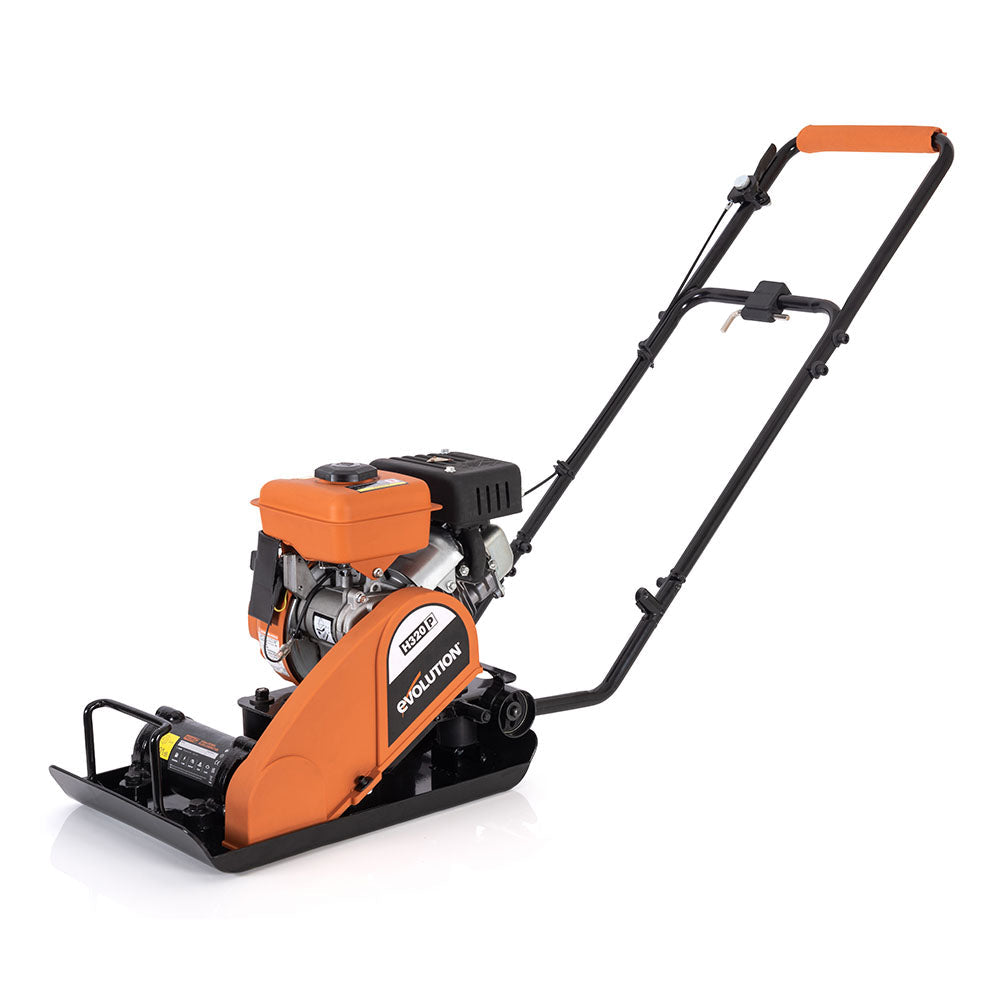

Evolution Hulk 320-P Petrol Plate Compactor
Evolution Hulk 320-P Petrol Plate Compactor
Frequently Bought Together
  • Description -
  • Specifications +
  • Items Supplied +
  • Buy Now, Pay Later +
Description +

Description

Why pay more when the Hulk H320-P Petrol Compactor offers 10Kn of compaction force, weighs less, takes up less space and can fit into places where larger compactors can’t go? Narrower and up to 20kg lighter than other petrol compactors the Hulk 320-P punches above its weight.

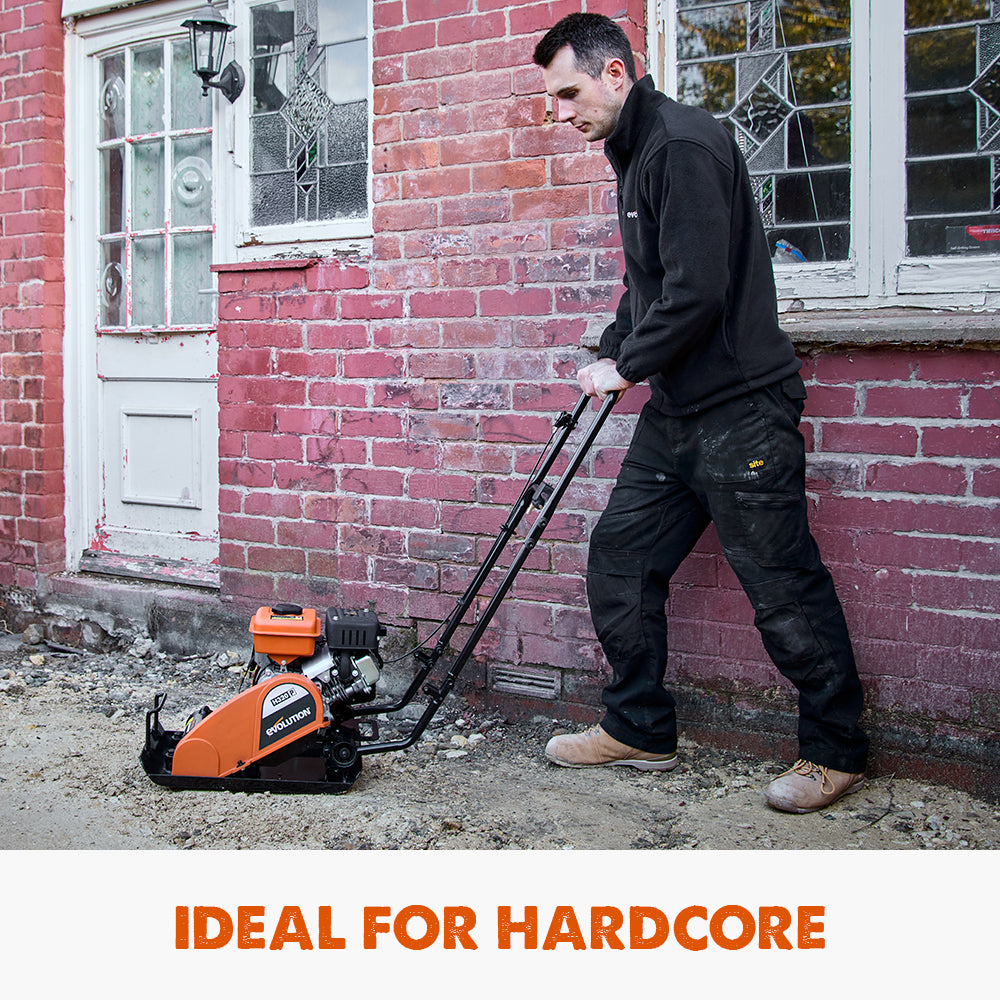

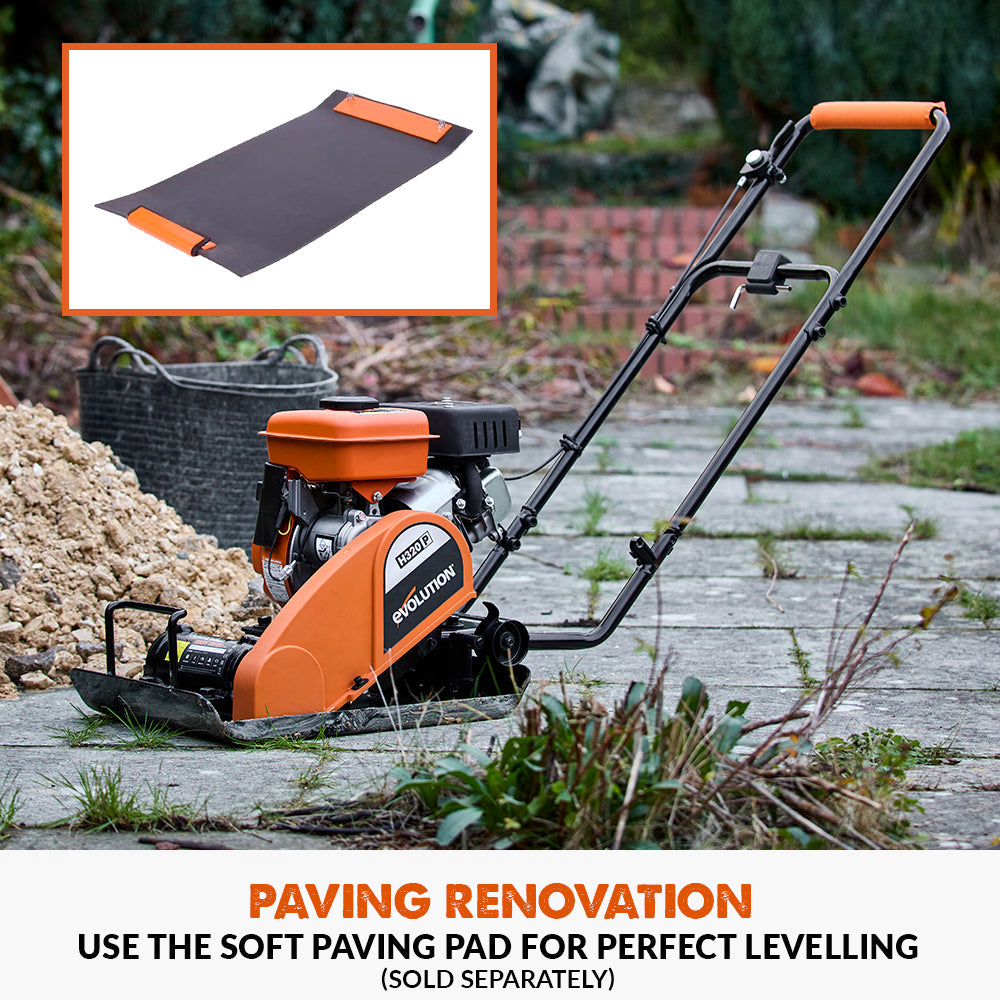

Suitable for driveways, patios, paving , brickwork, blocks, sub-base, gravel , landscaping, foundations and tarmac repair the Hulk 320-P is superbly versatile and easier to use than ever before; pair it with our paving pad and it's the perfect wacker for all types block and paving.

Ideal for trade and DIY use, if you need a petrol compactor for your groundwork projects you can rely on the Hulk 320-P to get the job done. Redesigned to be easier to use, especially in tight spots and coming with a full 3-Year warranty the Hulk 320-P is an easy choice to make for any business or when you're tackling a large DY project.

Features:
  • 400mm x 320mm Padfoot. Perfect where larger whackers can't fit.

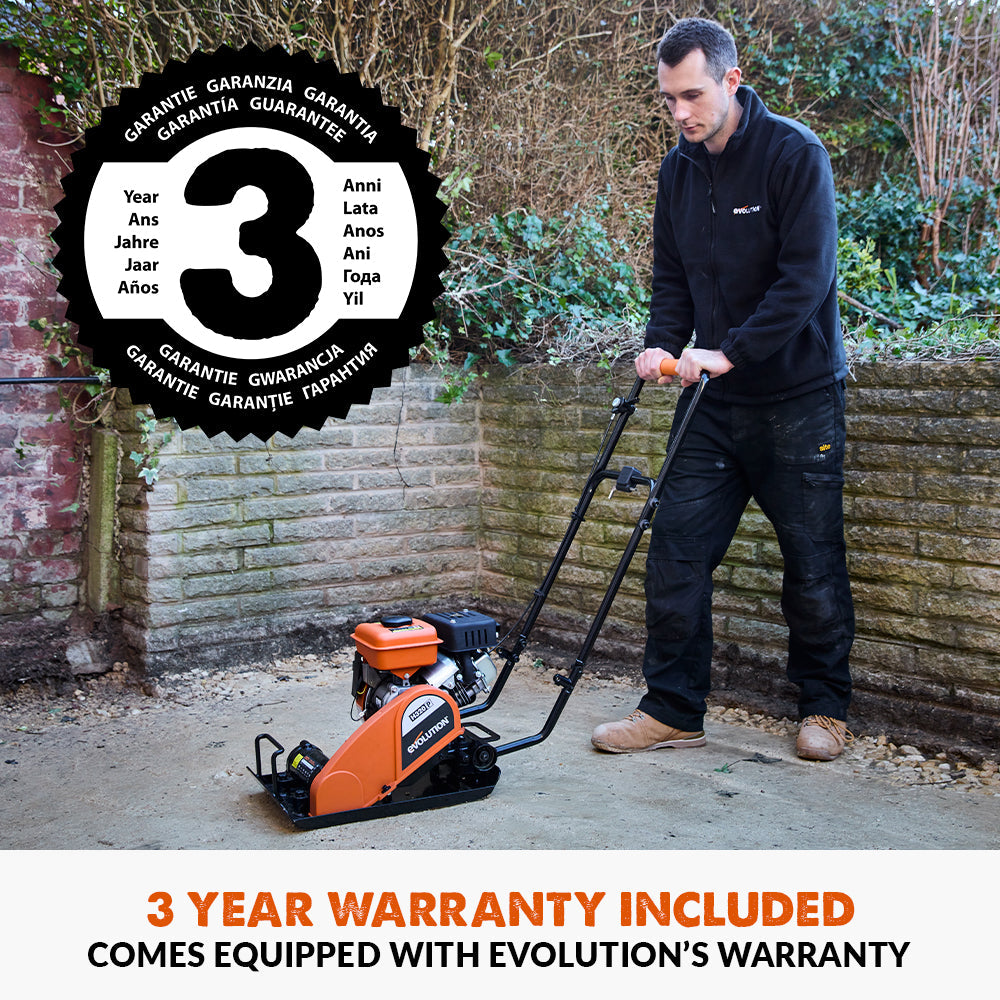

  • Cost effective alternative to hiring and backed by 3-year warranty.
  • Suitable for driveways, patios, paving , brickwork, blocks, sub-base, gravel , landscaping, foundations and tarmac repair.

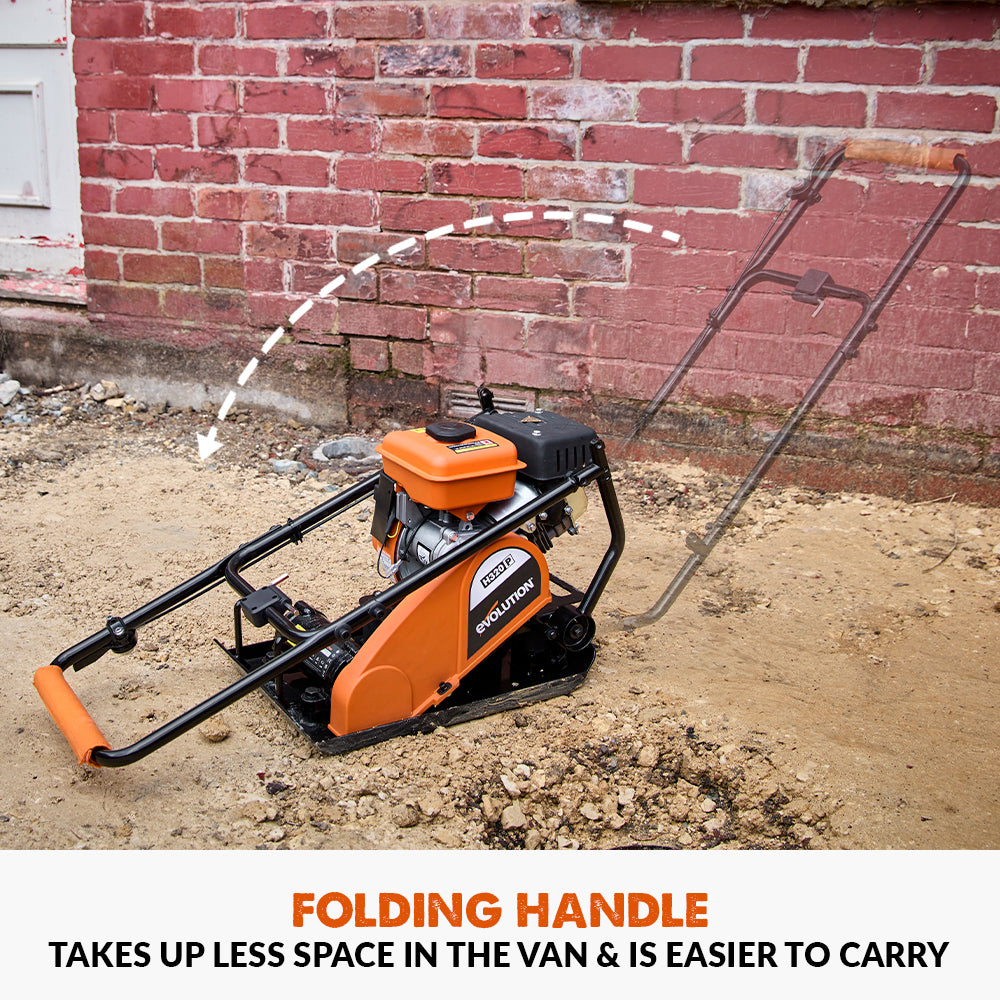

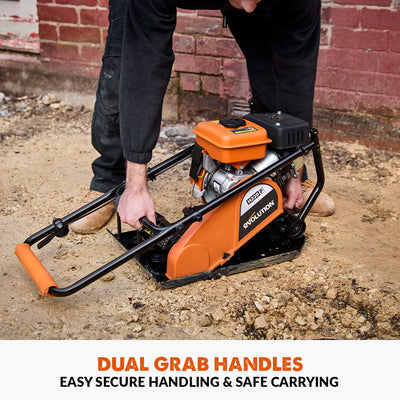

  • Compact & portable, handle folds into baseplate width

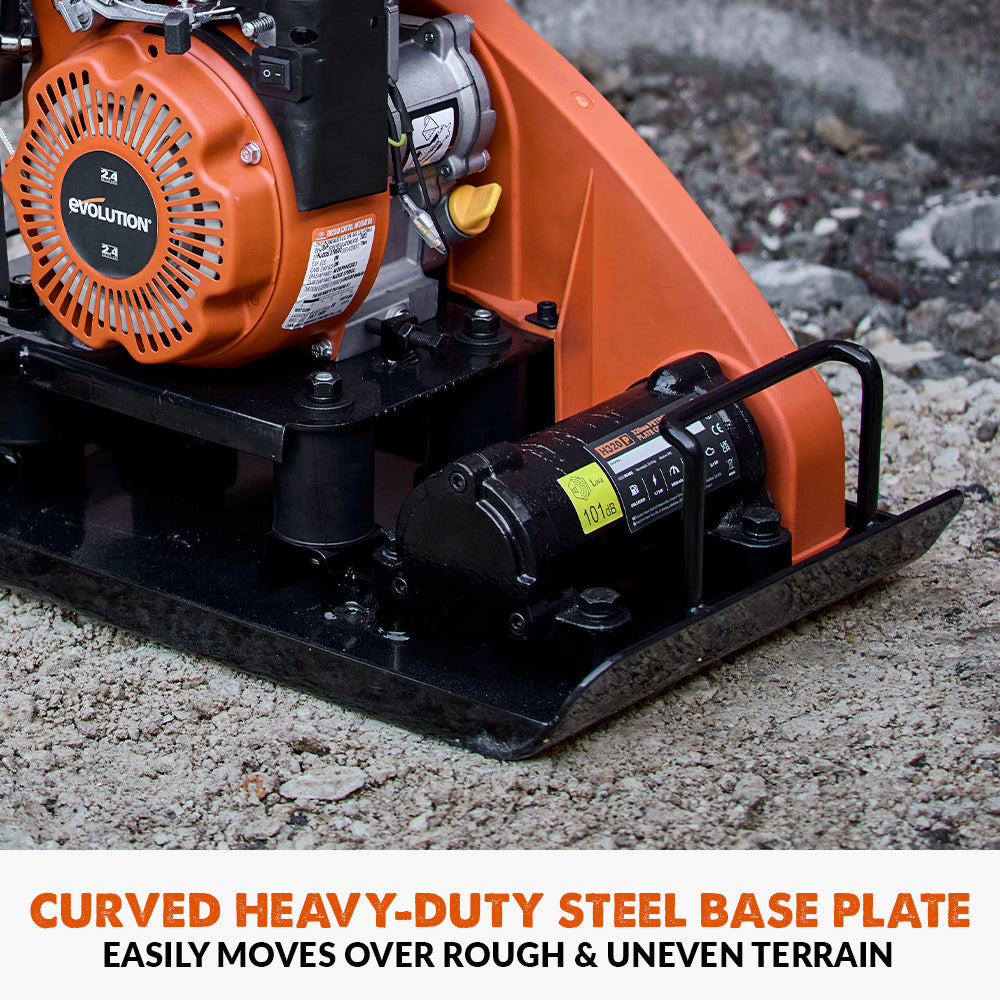

  • Durable 8mm thick steel plate, suitable for paving pad use.
  • Low frequency operation, 90hz, for optimal sub-soil compaction.

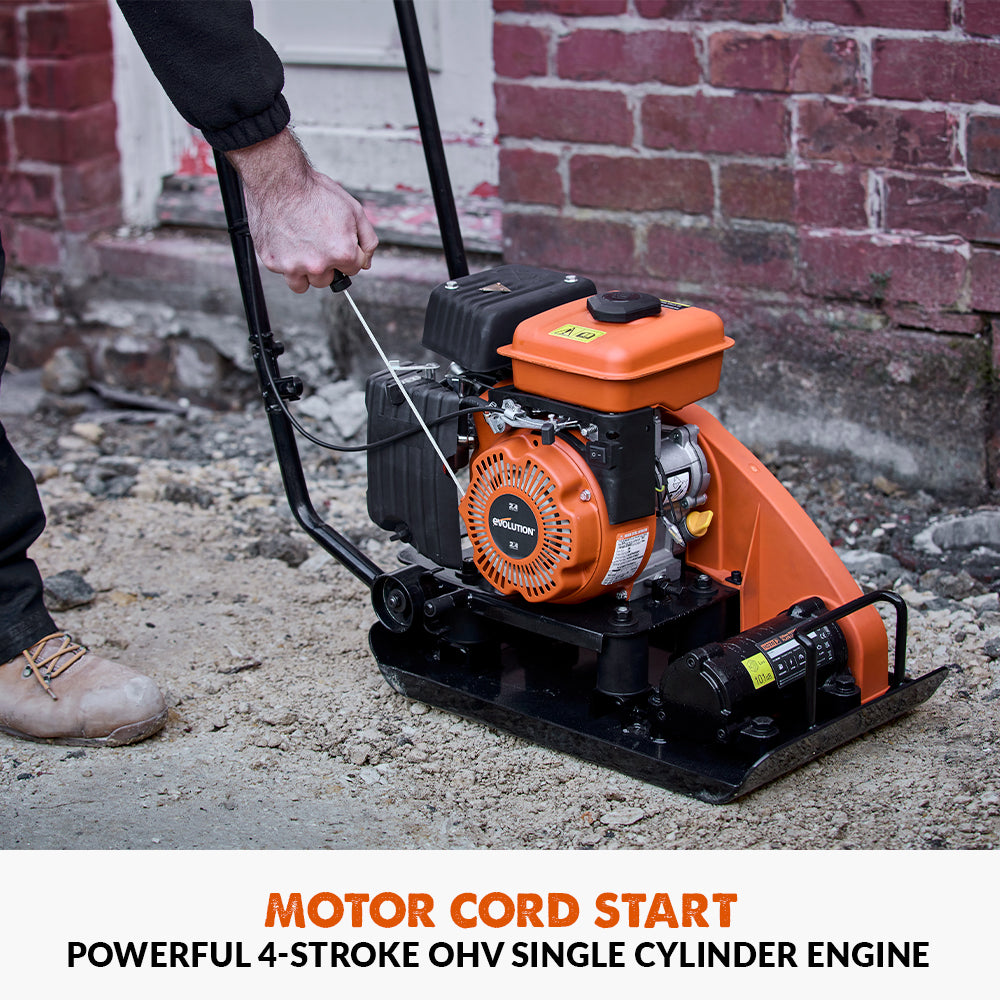

  • Features include an easy pull-start 80cc petrol engine, 1.5L fuel tank and forced air cooling system.
  • Spare parts and servicing options available.

Specifications +

Specifications

Engine Type Single cylinder 4 stroke OHV
Engine Power (HP) 2.4 @ 3600 rpm
Spark Plug Replacement LD E6TC (available from Evolution)
NGK BP6HS
CHAMPION L87YCC
AC DELCO 42FS
Spark Plug Gap 0.07 – 0.08 mm
Air Filter Replacement Evolution H1S58
Valve Clearances (cold) Inlet 0.15 mm 0.006 inches
Exhaust 0.20 mm 0.008 inches
Compaction Force (kN) 10
Recommended Maximum Operator Usage Time 20 Minutes
Oil Type SAE 10W-30/40
Oil Capacity 0.25 L
Fuel Type Standard Unleaded Petrol
Fuel Capacity 1.2 L
Foot print 400mm x 320mm
Handle Height
(during operations extension handle fitted)
1020mm
Machine Reach
(during operations extension handle fitted)
1290mm
Product Weight: 38kg
Packaged Weight: 40kg
Sound Pressure Level LPA: 101dB(A)
K=3 dB(A)
Sound Power Level LWA: 105dB(A)
K=3 dB(A)
Vibration (m/sec2) 15.8 K = 1.5
Items Supplied +

Items Supplied

Instruction Manual
Handle Extension
Handle Extension attachment thumb screws
Spark Plug Box Spanner
Engine Oil (500 ml bottle)
