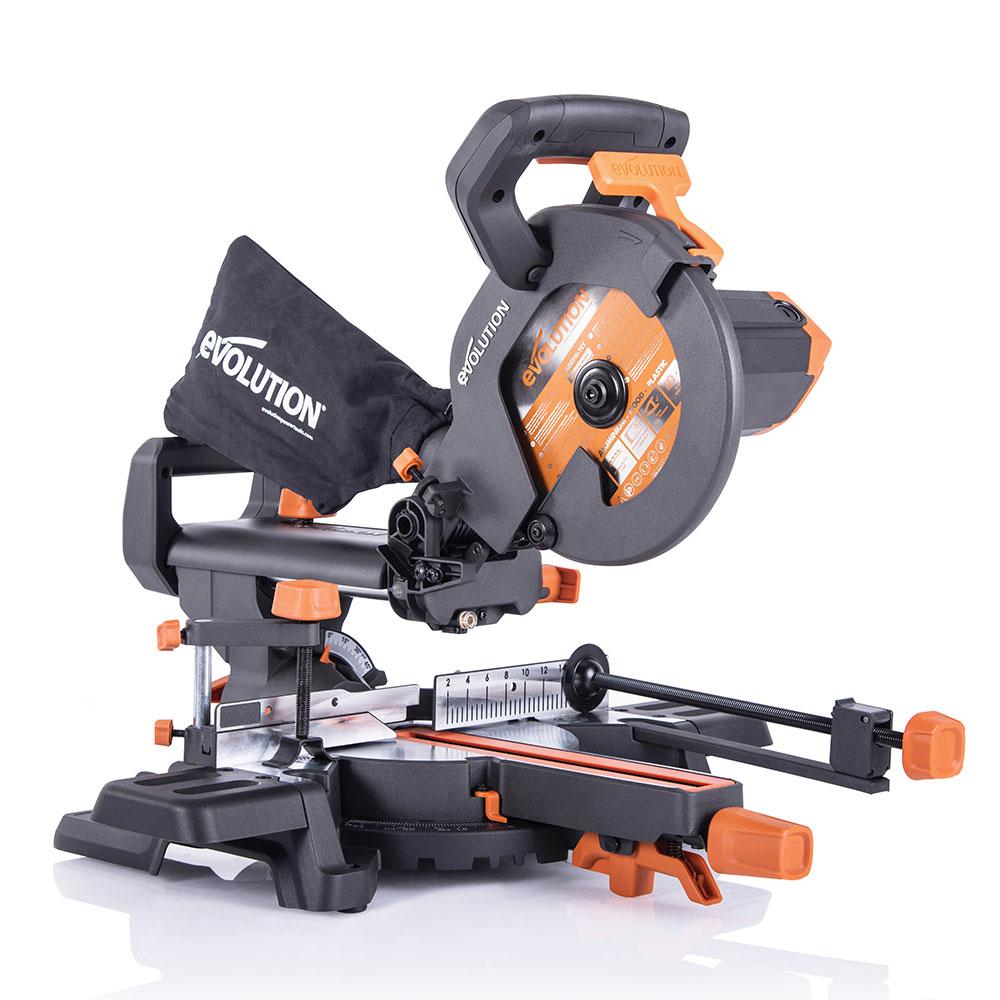

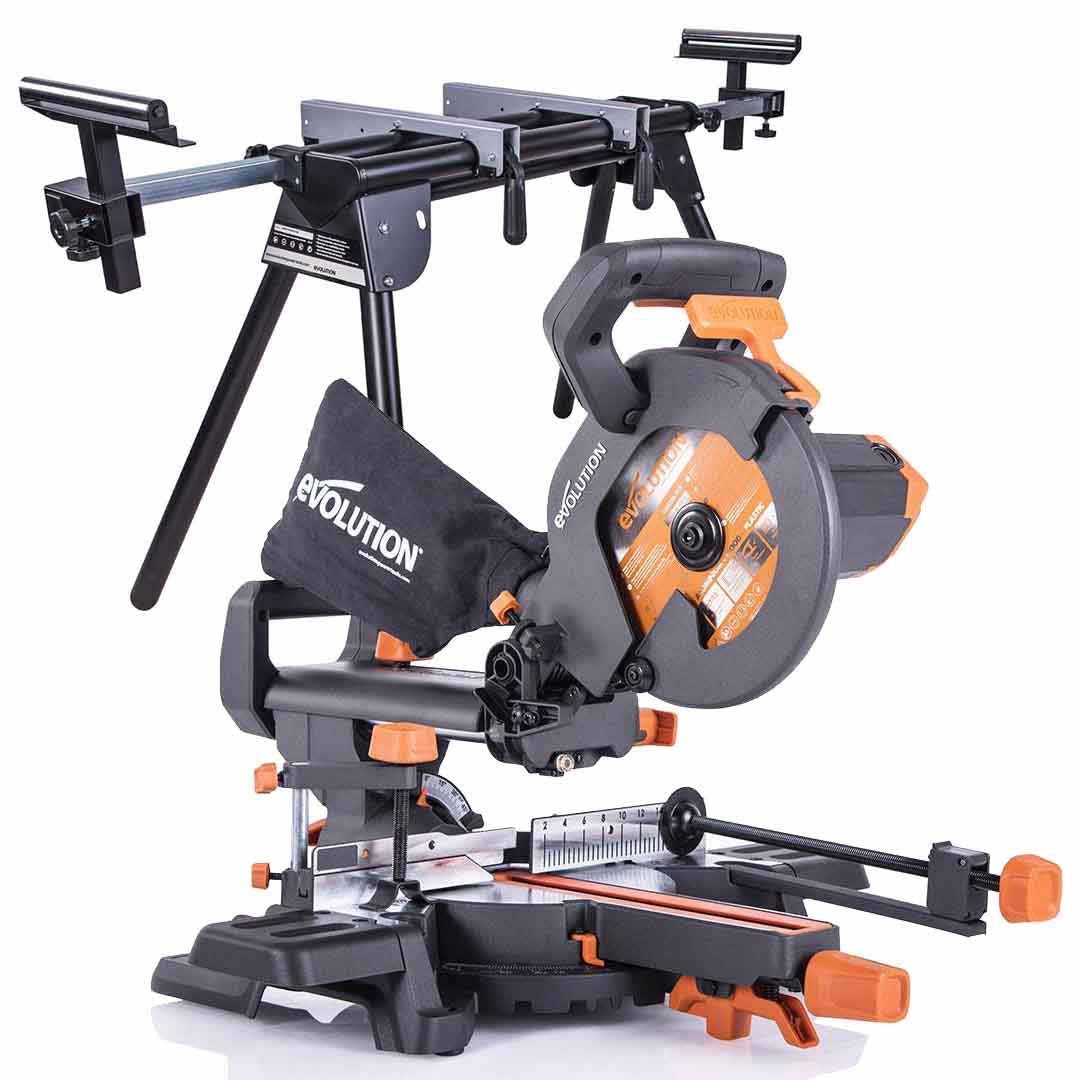

Evolution R210SMS+ 210mm Sliding Mitre Saw & Stand Bundle
Evolution R210SMS+ 210mm Sliding Mitre Saw & Stand Bundle 230V / Item As Listed
Frequently Bought Together
  • Description -
  • Specifications +
  • Buy Now, Pay Later +
Description +

Description

Save when you buy the R210SMS+ Mitre Saw and Mitre Saw Stand together.

Go premium and equip yourself with the best 210mm sliding compound mitre saw on the market. Multi-material cutting technology with all the features you'll need to get the job done. Delivering accuracy, reliability and the power to handle heavy-duty materials - the R210SMS+ is truly superb value for money.

Mitre Saw Features

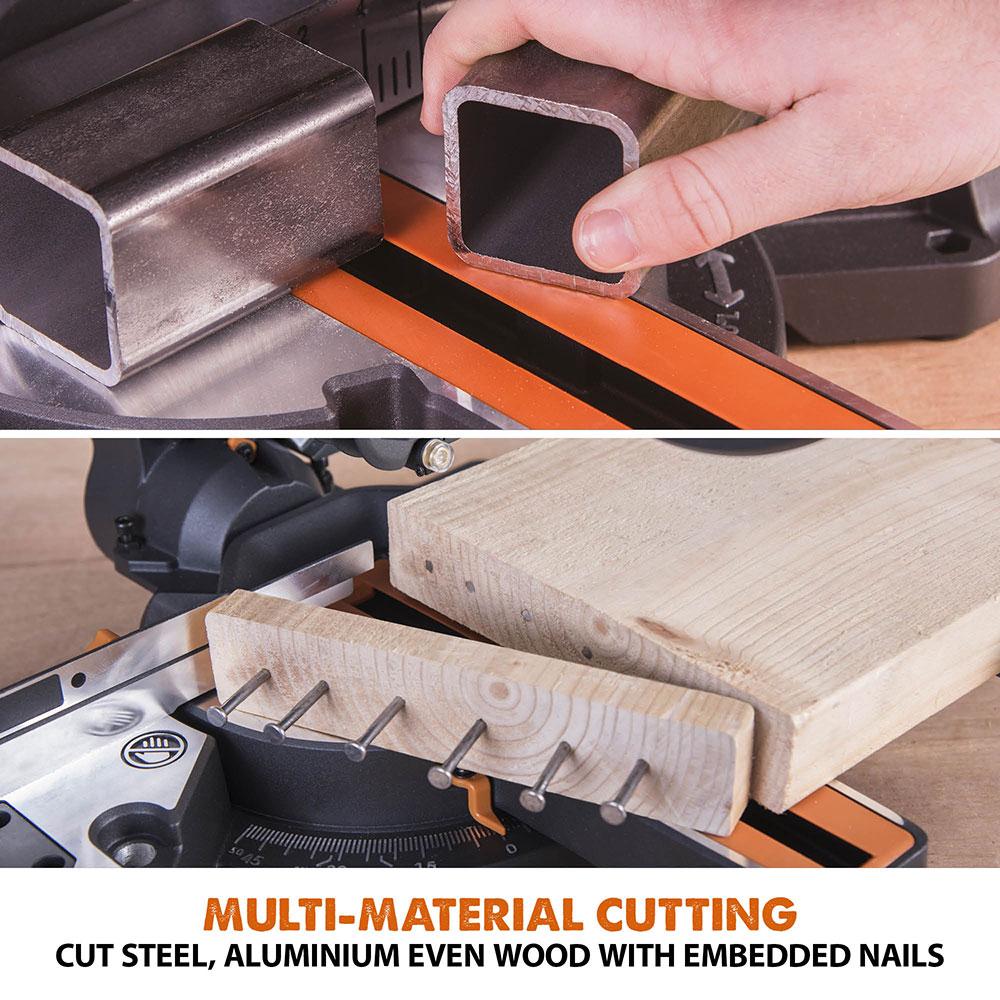

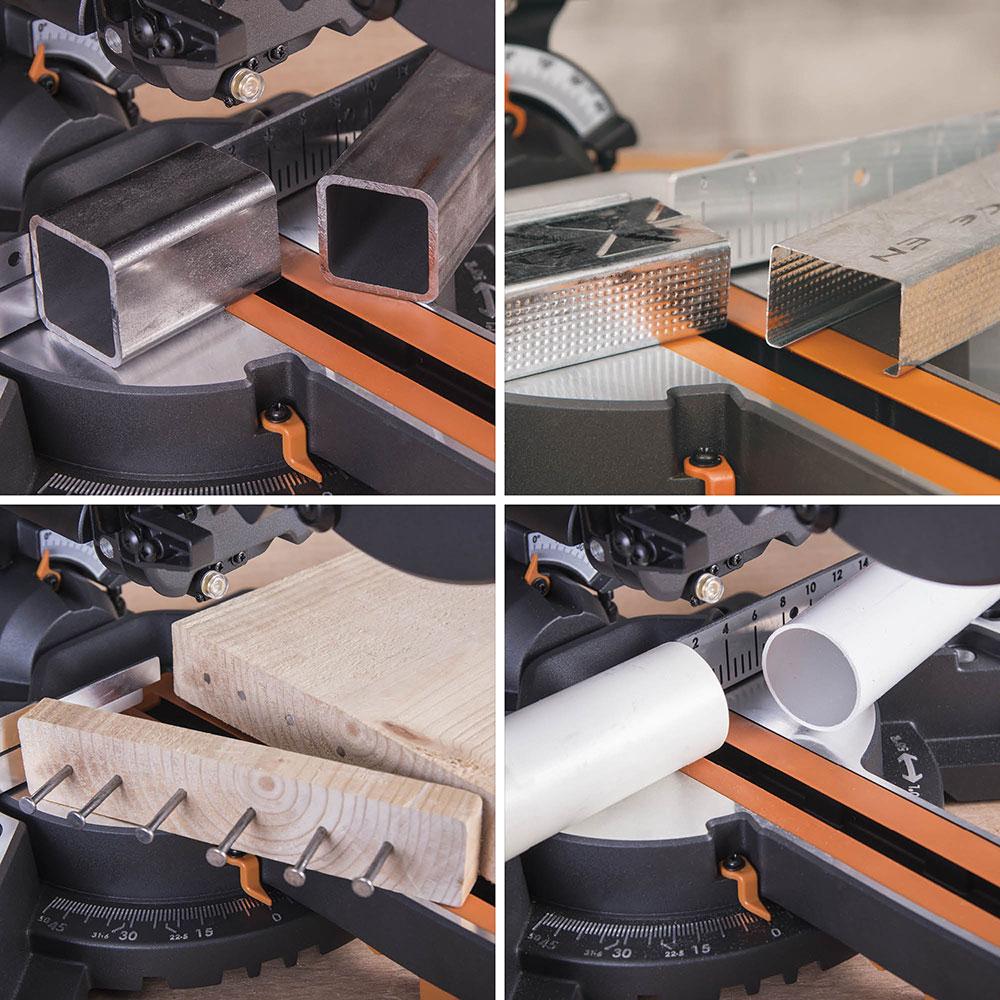

  • Multi-Material cutting technology. One saw, one blade, cuts all.*

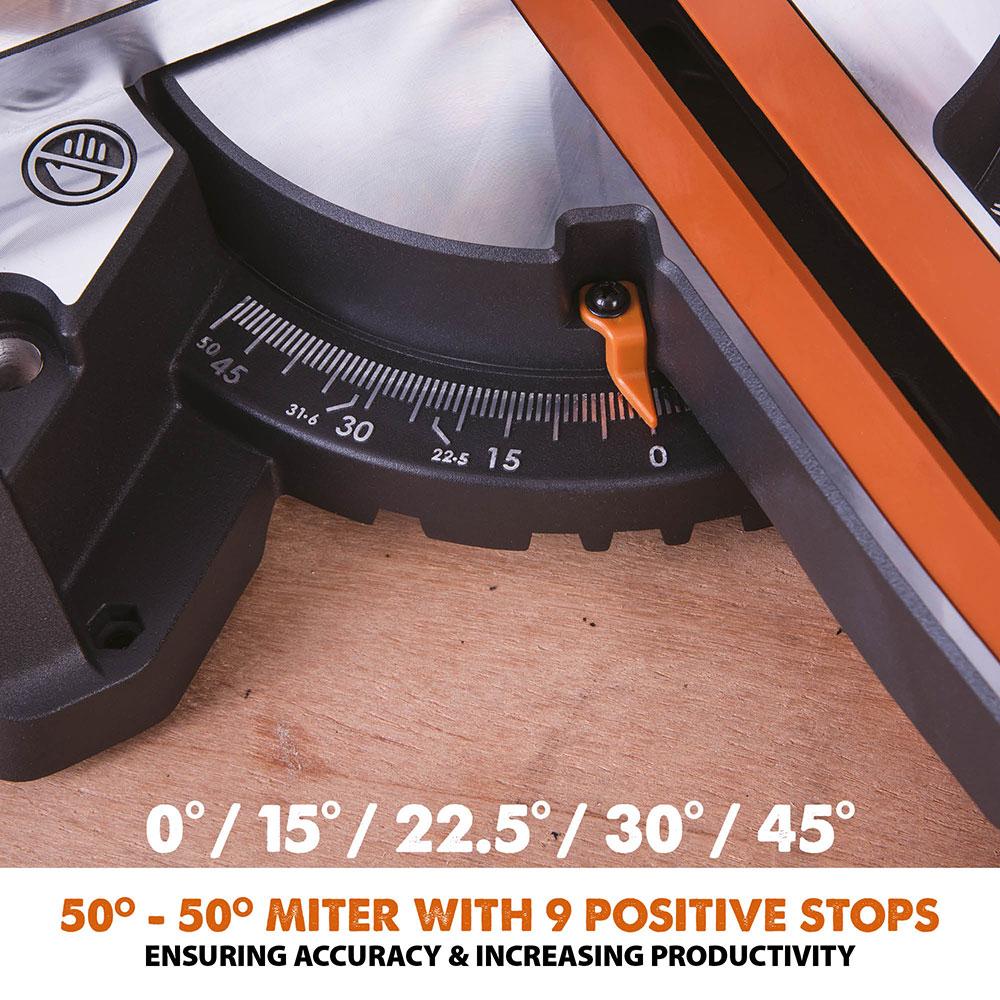

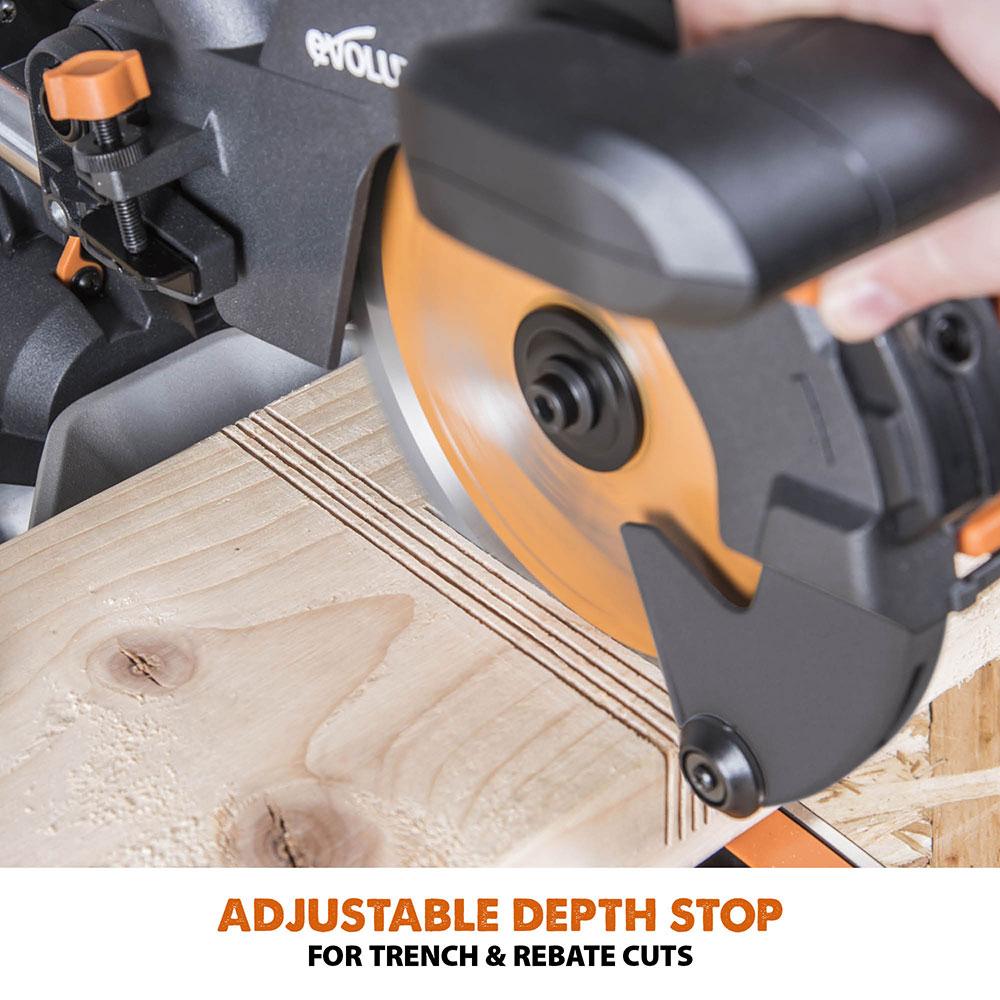

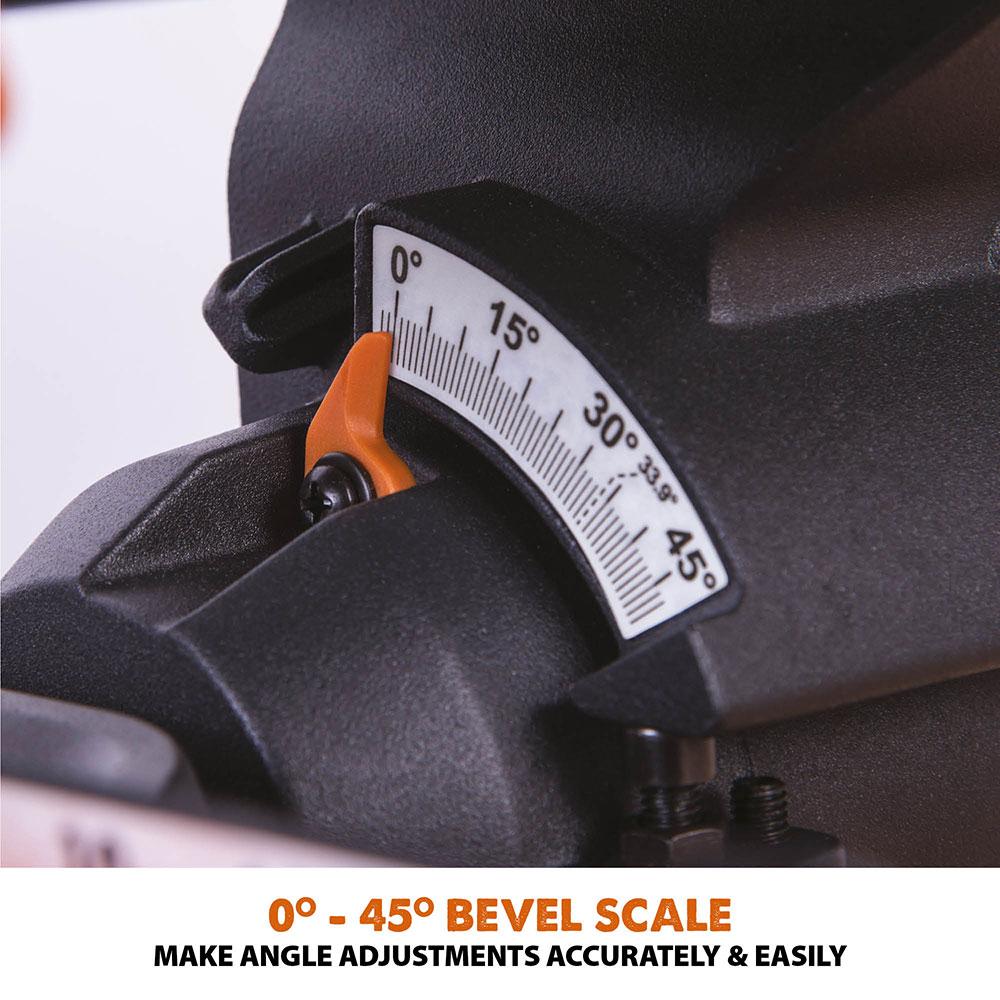

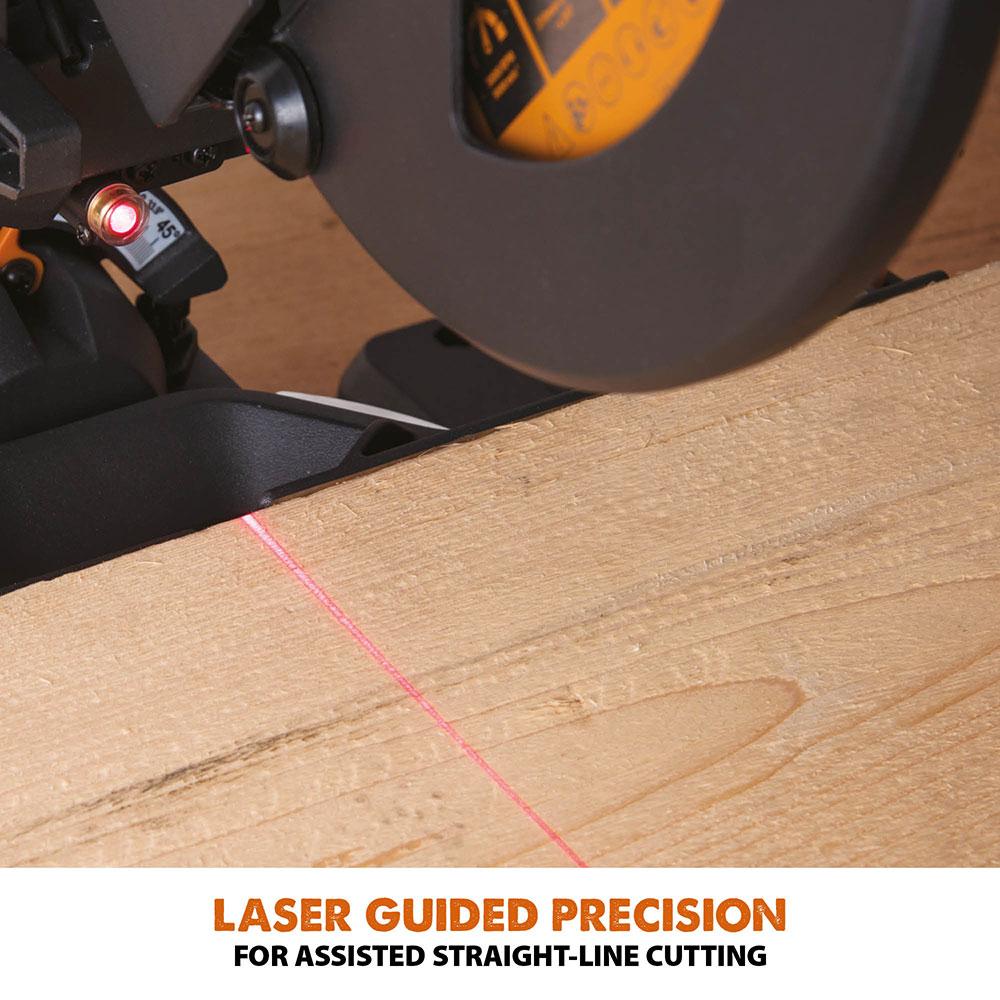

  • Precision cutting with laser guidance, trench cut facility, 230mm slide, 0˚ - 45˚ bevel and 50° - 50° mitre settings.
  • Reliability at the forefront of Evolution saws ensures smooth, square cutting every time in a variety of materials.

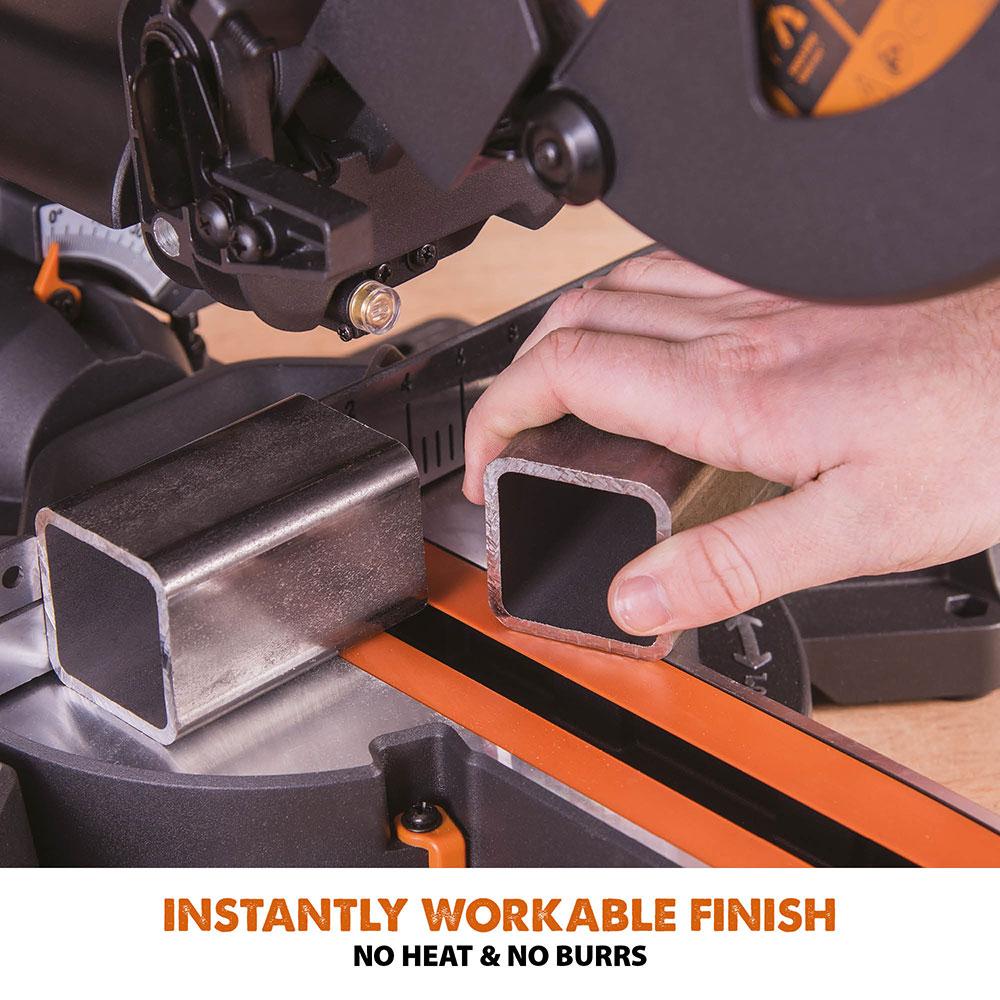

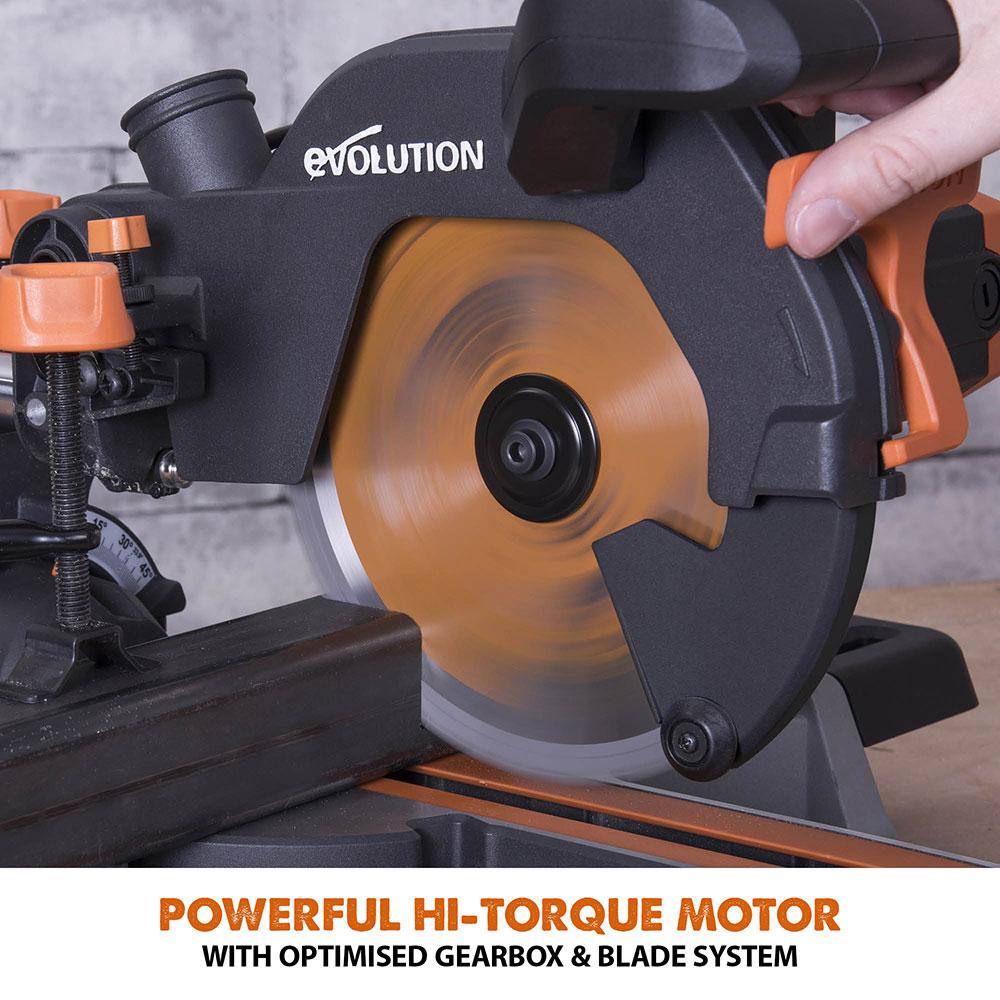

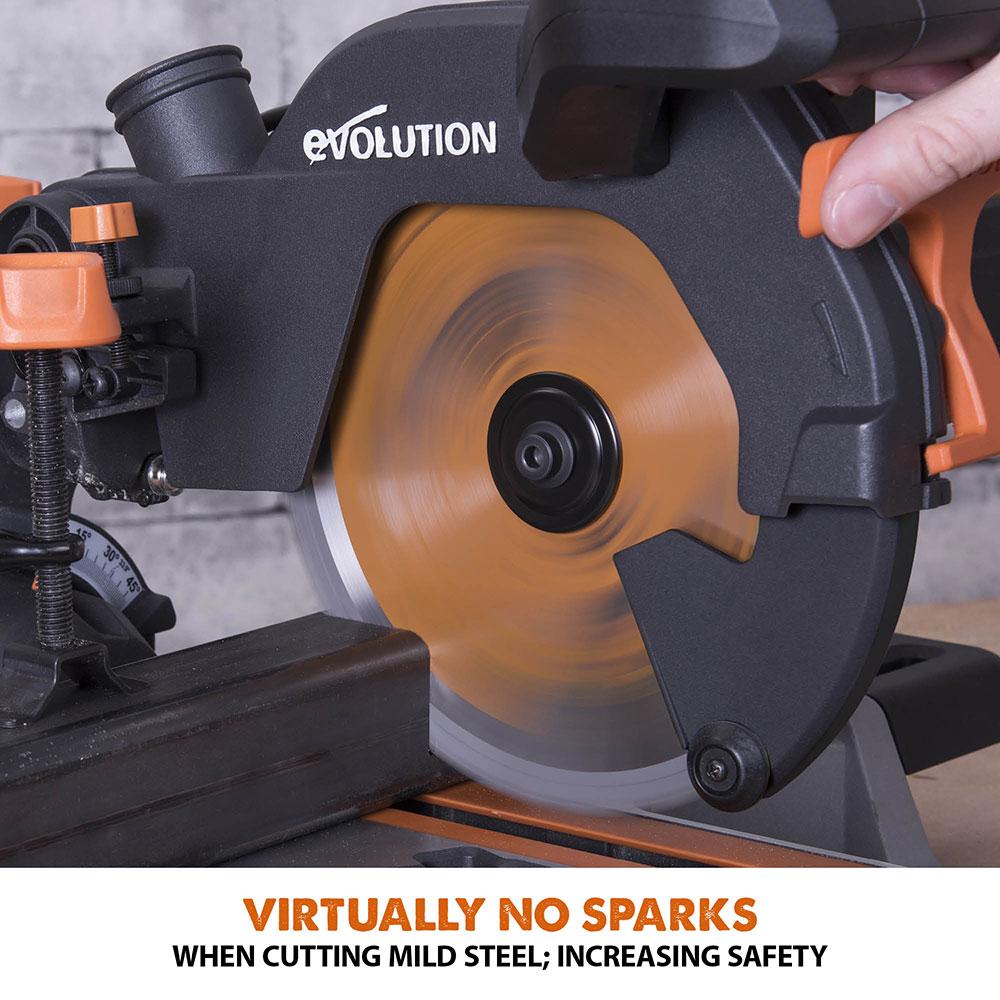

  • 1500W of hi-torque power & optimised gearbox to cut mild steel, wood with embedded nails and more.
  • Perform accurate Cross cuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.

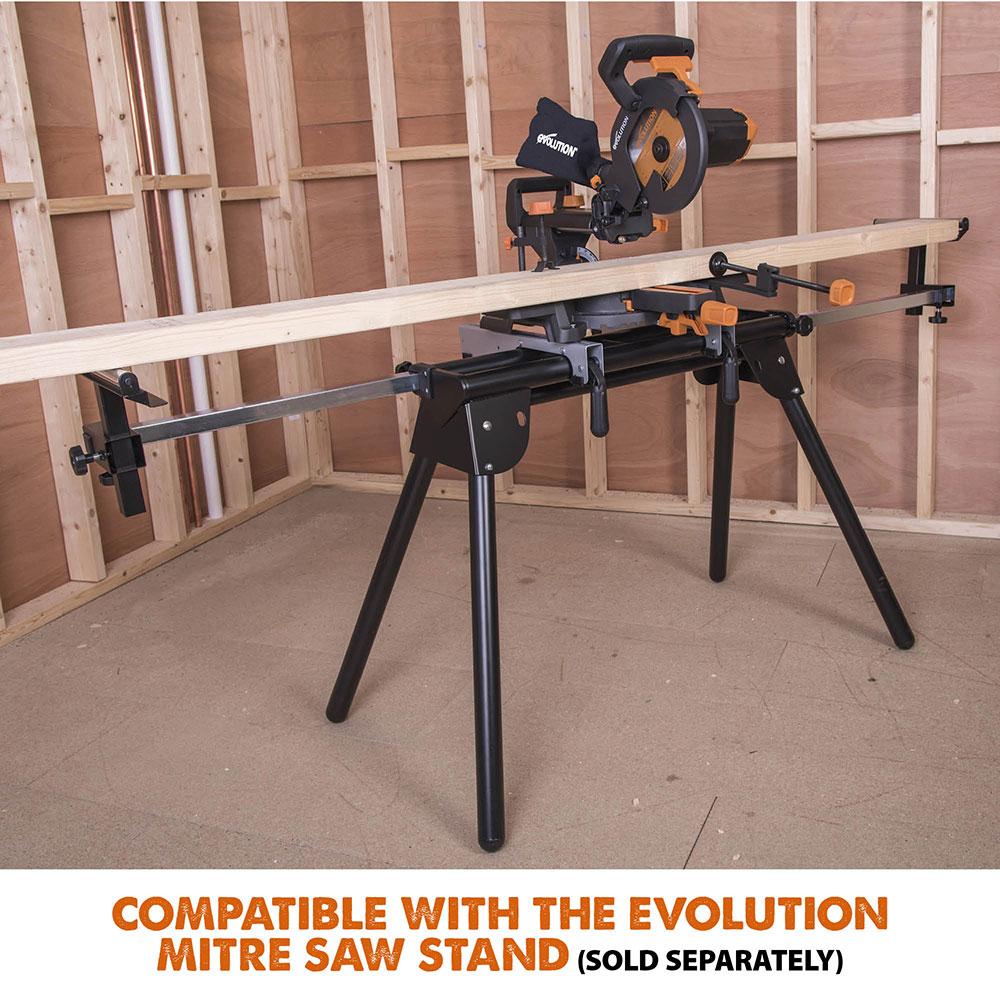

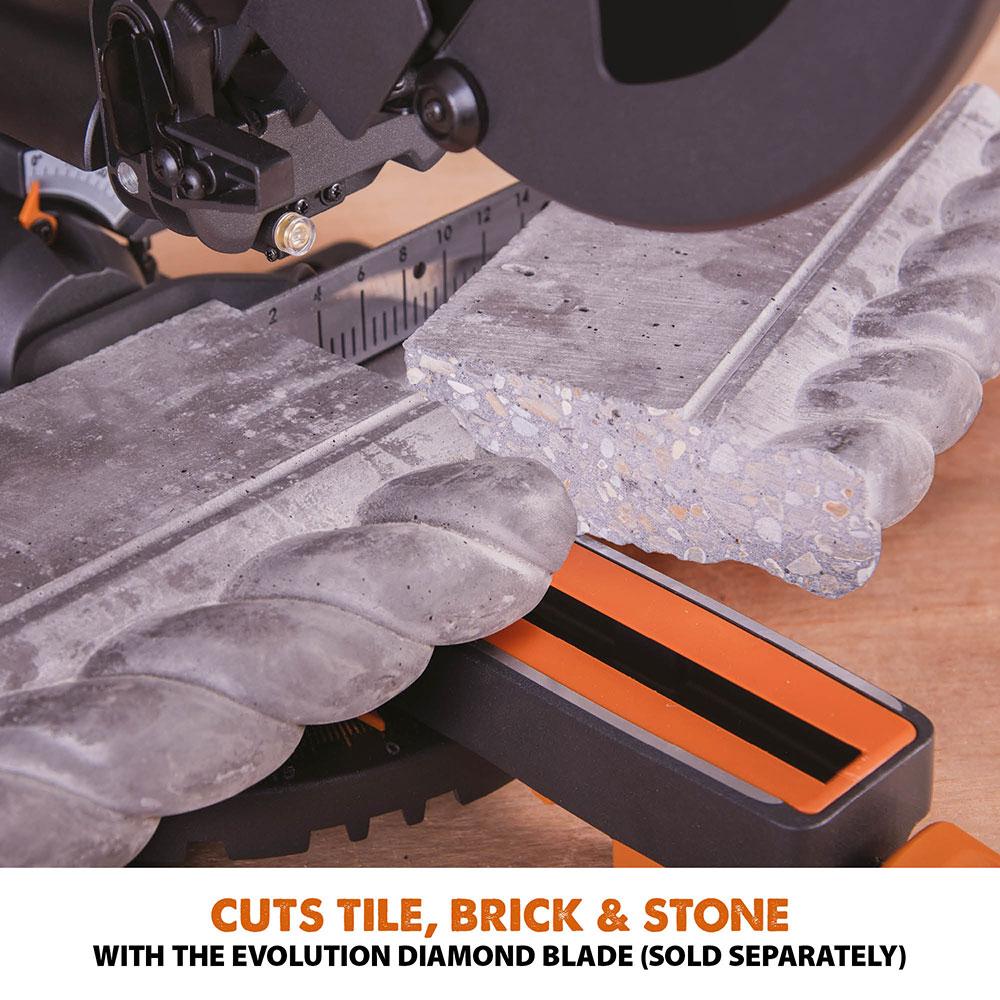

  • Compatible with the Evolution Mitre Saw Stand and 210mm continuous rim diamond blade for cutting tiles, brick & ornamental stone, (sold separately).
  • 3 Year limited warranty.

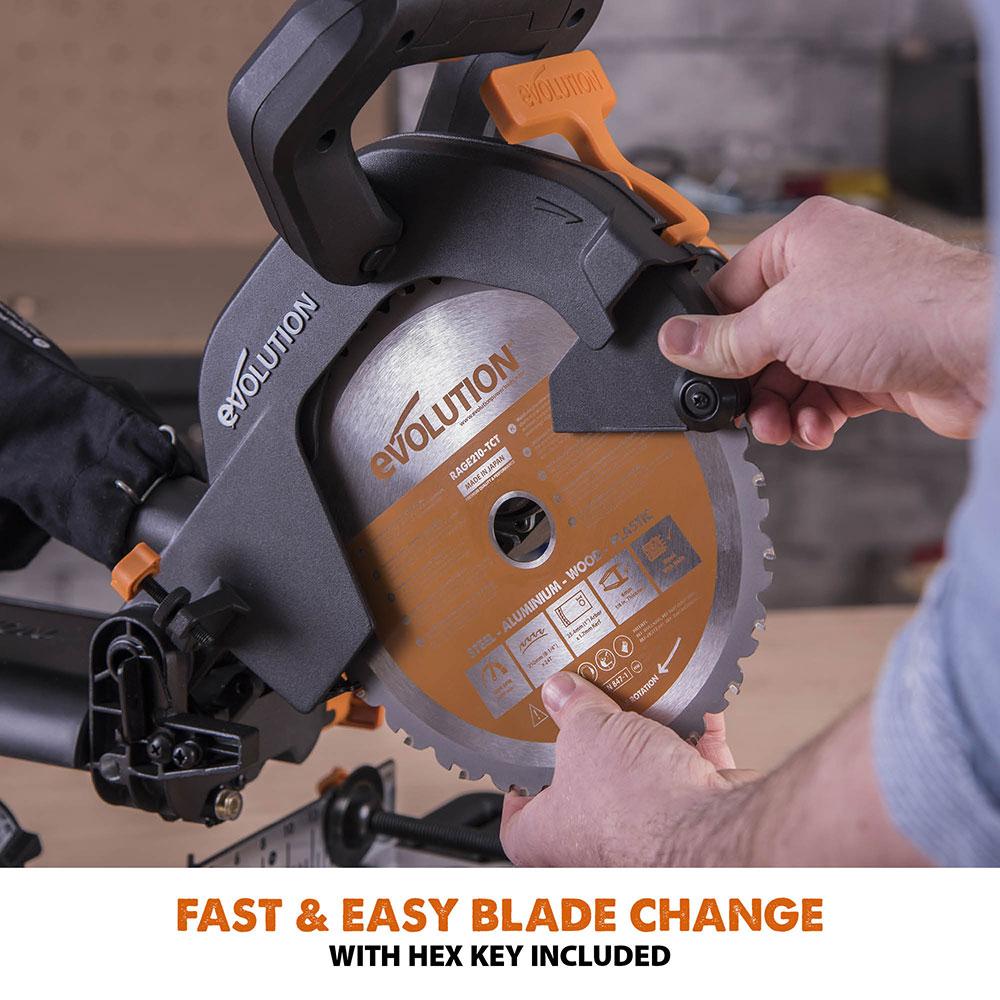

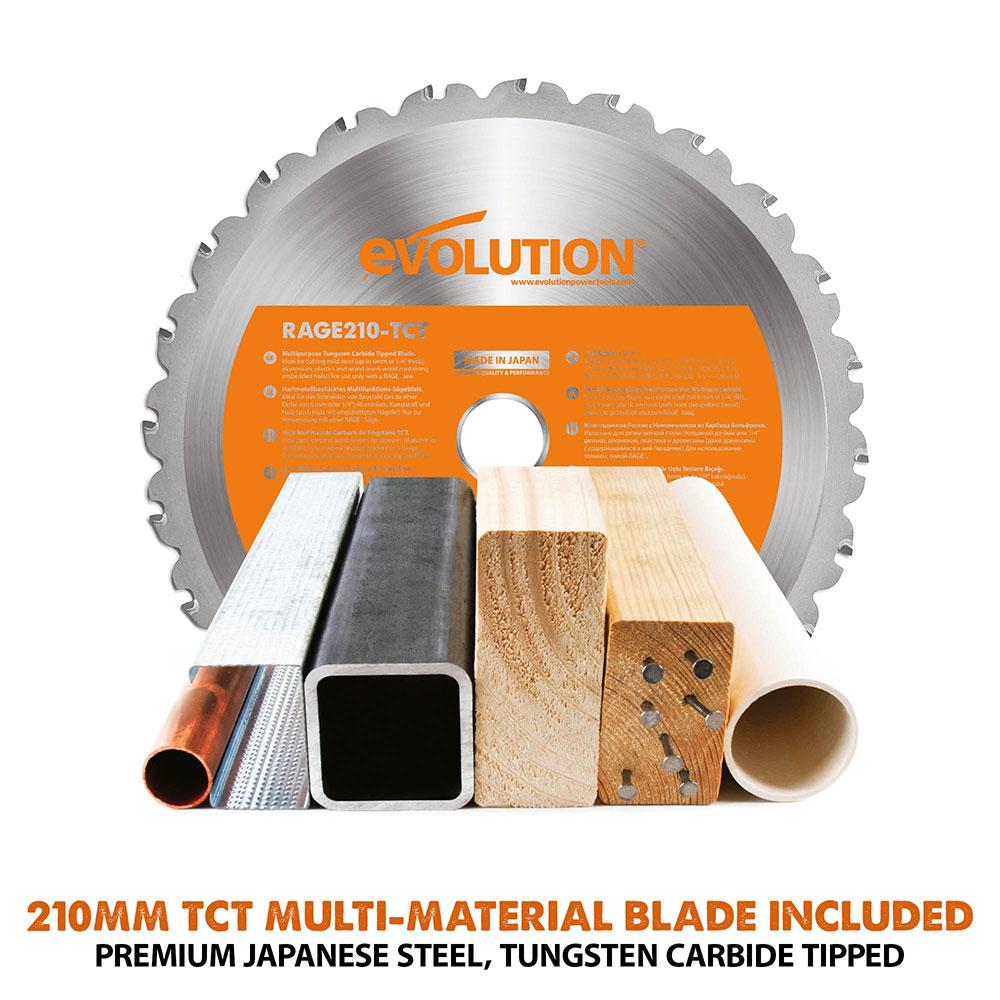

  • Premium Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.

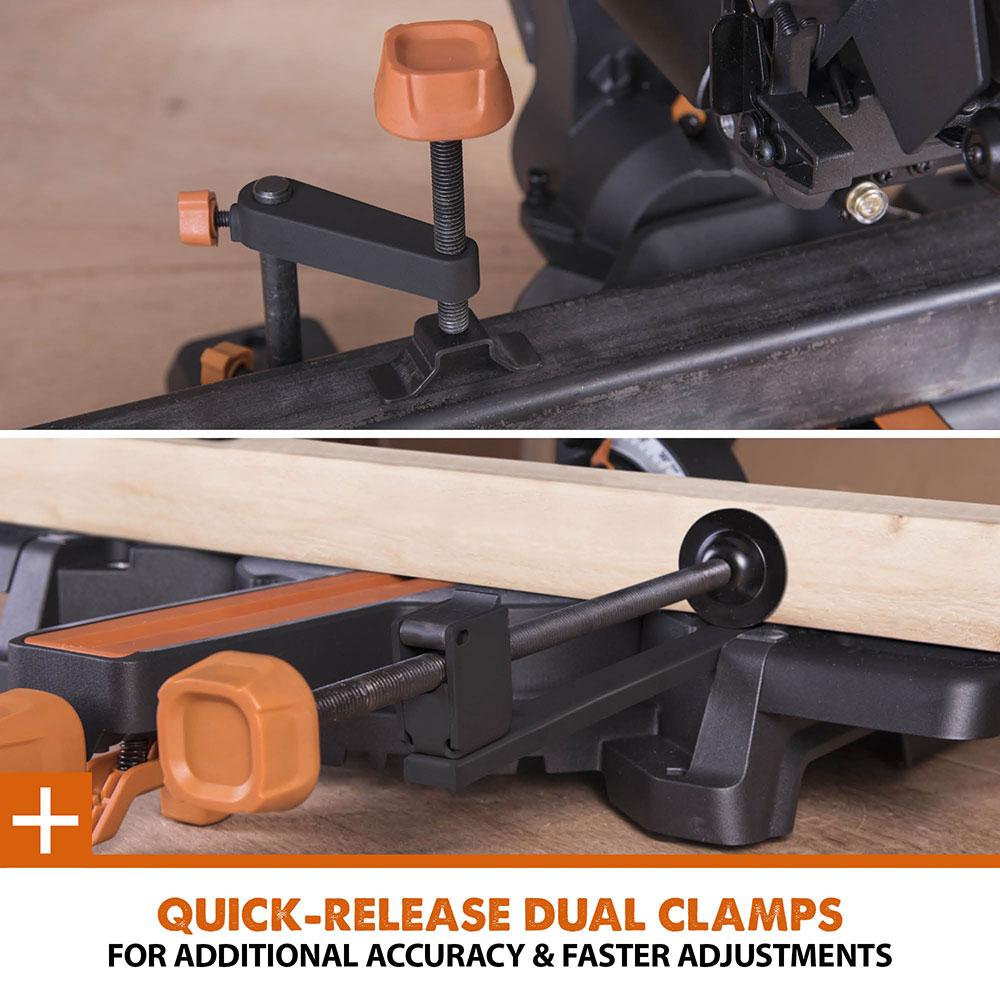

  • Dual Quick-Release clamps included for additional accuracy & faster adjustments.

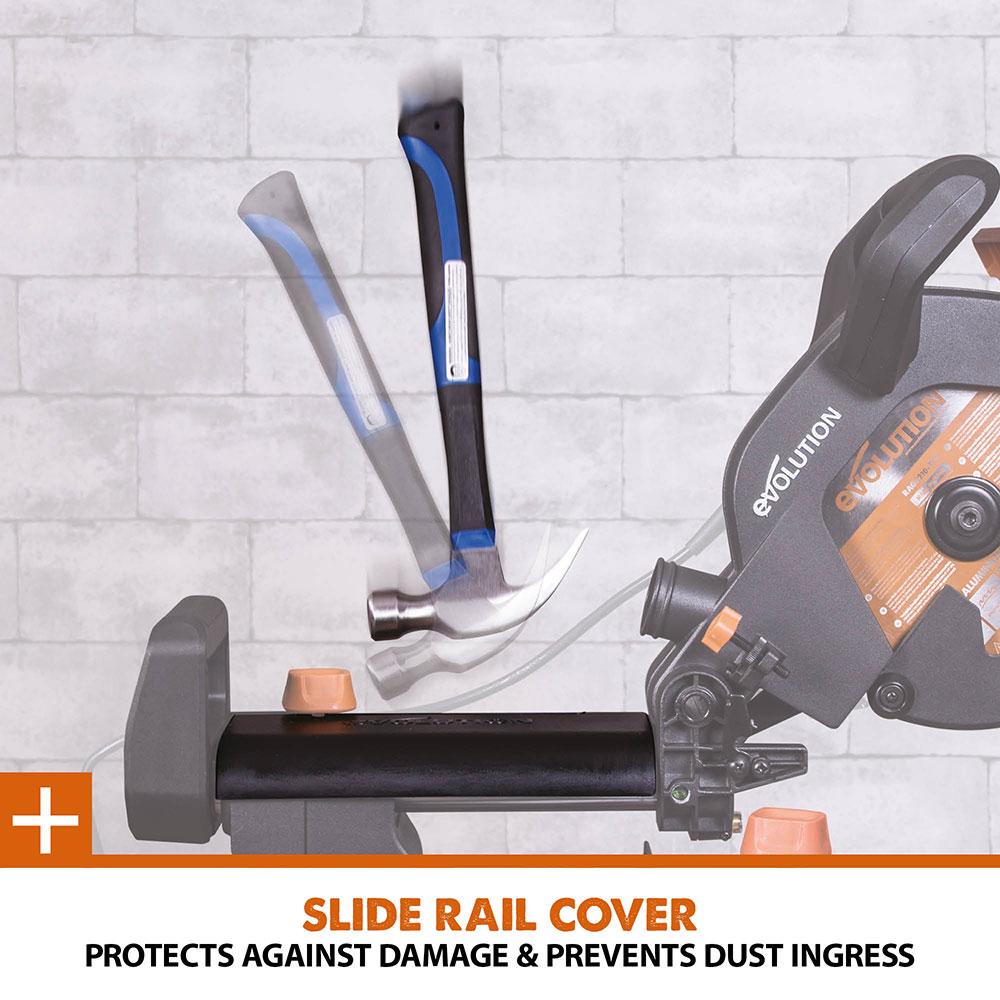

  • Slide rail protector included protects against damage & prevents dust ingress.

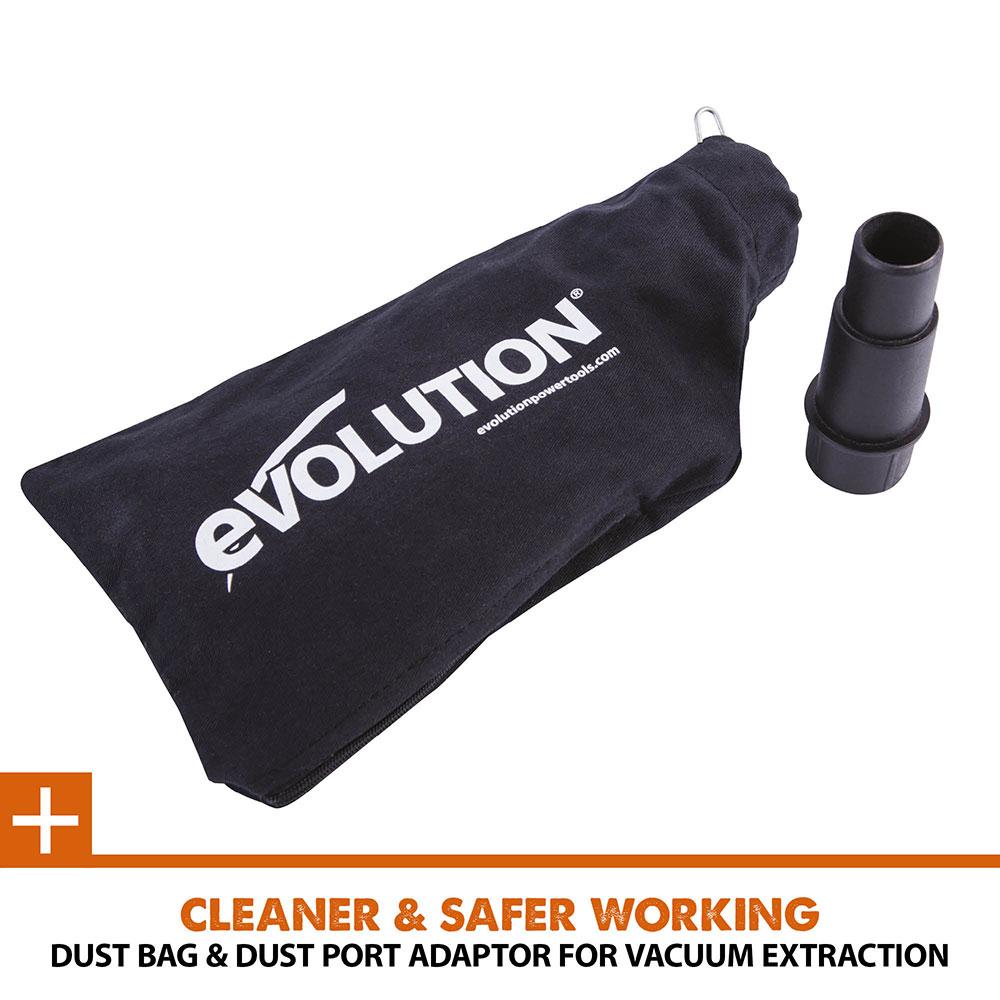

  • Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.

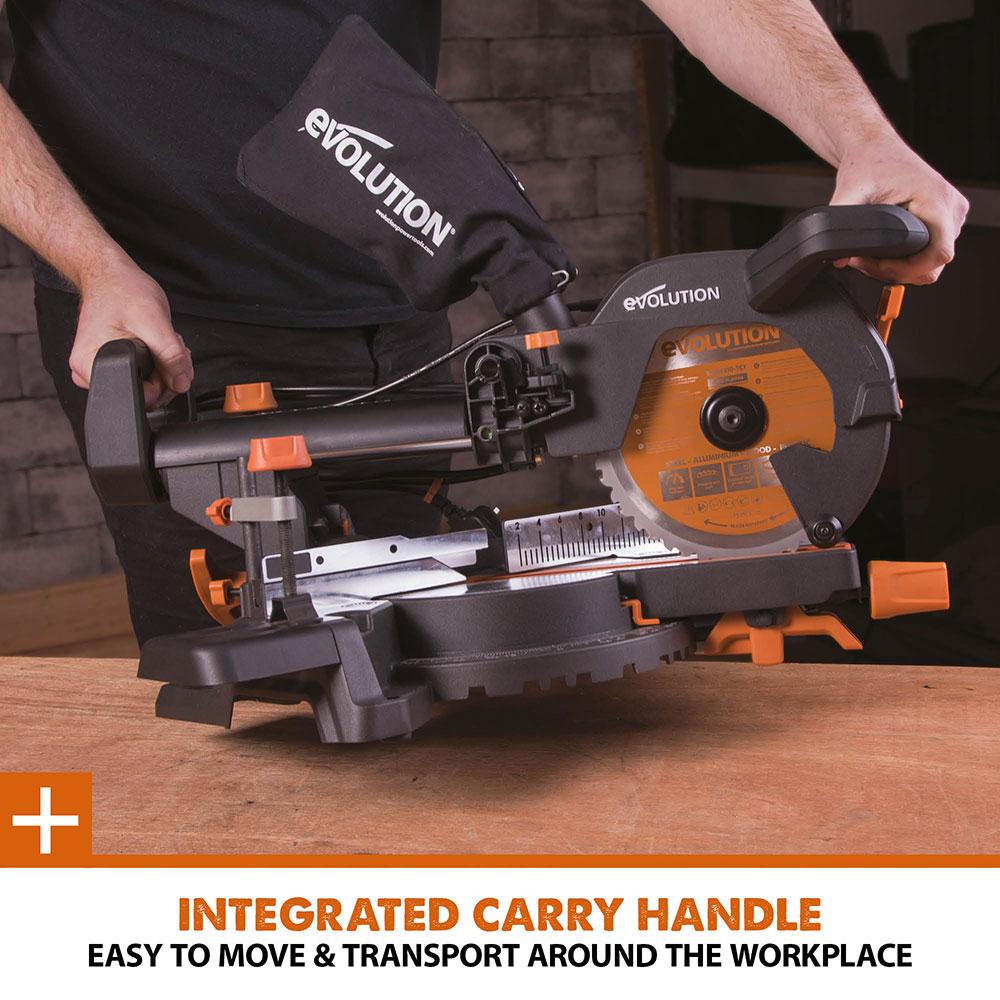

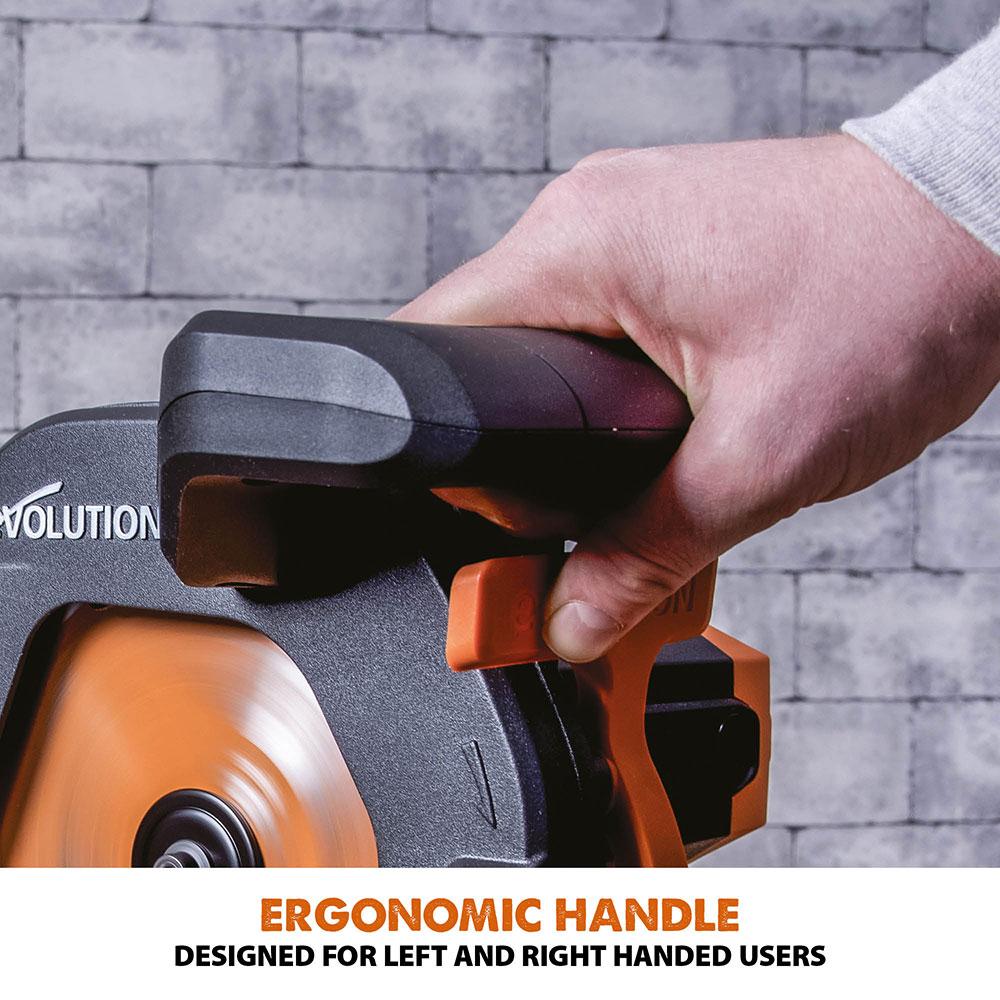

  • Integrated carry handles - easy to carry & transport around the workplace.

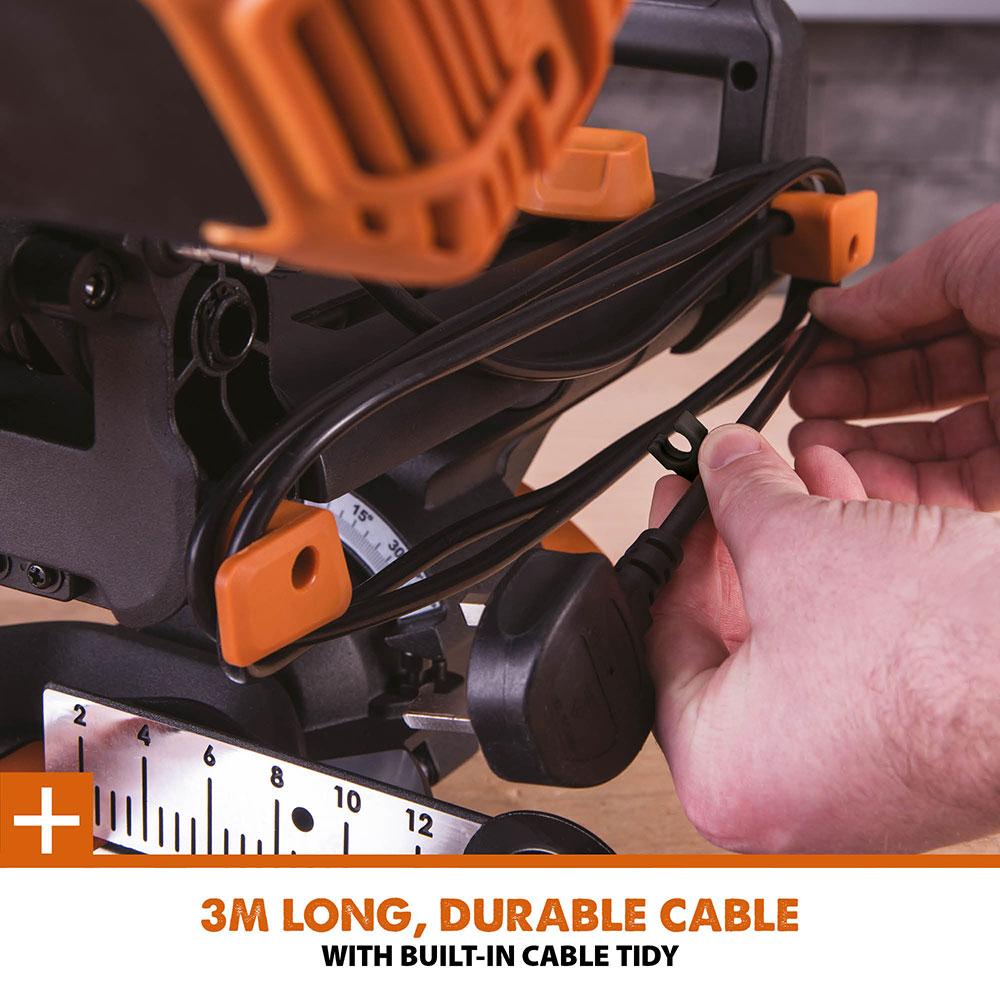

  • 3m power cable reduces the need for extension leads.

Mitre Saw Stand Features

  • Quick & easy set-up.
  • Easy to transport and store away.
  • Fits most brands of mitre saws.
  • Height adjustable rollers with built-in end stop. Perfect for repeat cutting.
  • Quick-release brackets for fast saw fitting and removal.
  • Support up to 3m long work-pieces and up to 150kg of weight.
  • 3 Year limited warranty.
Specifications +

Specifications

Mitre Saw

Motor (110V 50Hz): 1500W
Motor (240V 50Hz): 1500W
Speed No Load: 3750 min-1
Max. Mitre: 50° - 50°
Max. Bevel (Left): 45°
Blade Guard: Cast Aluminium
Cable Length: 3m
Blade Dia.: 210mm
No. of Teeth: 24
Bore: 25.4mm
Kerf: 1.7mm

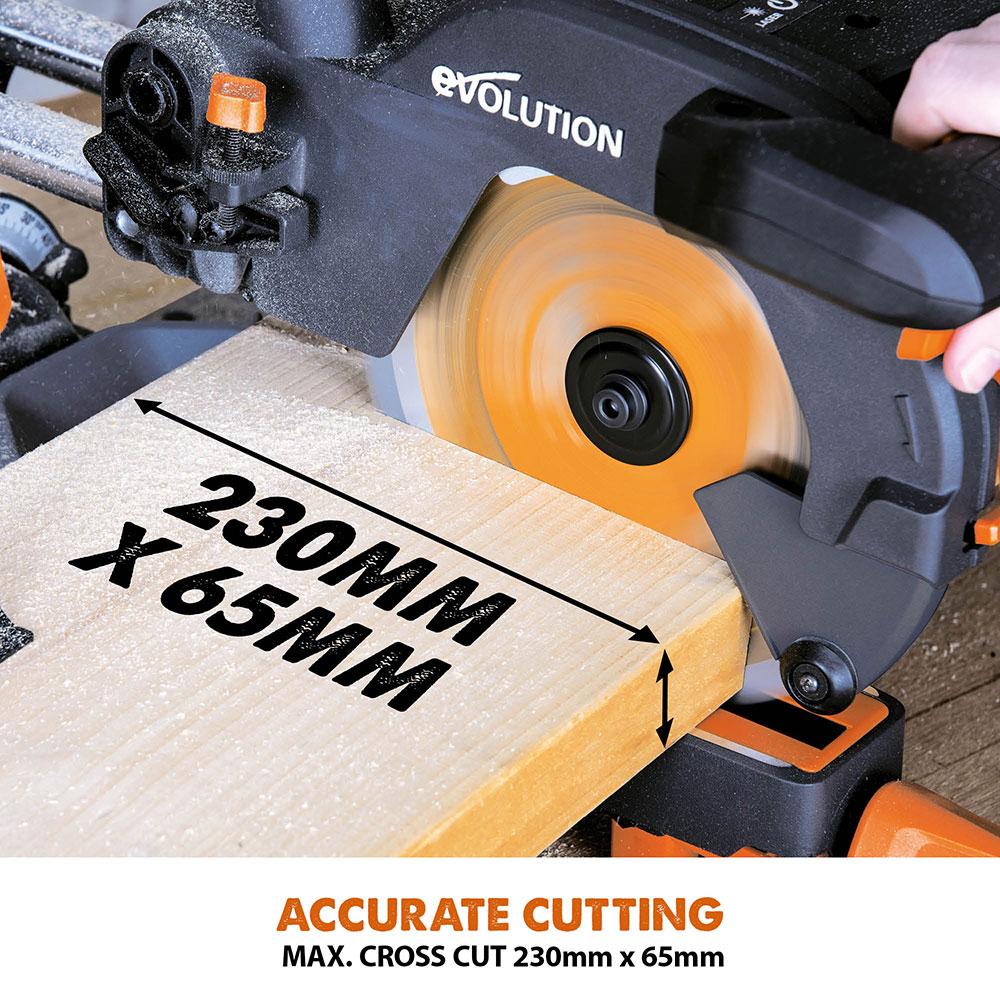

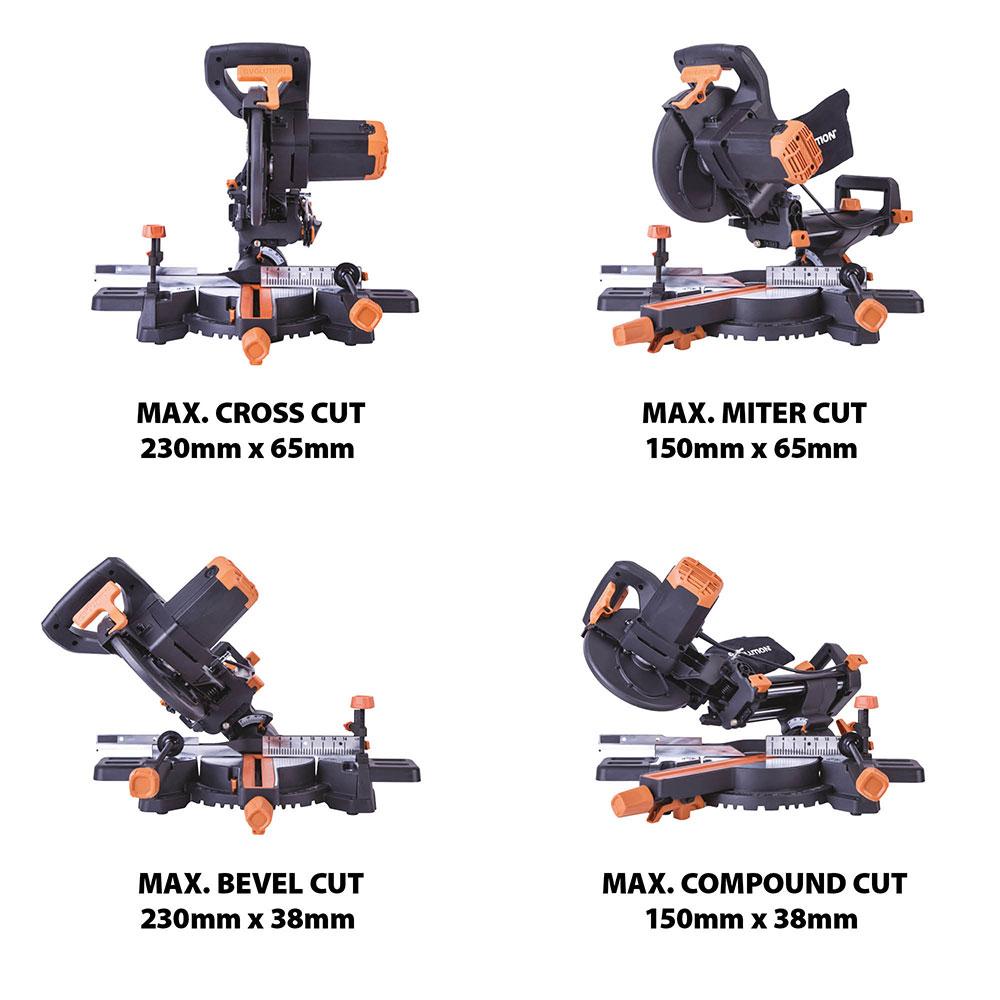

Max. Cross Cut (0° x 0°): 230mm x 65mm
Max. Bevel Cut (0° x 45°): 230mm x 38mm
Max. Mitre Cut (45° x 0°): 150mm x 65mm
Max. Compound Cut (45° x 45°): 150mm x 38mm
Mild Steel Plate
(Max. Thickness):
6mm
Mild Steel Box Section
(Max. Wall Thickness):
3mm
Product Dimensions: 314mm x 575mm x 610mm (with saw head down)
Packaging Dimensions: 475mm x 315mm x 435mm
Product Weight: 11.2 kg
Packaged Weight: 13.8 kg
Sound Pressure Level LPA: 110V: 95.7 dB(A) / 220-240V: 96.5dB(A)
Sound Power Level LWA: 110V: 108.7 dB(A) / 220-240V: 109.5dB(A)
Uncertainty K:

KpA & KWA: K=3 dB(A)

Laser Class: Class 2
Laser Source: Laser Diode
Laser Output Power (Max): <1mW
Wave Length (Nm): 650

Mitre Saw Stand

Max. Length Material Support: 3m
Max. Load: 150kg
Max. Saw Mounting Hole Spacing: 680mm x 330mm

Dimensions & Weight

Items Supplied

Collapsed Product Dimensions: 1000mm x 280mm x 230mm
Assembled Product Dimensions: 1100mm x 600mm x 750mm
Arms Fully Extended Product Dimensions: 1970mm x 600mm x 750mm
Packaging Dimensions: 945mm x 265mm x 300mm
Product Weight: 15.5kg
Packaged Weight: 17.65kg
24T Multi-Material TCT Blade
3pc Hold Down Clamp
Machine Table Extensions
Dust Collection Bag
Dust Port Adaptor
Double Ended Hex Key (M6 & M4)
Laser Lens Cap
Sliding Rail Protector
Front Clamp
Rear Carry Handle
3m Cable
