Evolution R255DCT Spare Parts

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call. They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.

* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.
Evolution R255DCT Spare Parts - Evolution Power Tools UK
Evolution R255DCT Spare Parts

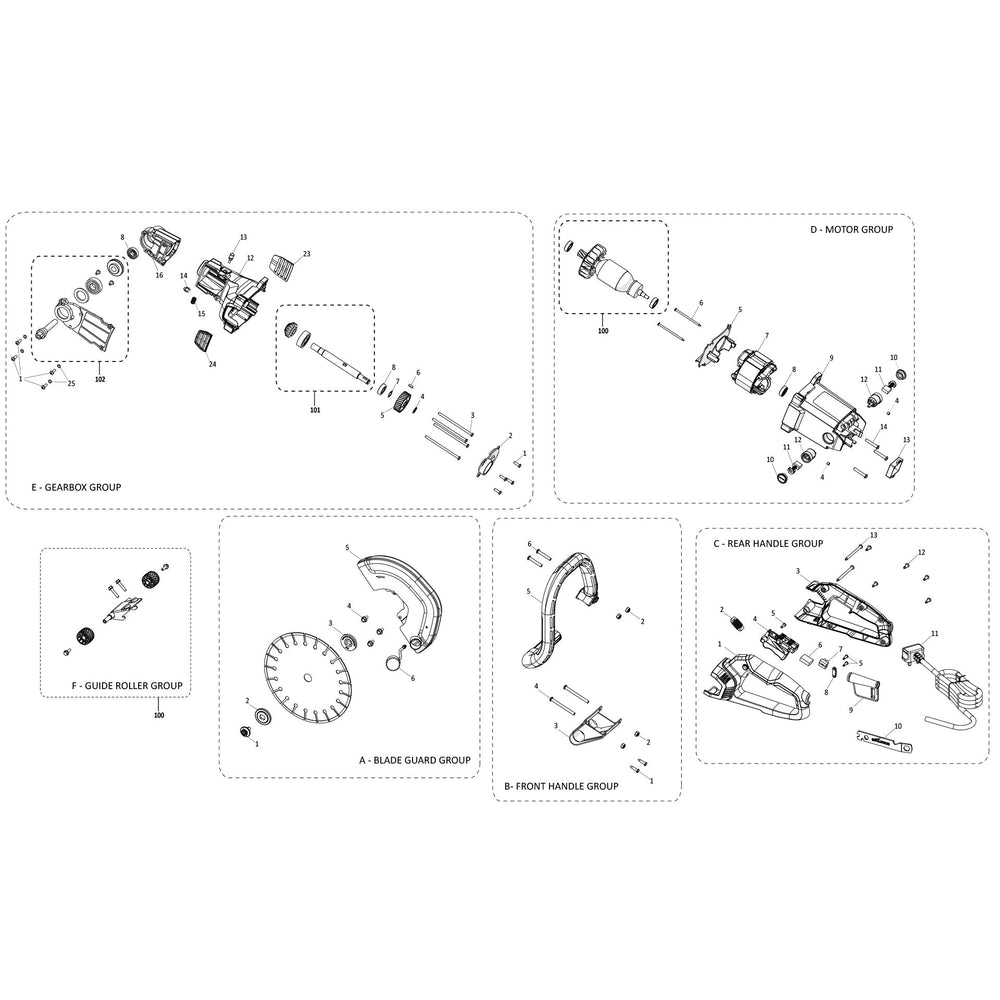

Parts List:

Please enter a search term before proceeding.
A01 - Blade Bolt x1 (# 012-0211)
£2.98

Out of Stock

A02 - Flange Outer 45Mm Pressed x1 (# 010-0114-A1)
£6.98

In Stock

A03 - Flange Inner 45Mm Pm x1 (# 010-0113-A1)
£5.98

In Stock

A05* - 255Mm Blade Guard x1 (# 010-0150-A1)
£41.98

Only 4 left

A06 - Dust Port Cap x1 (# 010-0162-A1)
£2.98

In Stock

B03 - Skid Plate x1 (# 010-0157-A1 )
£3.98

Out of Stock

B05 - Front Bale Handle x1 (# 010-0159-A1 )
£4.98

Out of Stock

C01 - Rear Handle Lh x1 (# 010-0152-A1)
£8.98

Only 10 left

C02 - Rf Choke x1 (# 010-0146)
£2.98

Out of Stock

C03 - Rear Handle Rh x1 (# 010-0153-A1)
£8.98

Only 10 left

C04 - Trigger Switch x1 (# 012-0135)
£24.98

Out of Stock

C06* - Capacitor 220-240V x1 (# 010-0118)
£2.98

Only 20 left

C07 - Wire Block Connector x1 (# 010-0120)
£2.98

Only 20 left

C08 - Wire Restraint Saddle x1 (# 012-0174-A1)
£2.98

Out of Stock

C09* - Cable Strain Relief x1 (# 010-0156-A1)
£2.98

Only 1 left

C10 - Spanner x1 (# 012-0176-A1)
£2.98

Out of Stock

C11* - Cable Uk 230V 4M x1 (# 010-0126)
£24.98

Only 6 left

D05 - Motor Fan Baffle x1 (# 010-0116-A1)
£2.98

Only 9 left

D07* - Field Coil 2000W 220-240V x1 (# 010-0135)
£57.98

In Stock

D08 - Rear Motor Bearing Bush x1 (# 012-0173-A1)
£3.48

Out of Stock

D09 - Motor Housing x1 (# 010-0151-A1)
£34.98

Only 20 left

D100 - 2000W Armature Assembly 230V Eu/Uk/Aus x1 (# 010-0050)
£84.98

Only 19 left

D10 - Brush Holder Screw Cap x2 (# 010-0160)
£2.98

In Stock

D11* - Carbon brush x2 (# 012-0172-A1)
£12.48

Out of Stock

D12 - Brush Holder x2 (# 012-0168-A1)
£10.98

Out of Stock

D13* - Soft Start PCB 220-240V x1 (# 010-0137)
£36.98

Only 7 left

E02 - Helical Gearbox Cover x1 (# 010-0103-A1)
£2.98

Only 10 left

E05 - Helical Gear x1 (# 010-0106-A1 )
£4.98

Out of Stock

E06 - Key Woodruff 4X4X12 x1 (# 010-0139)
£2.98

Only 20 left

E08 - 6001-2Z Bearing Ball 28Od 12Id 08W x2 (# F-B-6001-2Z)
£8.98

In Stock

E101 - Drive Shaft Assembly x1 (# 010-0060)
£33.98

Only 10 left

E102 - Bevel Gearbox Assembly x1 (# 010-0061)
£46.98

Only 10 left

E12 - Helical Gearbox x1 (# 010-0101-A1)
£33.98

Only 9 left

E13 - Arbor Lock Pin x1 (# 010-0111-A1)
£2.98

Only 20 left

E15 - Arbor Lock Spring x1 (# 012-0113-A1)
£2.98

Out of Stock

E16 - Bevel Gearbox x1 (# 010-0102-A2)
£23.98

Only 10 left

E23 - Front Vent Left x1 (# 010-0163)
£2.98

Only 20 left

E24 - Front Vent Right x1 (# 010-0164)
£2.98

Only 20 left

F100 - Trolley Assembly x1 (# 010-0172)
£14.98

In Stock

Cant find what you are looking for?  Contact Us Give us a call on:  +44 (0)114 251 1022
