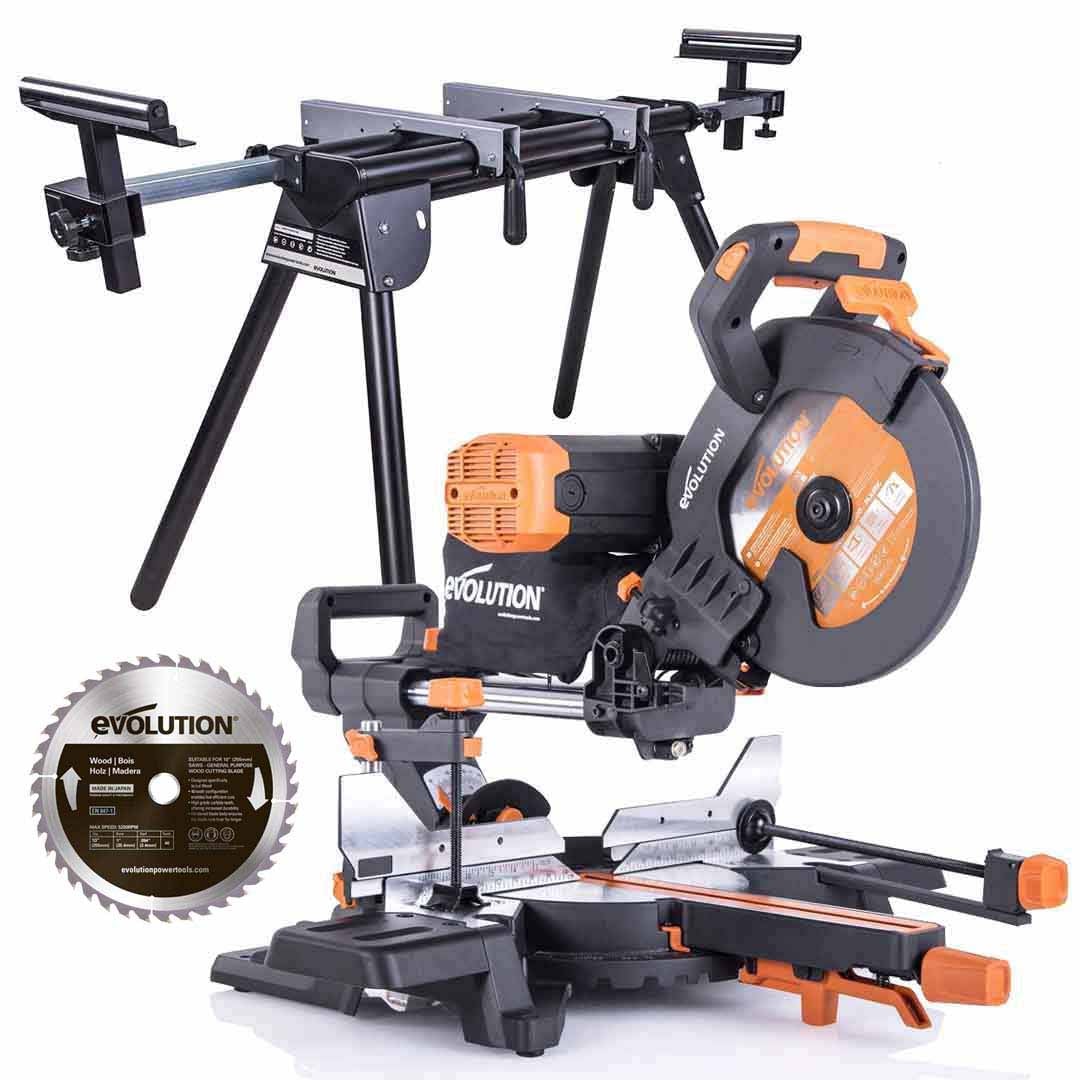

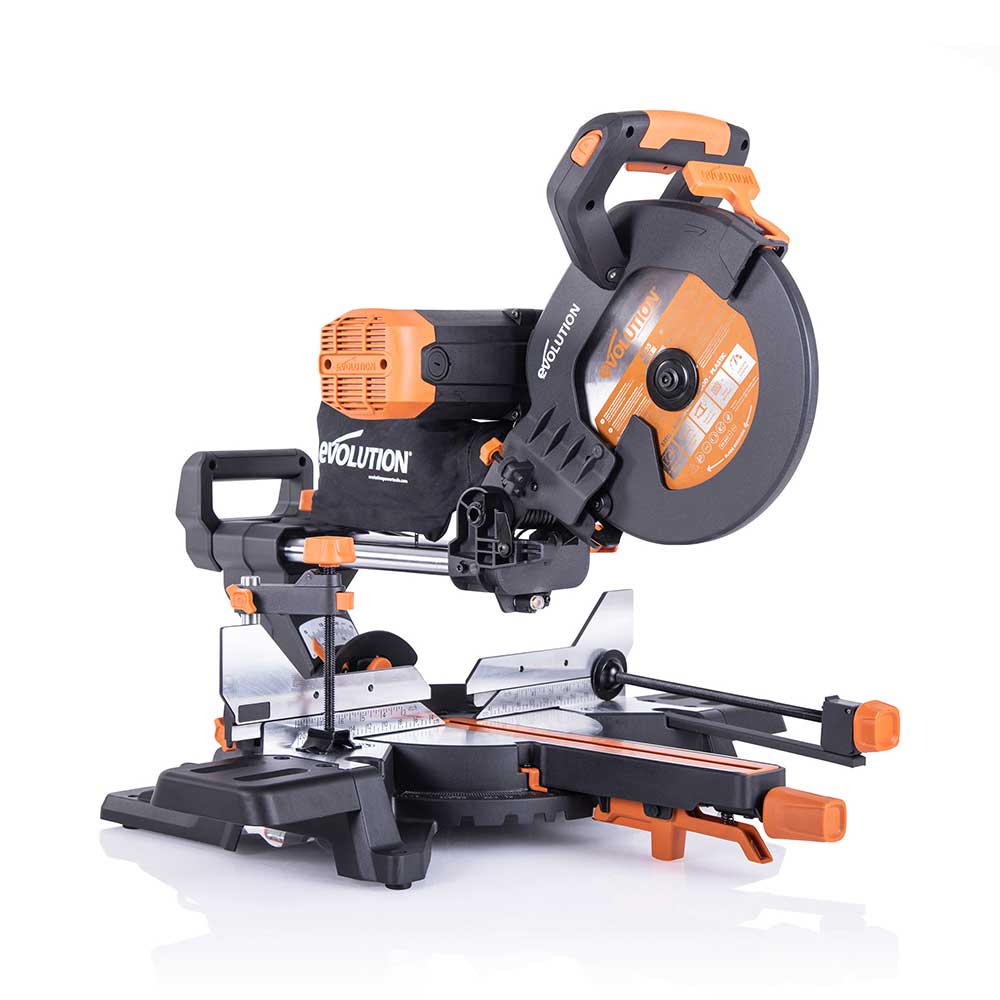

Evolution R255SMS-DB+ 255mm Double Bevel Mitre Saw & Stand Bundle
230V / Includes Extra Wood Blade
Evolution R255SMS-DB+ 255mm Double Bevel Mitre Saw & Stand Bundle
SKU: 053-0001B+005-0001
EAN/UPC: 0849713043696
£394.98
Pay-In-3 :
£131.66
per month
Pay-In-12 :
£32.91
per month with Iwoca Pay
Free delivery, geographic exclusions apply please see shipping page for details. Please note: Discount codes may not be valid on some bundles, subscriptions, or sale items. Certain combinations of discount codes and promotions and giveaways cannot be used in a single order.
Frequently Bought Together
section content
- Description
- Specifications
- Related Blades
- Buy Now, Pay Later
- Downloads
Description
With a 255mm blade and a huge 90mm x 300mm crosscut capability the R255SMS-DB+ is the most capable and powerful Mitre Saw in the Evolution line-up. With 2,000 watts of power and a multi-material blade that slices through wood, plastic, metal, and even reclaimed wood with embedded nails it offers best in class power and versatility.
Packed with features this double bevel mitre saw cuts 45 ° bevels in both directions. An integrated laser cutting guide and positive bevel stops provide accuracy for every cut. A durable die-cast aluminium base is tough enough to handle any material. With great ergonomics, single-handed cutting action and easy access storage tools and workpiece clamps the R255SMS-DB+ is the ultimate trade and workshop mitre saw, you can pay more but you can't buy better.
*The R255SMS-DB is available in two versions. One version comes with our 28T Japanese carbide-tipped Multi-material cutting blade and the second version also includes an additional 40T carbide-tipped Wood Blade for when you need the ultimate precision. Choose your preferred option.
Features

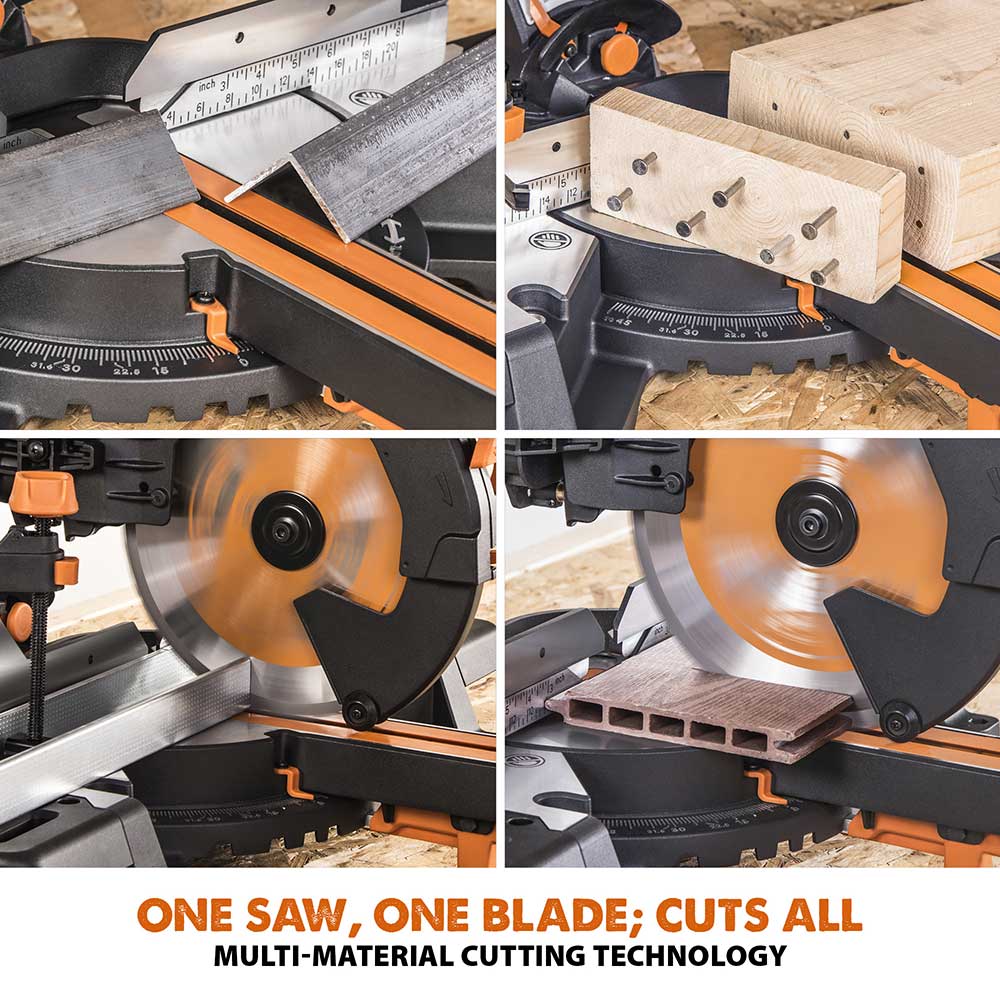

- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.

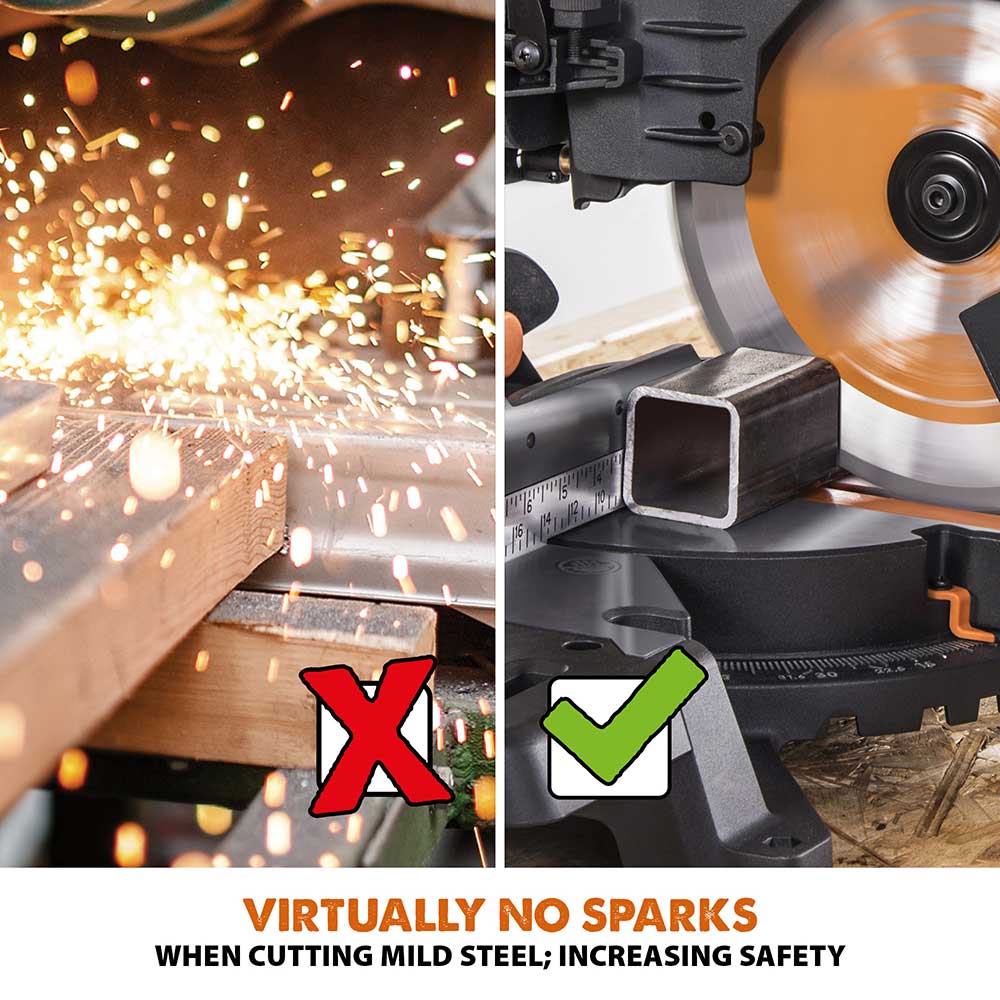

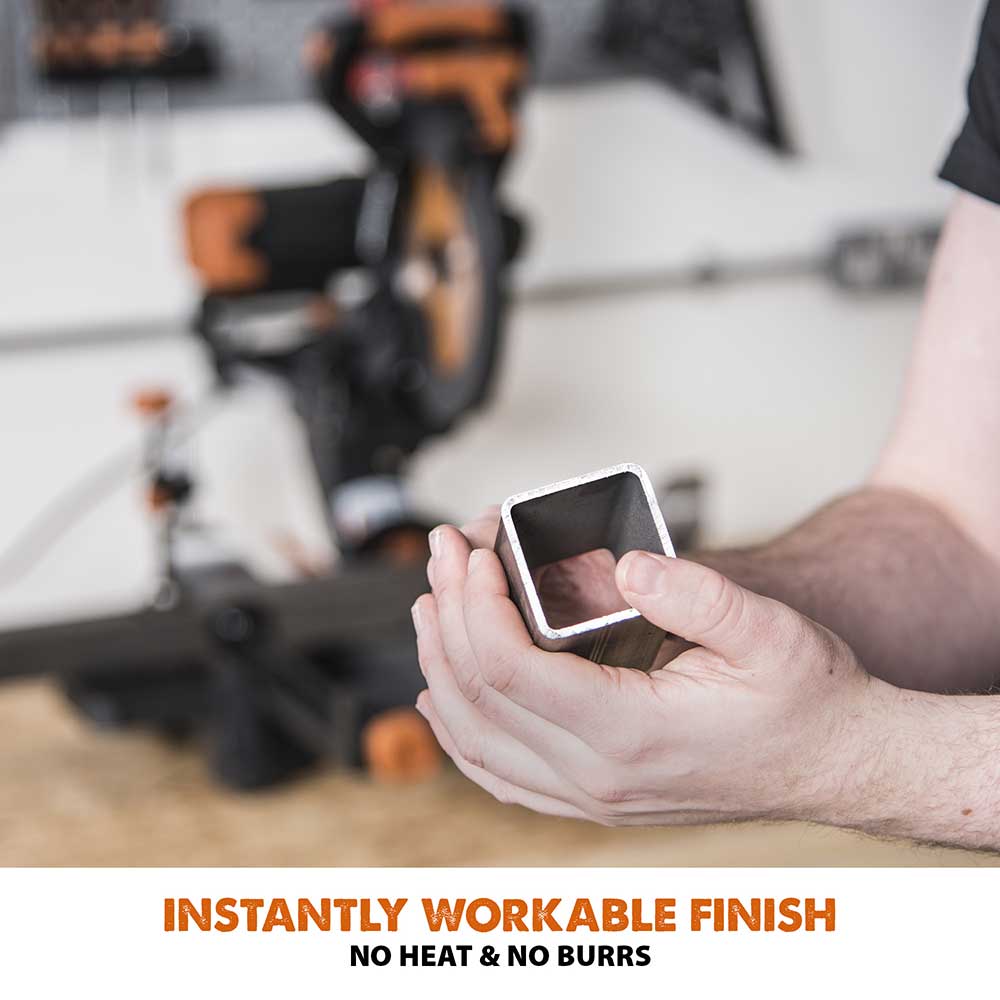

- Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs & virtually no sparks.

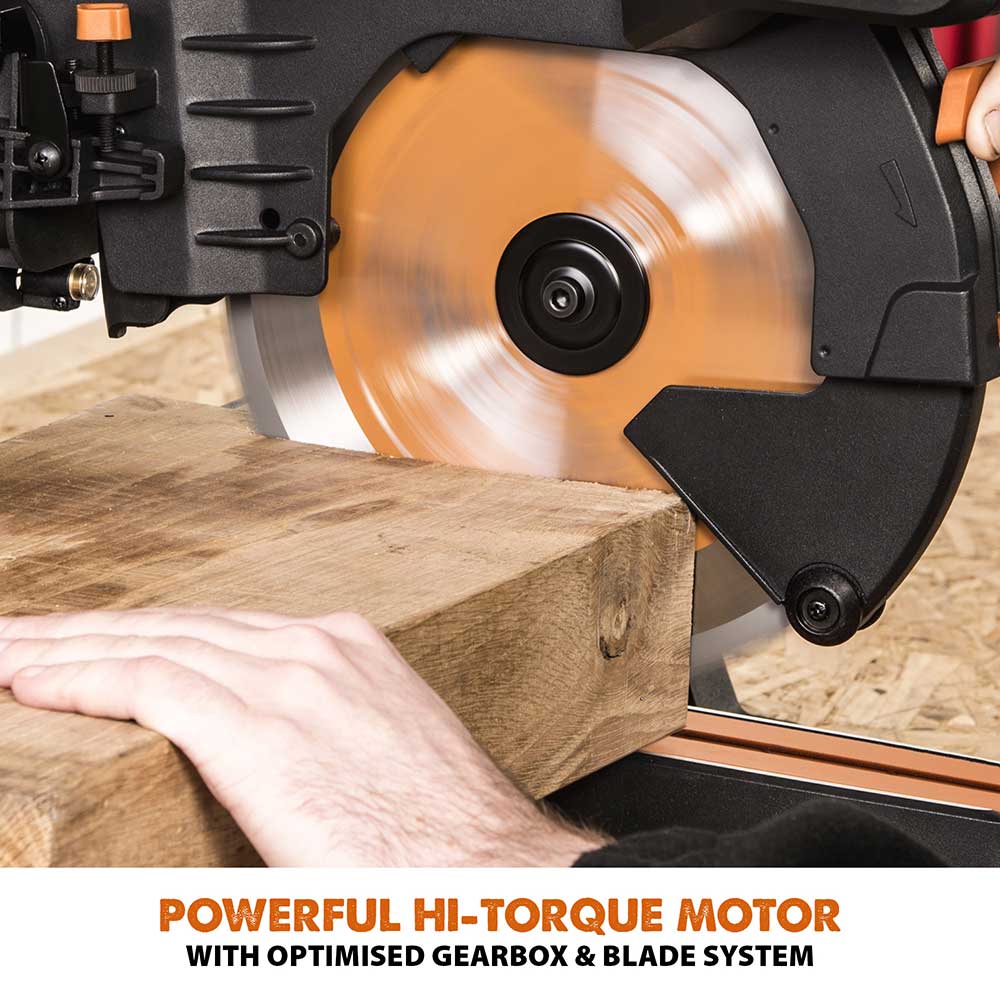

- Powerful 2000W (230v option), 1600W (110v option), hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
- Perform accurate Crosscuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.

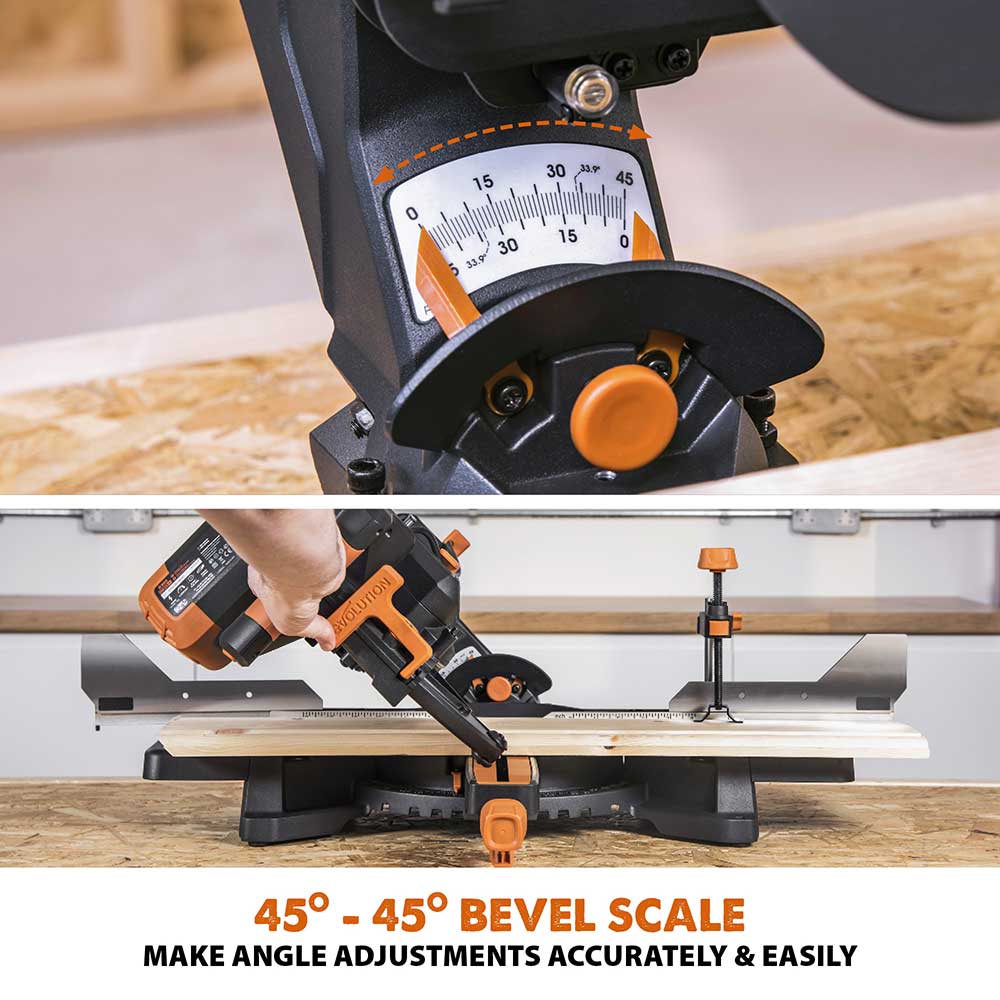

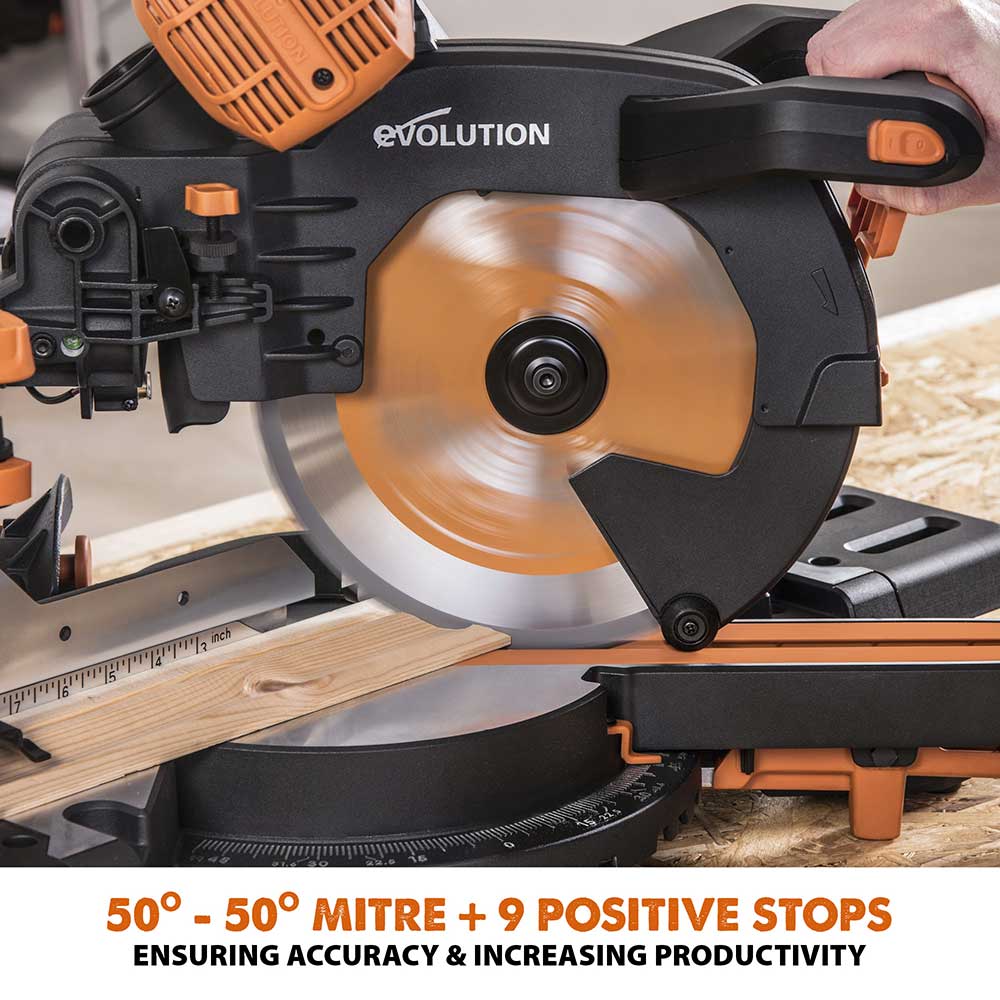

- Cut to within +/- 0.5˚ with 45° - 45° bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.

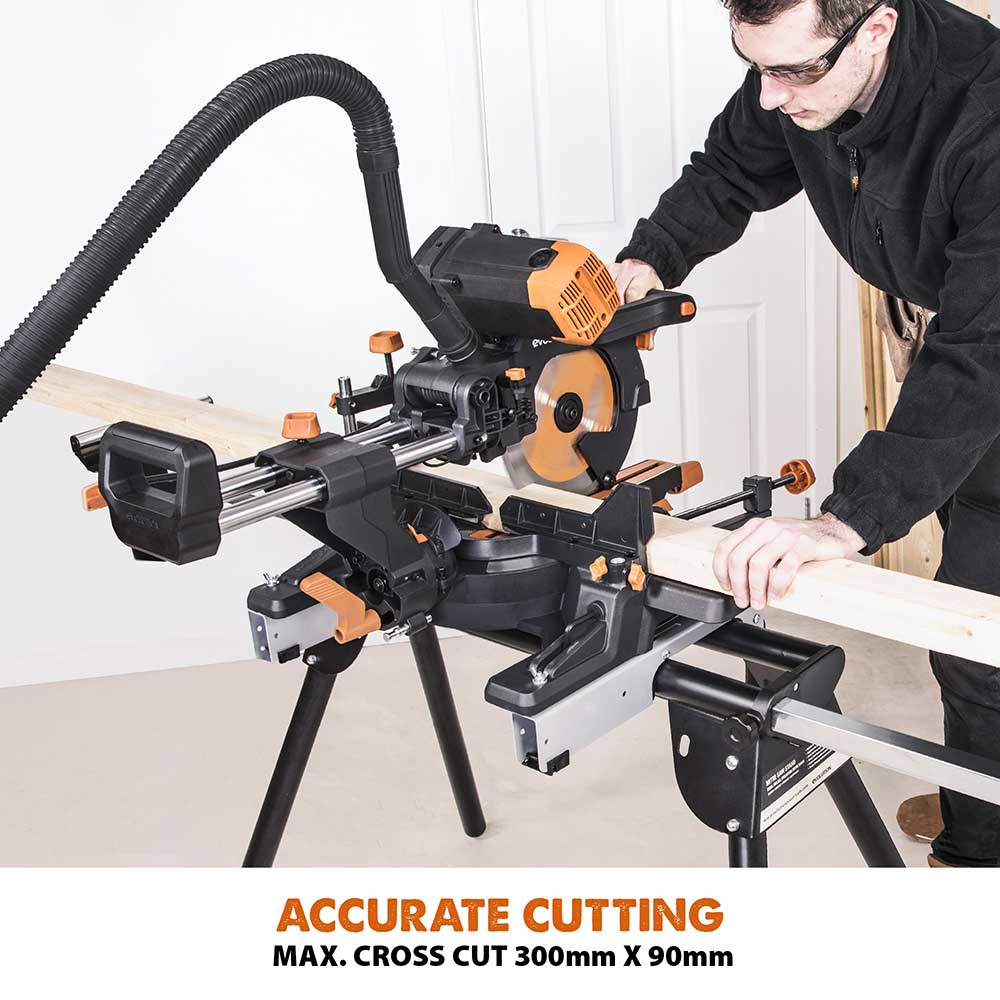

- An impressive 300mm x 90mm max. crosscut capacity enables you to cut through most framing beams.

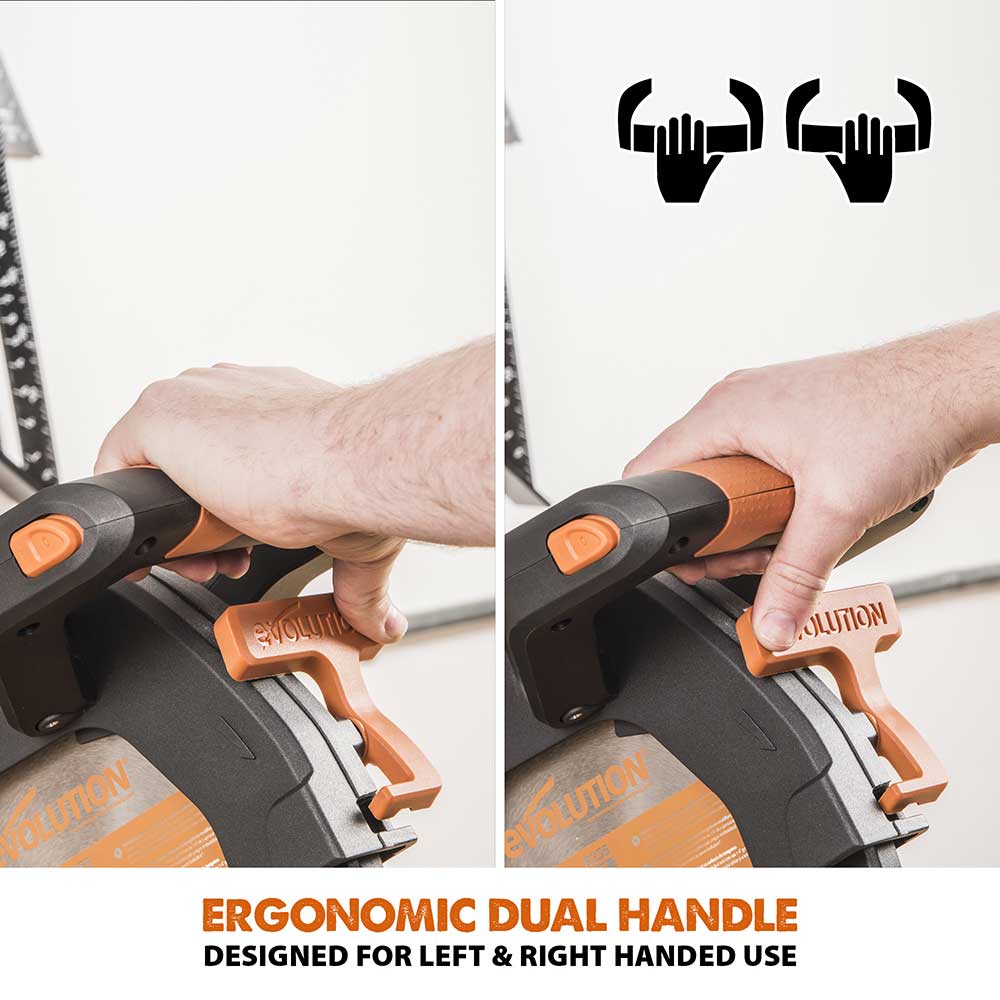

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
- Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.

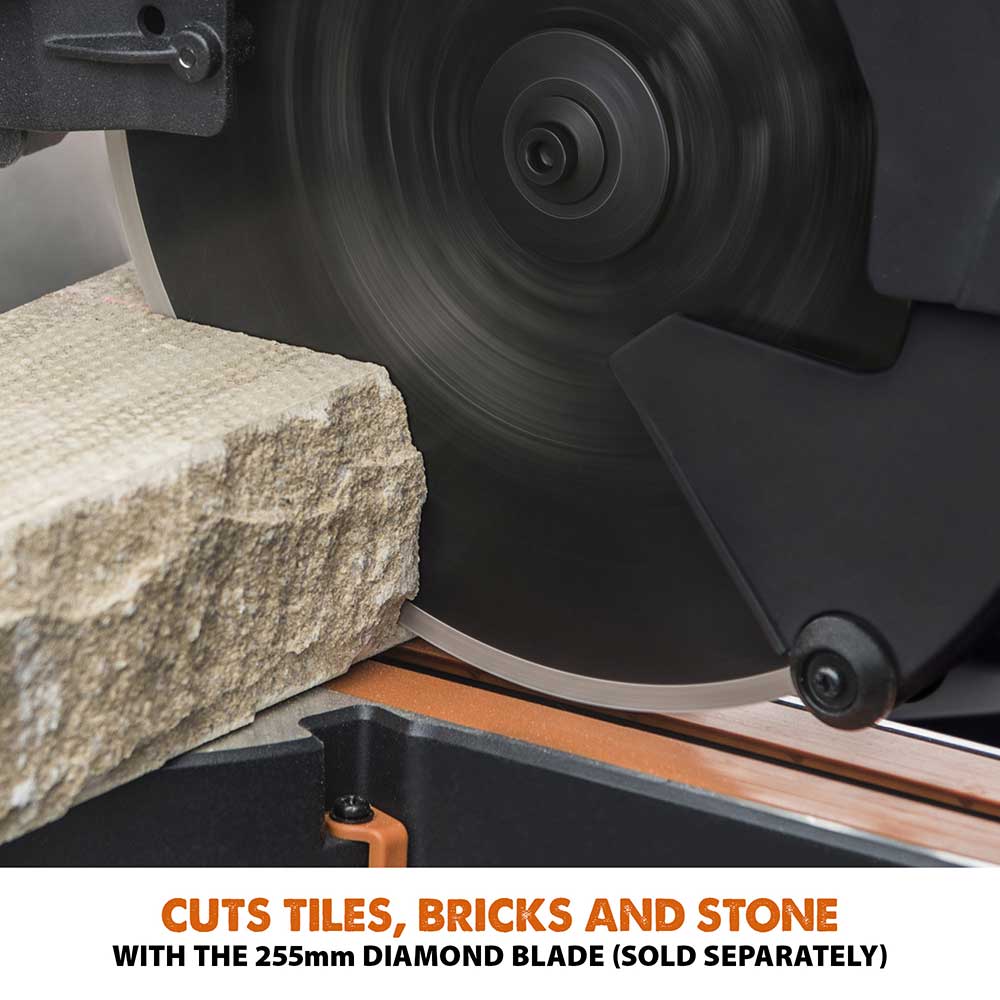

- The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- 3-year limited warranty.
PLUS+ Features
- Premium Japanese 28T Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.

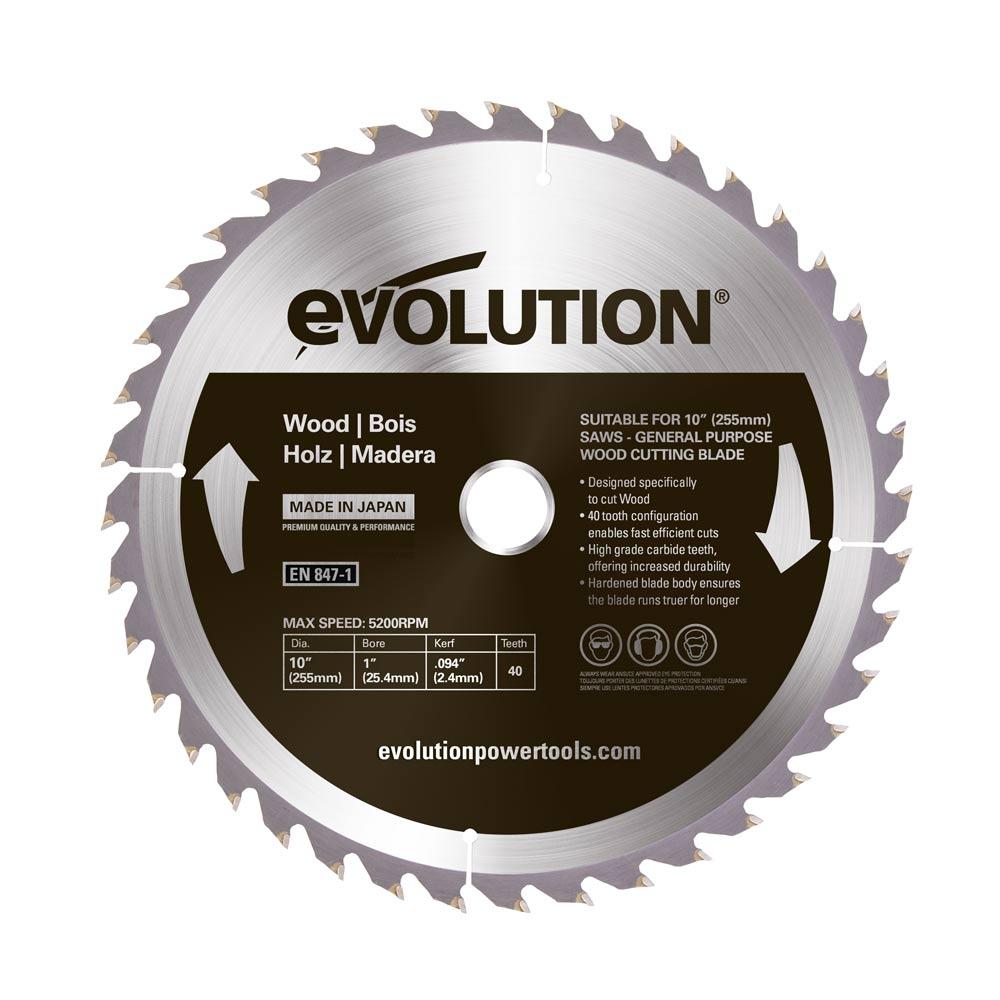

- Premium Japanese 40T Tungsten Carbide-Tipped (TCT) 255mm General Wood Blade for crosscut and ripping duty.

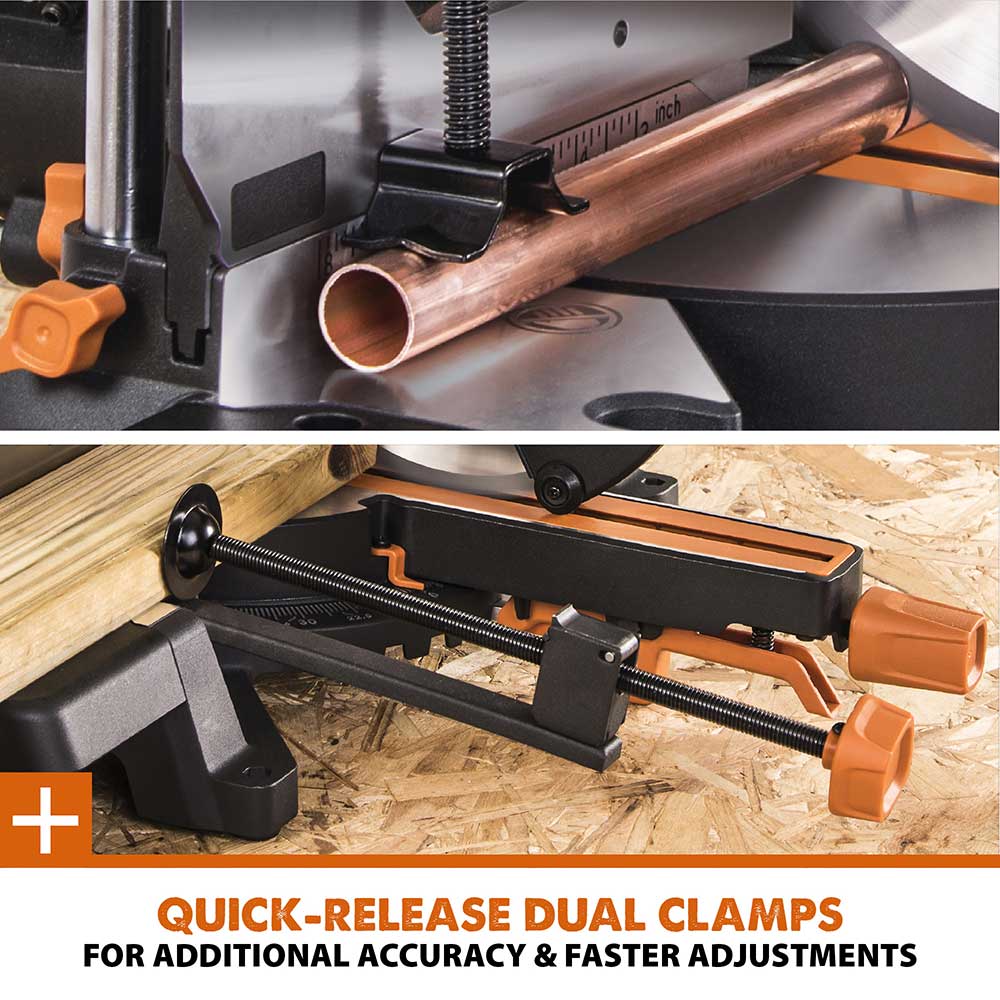

- Quick-Release top clamp included for additional safety and faster adjustments.
- Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright such as skirting and cornices.
- Laser-guided precision projects the cutting line on your workpiece for assisted straight-line cutting.

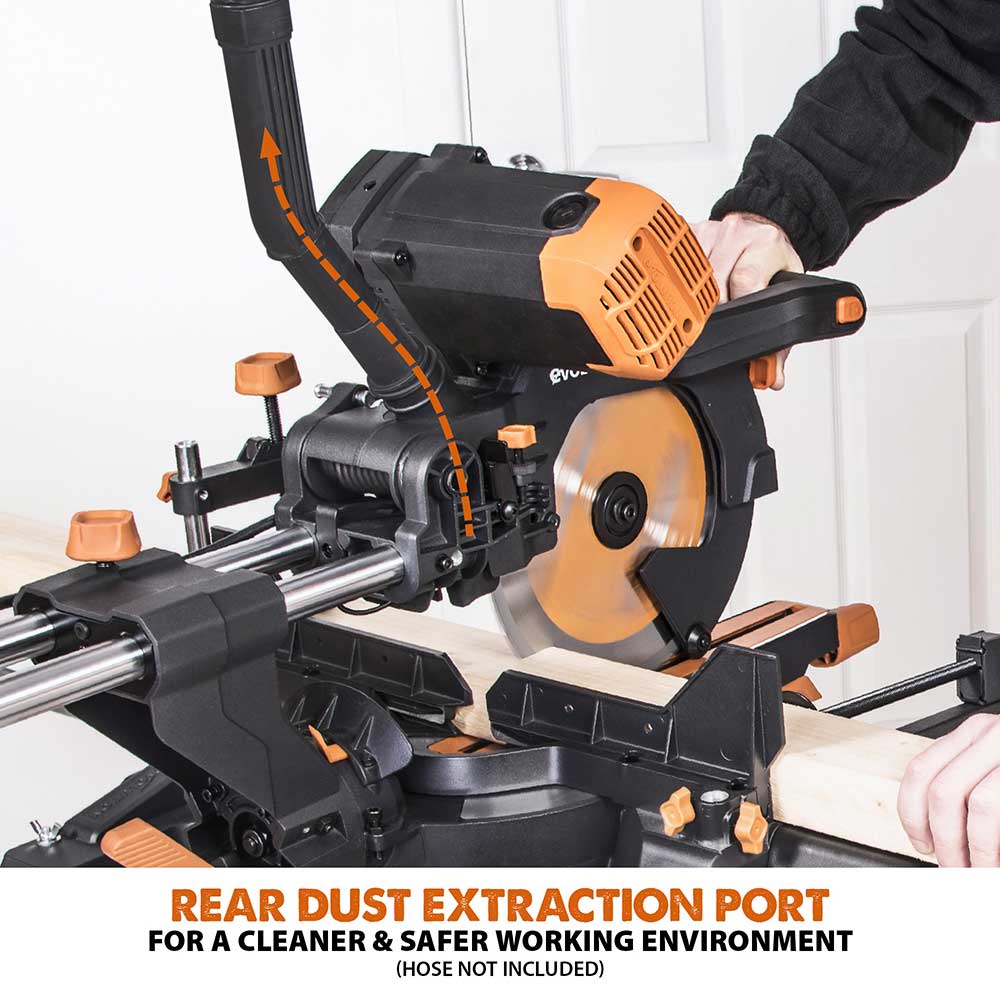

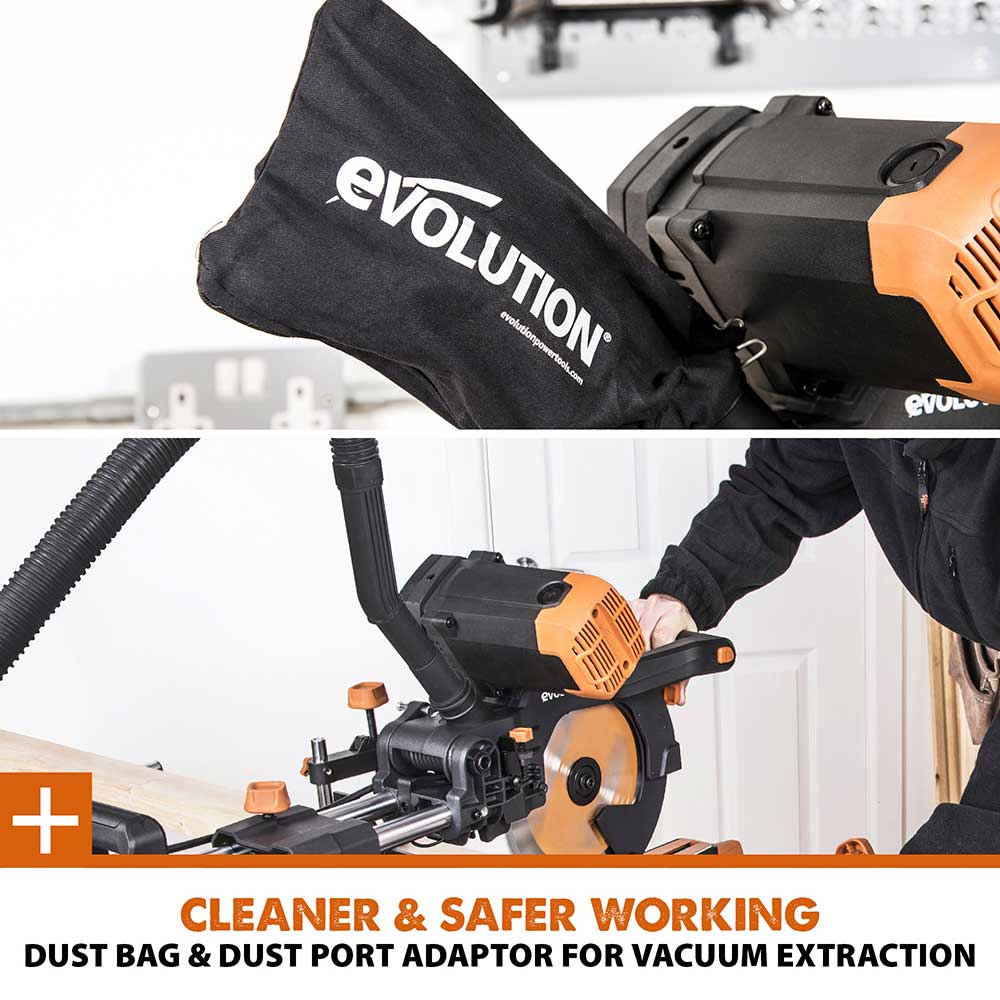

- Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.

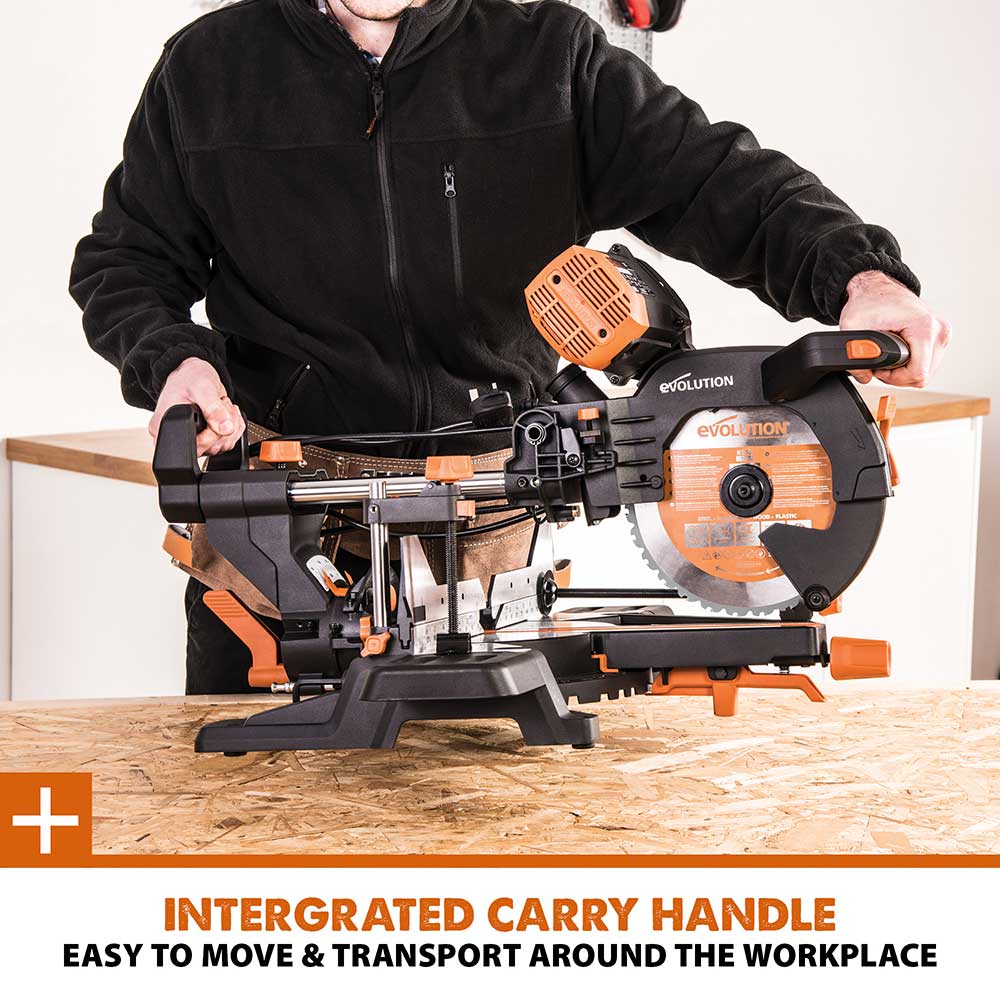

- Integrated carry handles - easy to carry and transport around the workplace.

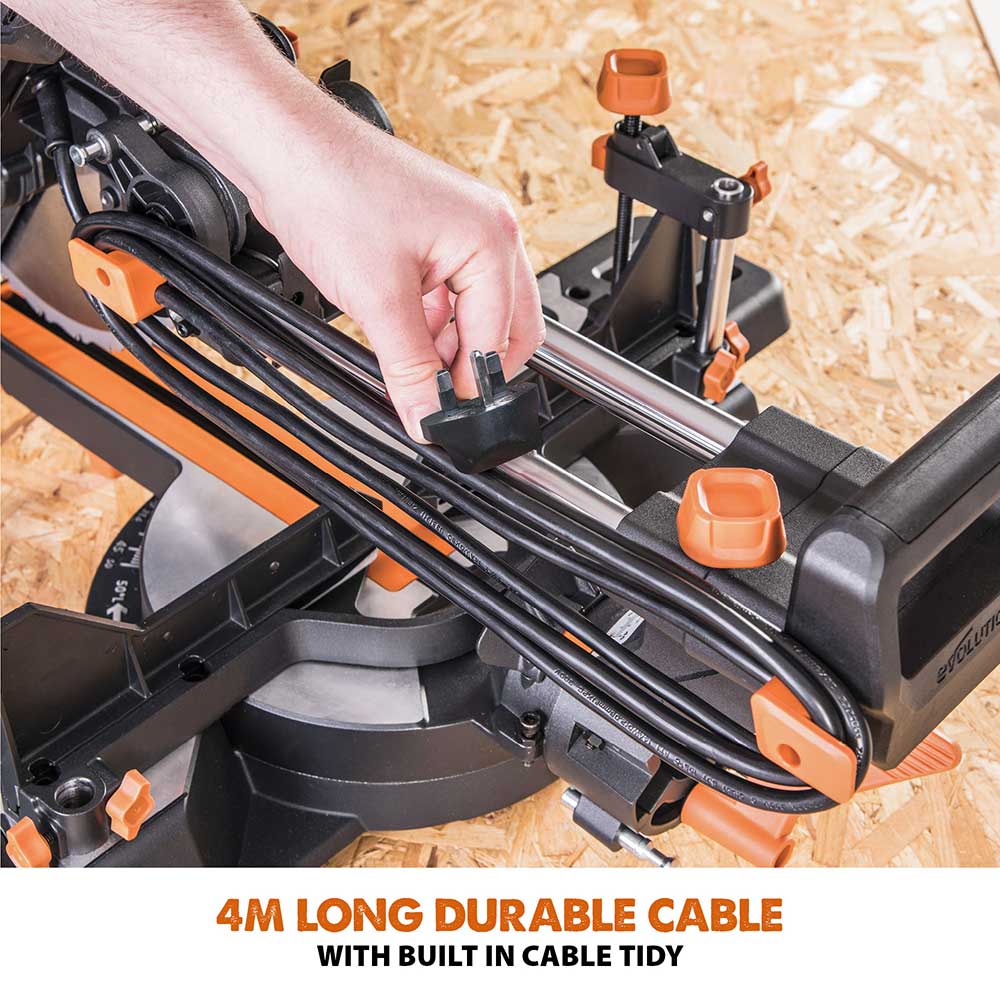

- 4m rubber power cable gives you the power and reach you need to get the job done.

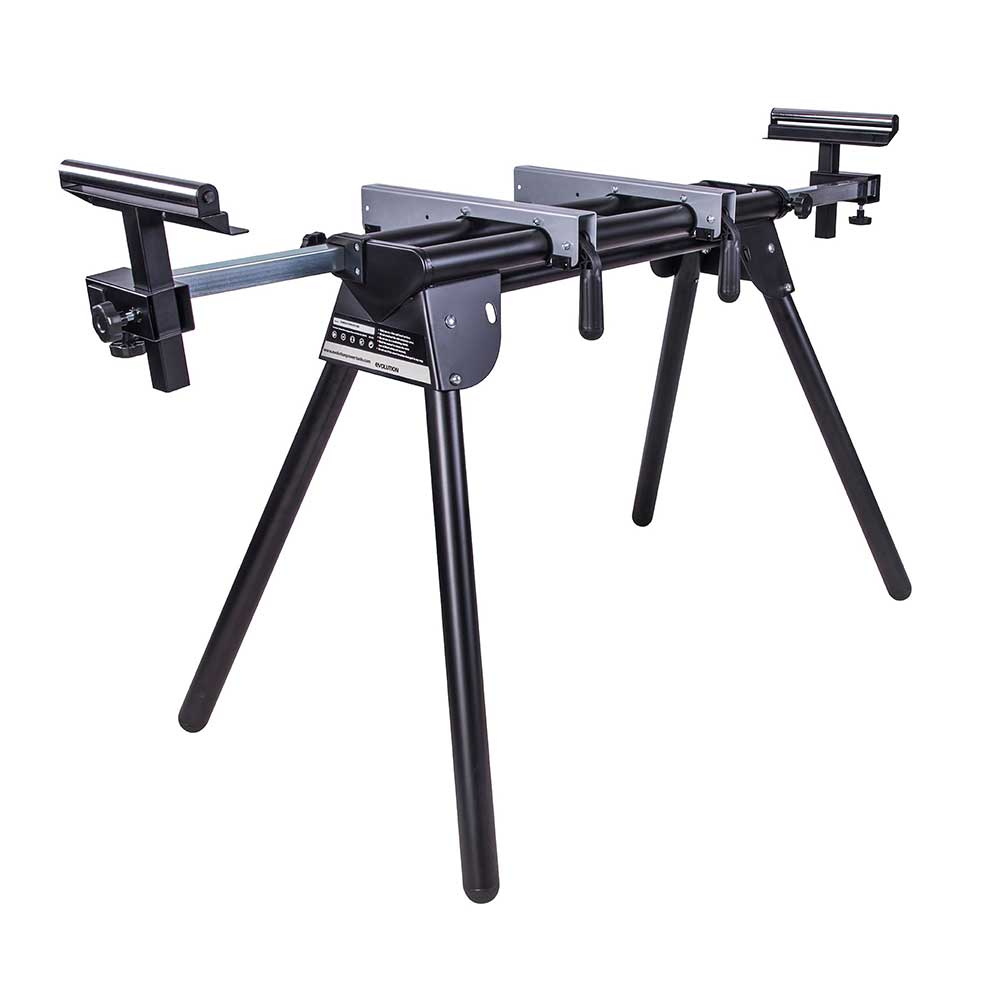

Mitre Saw Stand
This versatile and portable Mitre Saw Stand is perfect for home, workshop and on-site use. Weighing only 15.5kg it's light enough to be carried with one hand and, thanks to its folding legs and telescopic arms, folds down to 1000mm x 280mm x 230mm.

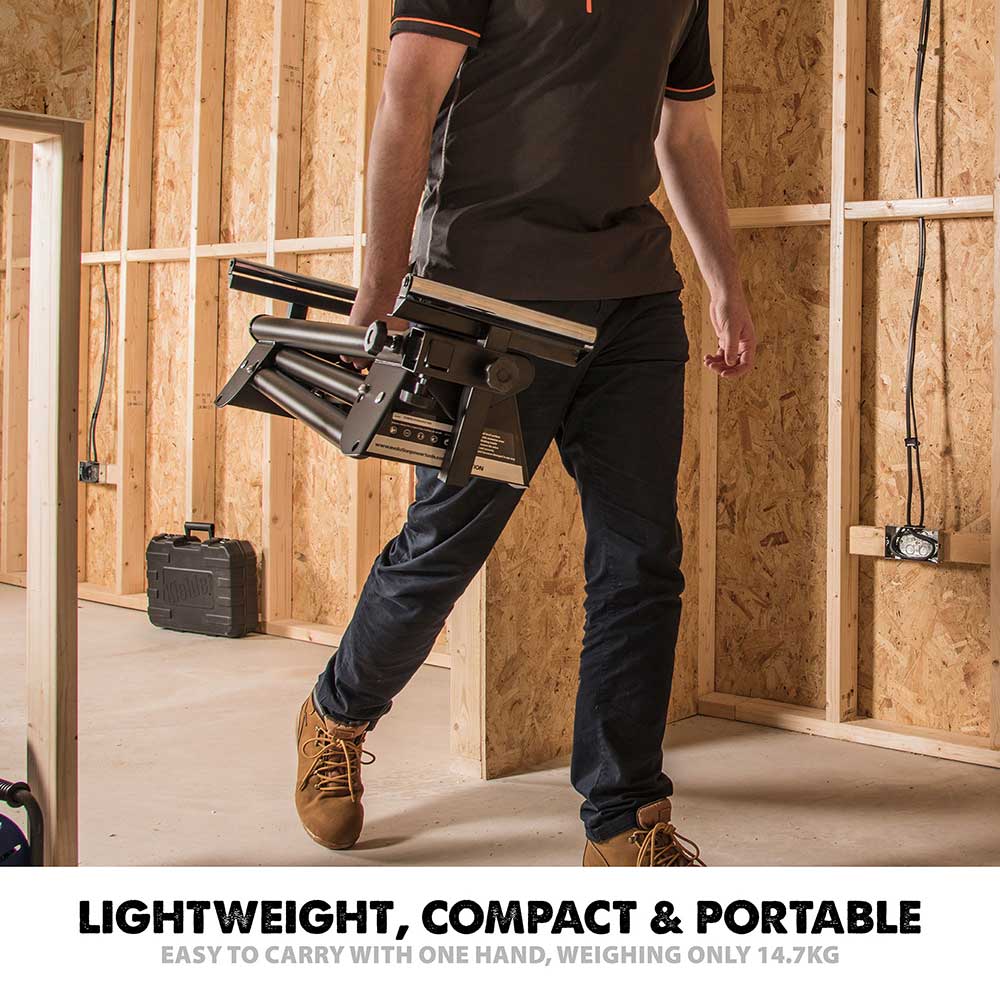

Despite being light and compact, the stand can safely support up to 150kg, and long work-pieces up to 3m in length on its extendable arms. The quick release mounting brackets allow the mounting of any saw with mounting holes up to 680mm x 370mm apart.

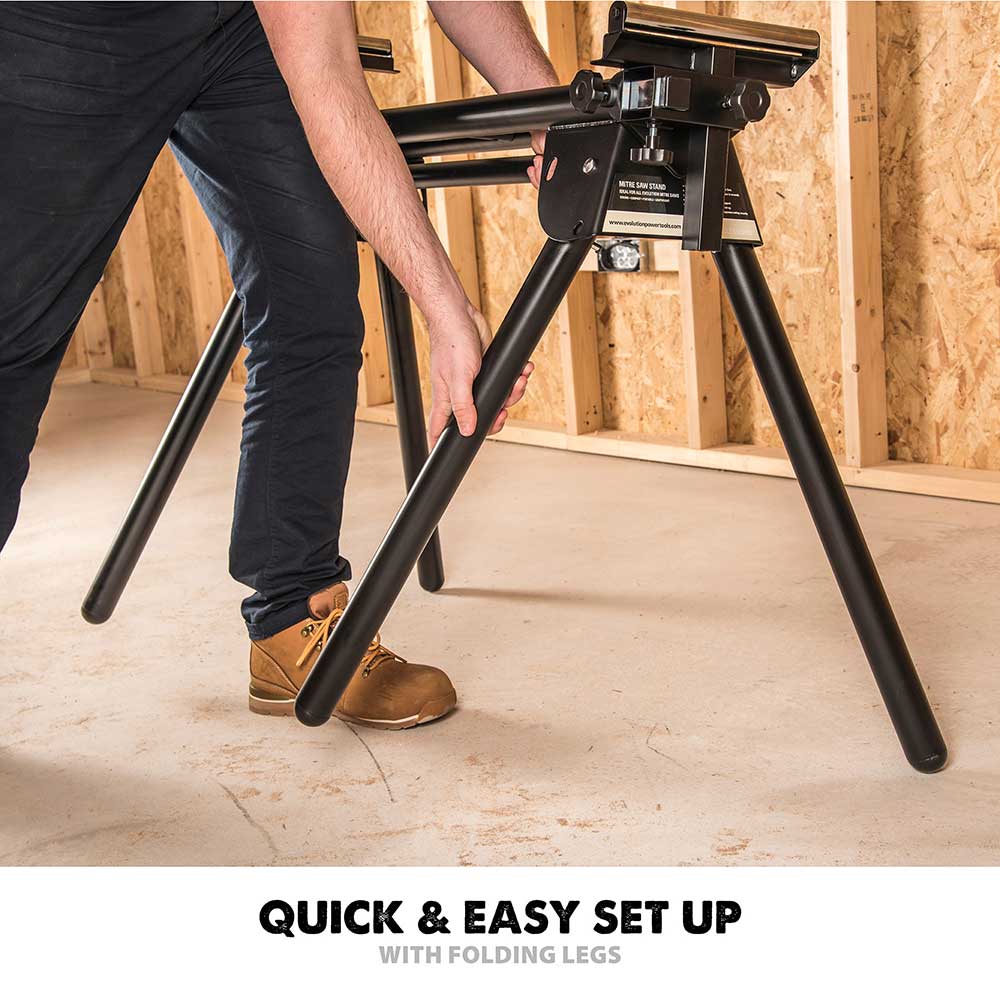

- Quick & easy set-up.
- Easy to transport and store away.
- Fits most brands of mitre saws.

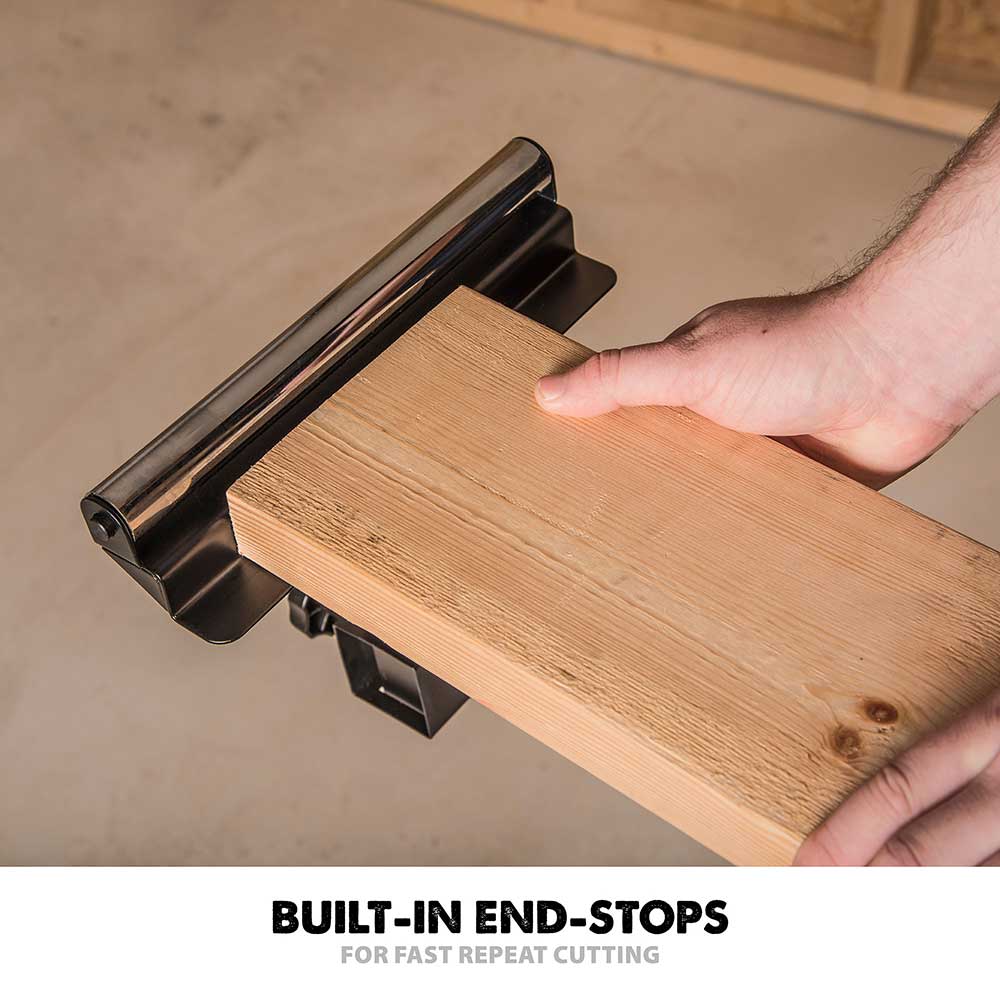

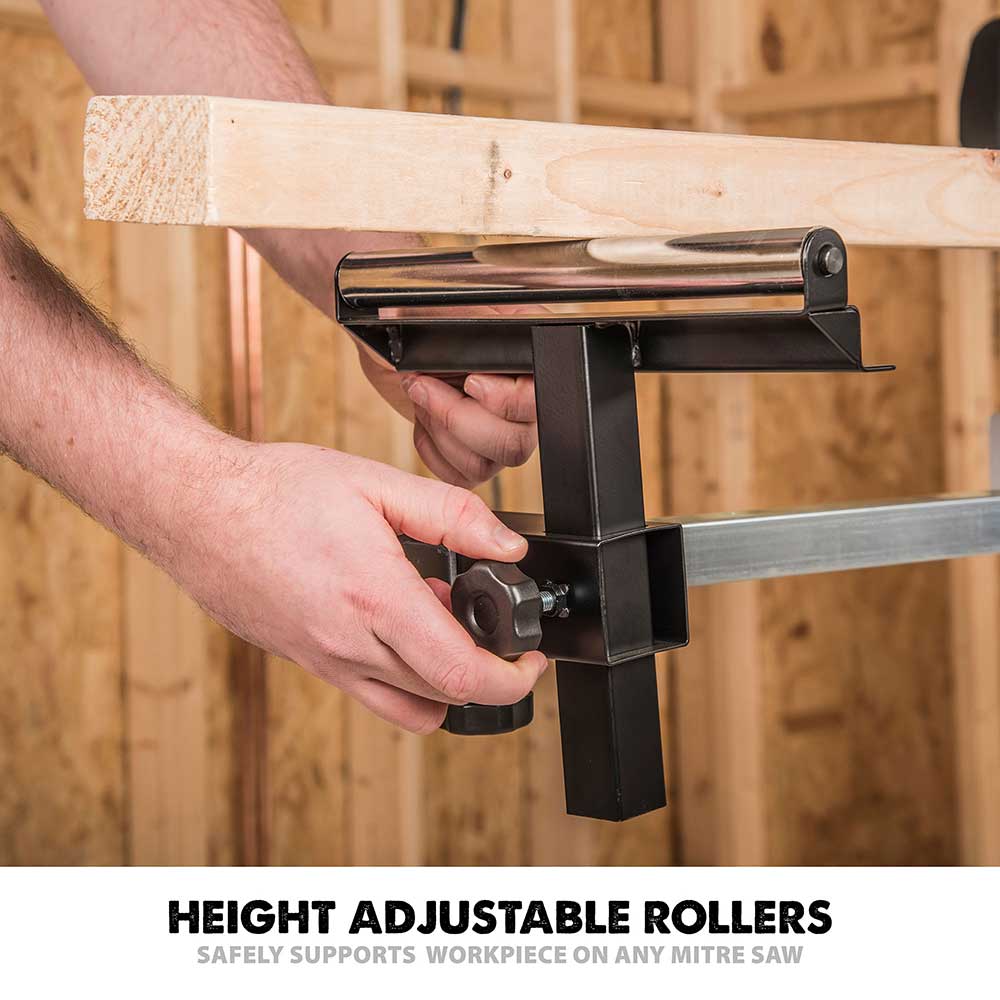

- Height adjustable rollers with built-in end stop. Perfect for repeat cutting.

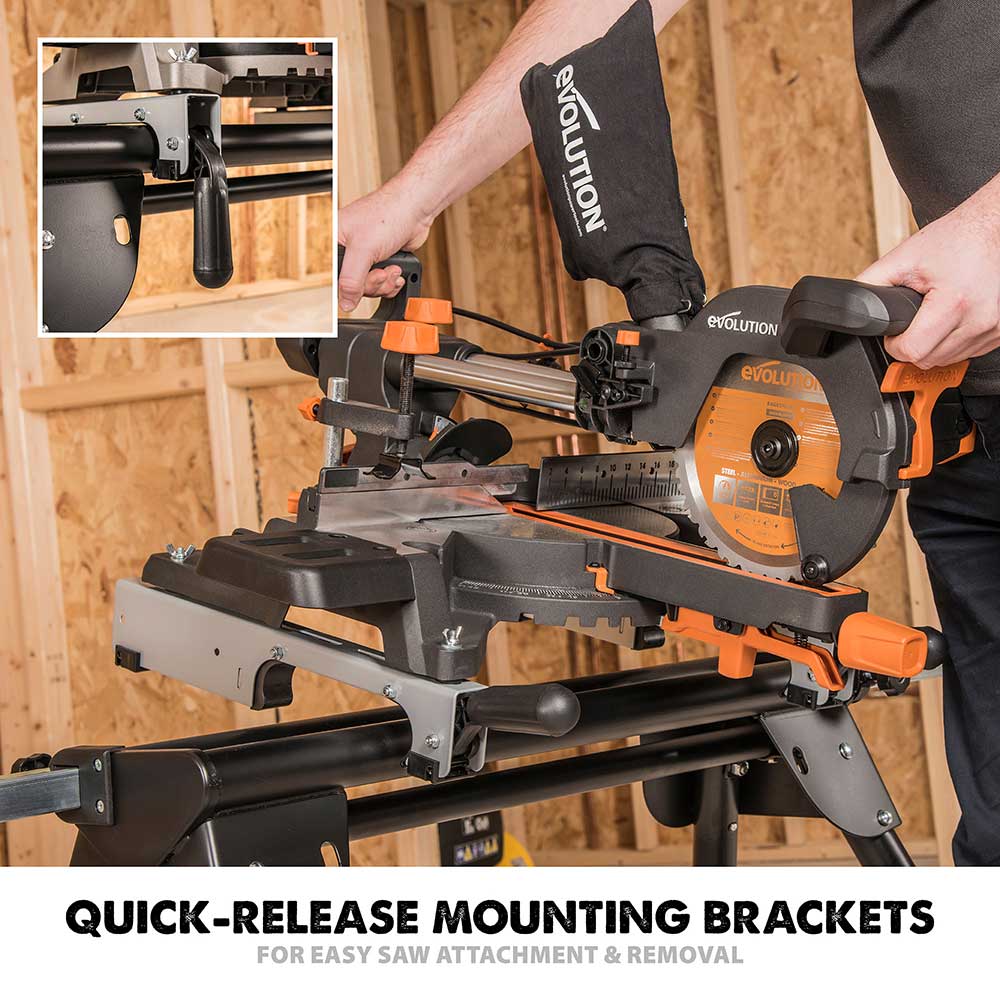

- Quick-release brackets for fast saw fitting and removal.

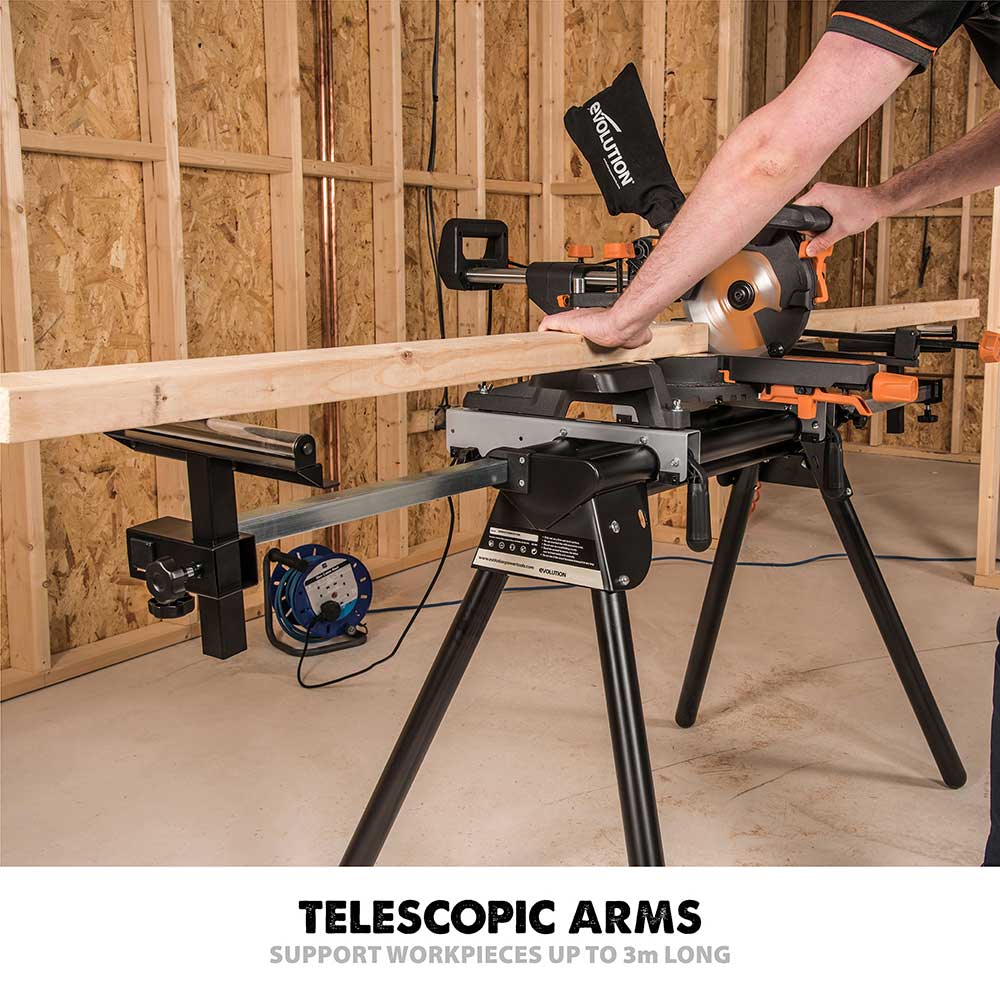

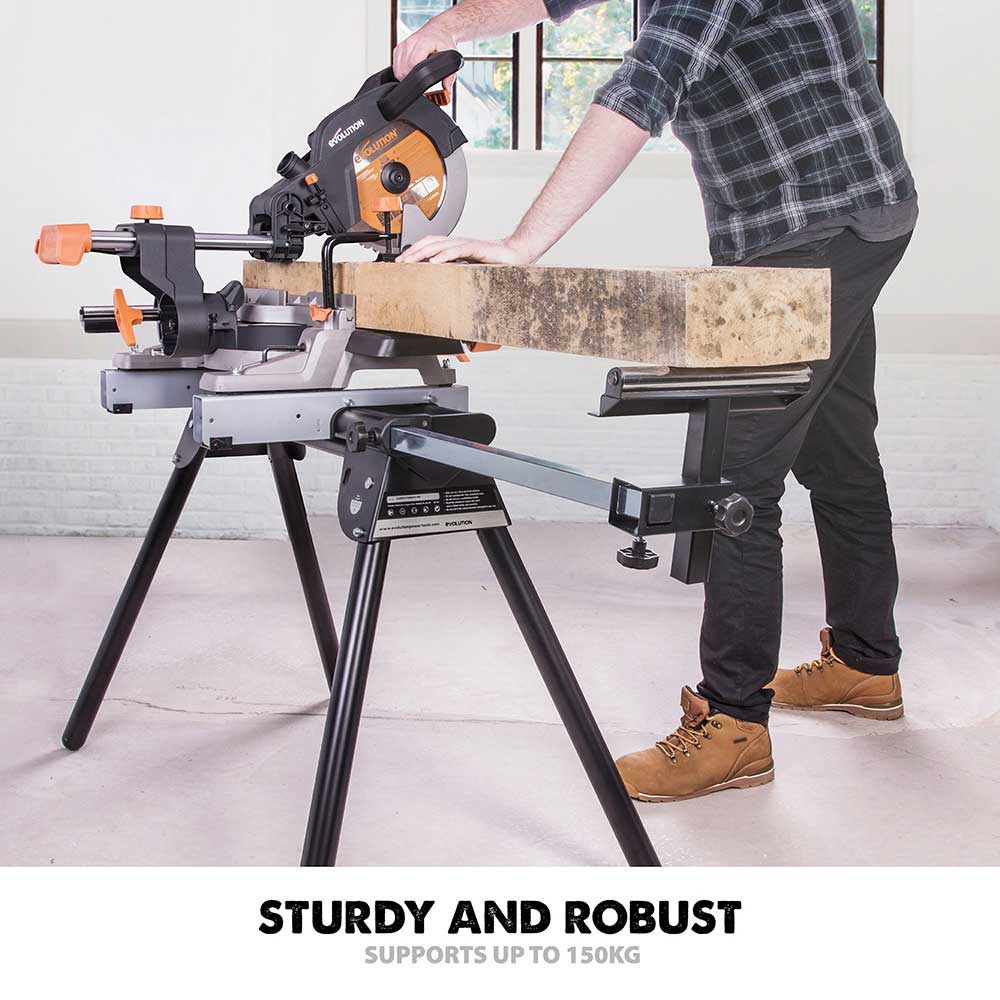

- Support up to 3m long work-pieces and up to 150kg of weight.
- 3 Year limited warranty.
Specifications
R255SMS-DB+ Mitre Saw| Motor (240V 50Hz): | 2000W |
| Motor (110V 50Hz): | 1600W |
| Speed No Load: | 2600 min-1 |
| Max. Bevel (Left): | 45° - 45° |
| Max. Mitre: | 50° - 50° |
| Cable Length: | 4m |
| Blade Dia.: | 255mm |
| No. of Teeth: | 28 |
| Bore: | 25.4mm / 1 in. |
| Kerf: | 2mm |

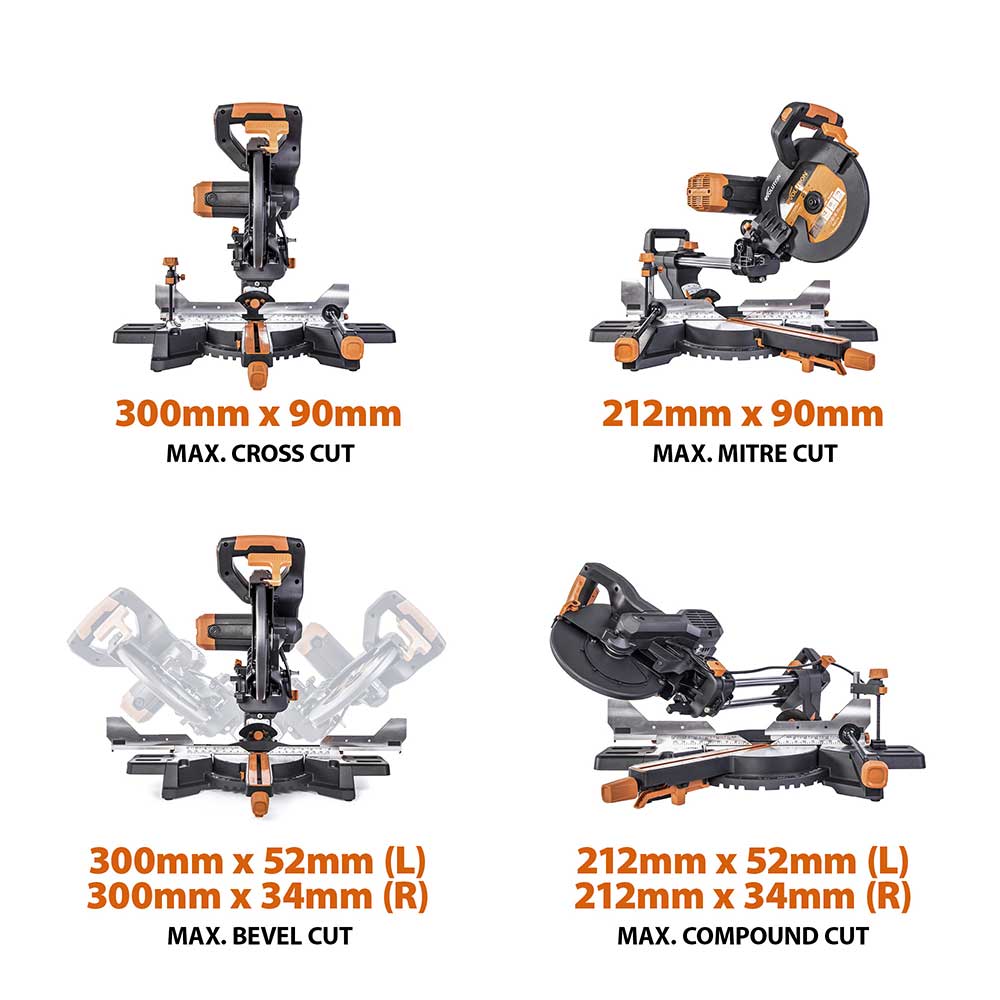

| Max. Cross Cut (0° x 0°): | 300mm x 90mm |
| Max. Bevel Cut Left (0° x 45°): | 300mm x 52mm |
| Max. Bevel Cut Right (0° x 45°): | 300mm x 34mm |
| Max. Mitre Cut (45° x 0°): | 212mm x 90mm |
| Max. Compound Cut Left (45° x 45°): | 212mm x 52mm |
| Max. Compound Cut Right (45° x 45°): | 212mm x 34mm |
| Mild Steel Plate (Max. Thickness): |
1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): |
1/8 in. |
| Product Dimensions: | 570 x 545 x 385mm |
| Packaging Dimensions: | 575 x 545 x 385mm |
| Product Weight: | 18.24 kg |
| Packaged Weight: | 20.5 kg |
| Sound Pressure Level LPA: | 95,8 dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 108,8 dB(A) K=3 dB(A) |
Mitre Saw Stand
| Max. Length Material Support: | 3m |
| Max. Load: | 150kg |
| Max. Saw Mounting Hole Spacing: | 680mm x 330mm |
Dimensions & Weight
| Collapsed Product Dimensions: | 1000mm x 280mm x 230mm |
| Assembled Product Dimensions: | 1100mm x 600mm x 750mm |
| Arms Fully Extended Product Dimensions: | 1970mm x 600mm x 750mm |
| Packaging Dimensions: | 945mm x 265mm x 300mm |
| Product Weight: | 15.5kg |
| Packaged Weight: | 17.65kg |
Items Supplied
| 255mm (10 In.) 28 Tooth Multi-Material Cutting Blade | Machine Table Extensions x2 |
| 6mm & 4mm Dual-Ended Hex Key | Rotary Table And Neck |
| Cutting Head | Carriage Slides |
| Mitre Locking Knob | Mains Cable |
| Guide/Clamp | Self Tapping Cap Screw x1 |
| M6 x 16mm Socket Headed | Screws x4 M5 x 12mm |
| Socket Headed Screws x2 | Laser Lens Cap |
| Cable Clip | Slide Locking Knob |
| Dust Port Adaptor | Dust Collection Bag |
| Quick Release Hold Down Clamp | Instruction Manual |
