Evolution R300DCT Spare Parts

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call. They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.

* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.
Evolution R300DCT Spare Parts - Evolution Power Tools UK
Evolution R300DCT Spare Parts

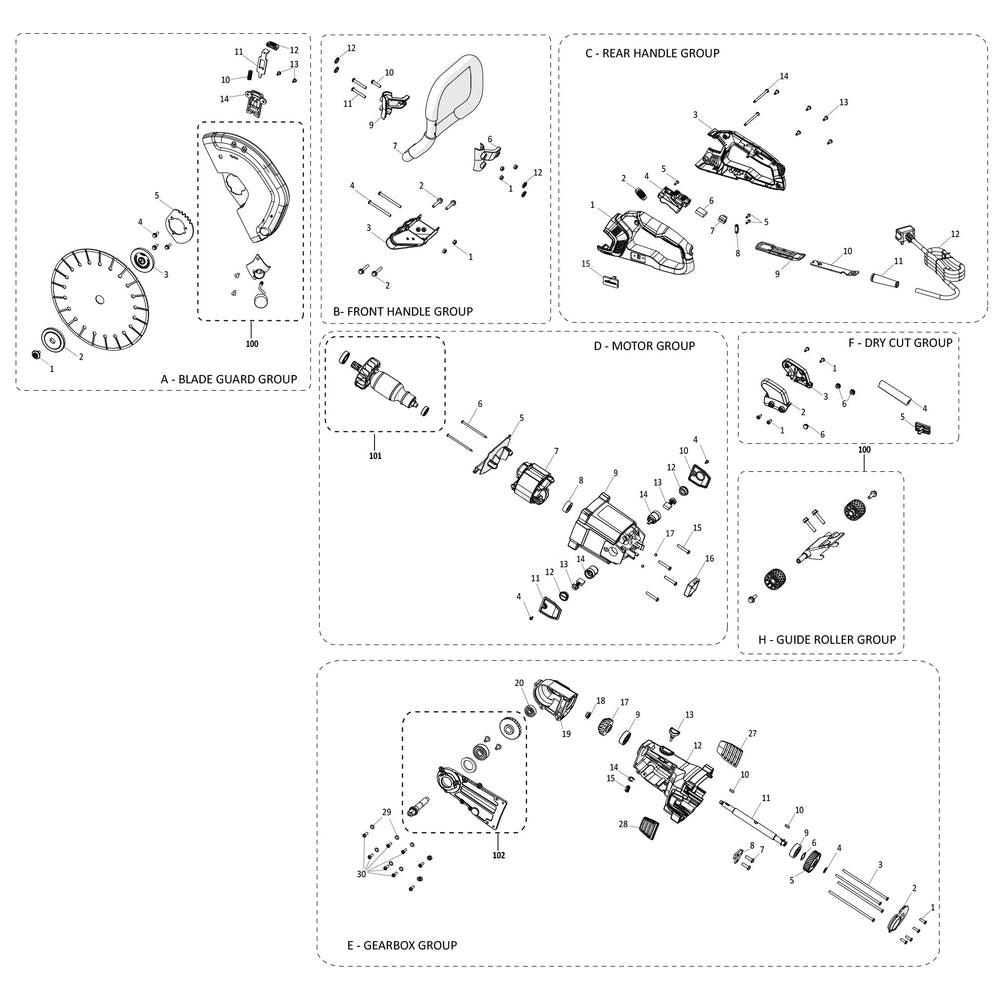

Parts List:

Please enter a search term before proceeding.
A01 - Blade Bolt x1 (# 012-0211)
£2.99

Out of Stock

A02 - Flange Outer 70Mm Pressed x1 (# 012-0203)
£10.99

Only 12 left

A03 - Flange Inner 70Mm Pm Uk/Eu (20/22.2Mm) x1 (# 012-0204)
£10.99

Only 20 left

A05 - 12" Blade Guard Retaining Plate x1 (# 012-0119-A2)
£2.99

In Stock

A100 - 12" Guard Assembly x1 (# 012-0055)
£52.99

Only 3 left

A10 - 12" Blade Guard Rotation Lock Spring x1 (# 012-0122-A1)
£2.99

In Stock

A11 - 12" Blade Guard Rotation Lock Tab x1 (# 012-0121-A2)
£2.99

In Stock

A12 - 12" Blade Guard Rotation Lock Knob x1 (# 012-0124-A1)
£2.99

Only 17 left

A14 - 12" Blade Guard Rotation Lock Cover x1 (# 012-0123-A3)
£2.99

In Stock

B03 - Skid Plate x1 (# 012-0120-A2)
£6.99

In Stock

B06 - Front Bale Handle Support Bracket Back x1 (# 012-0166-A1)
£2.99

In Stock

B07 - Front Bale Handle W / Overmould x1 (# 012-0181)
£69.99

In Stock

B09 - Front Bale Handle Support Bracket Front x1 (# 012-0165-A1)
£2.99

In Stock

B12 - Front Handle Bracket Screw Cap x4 (# 012-0209)
£2.99

In Stock

C01 - Rear Handle Rh x1 (# 012-0153-1-A1)
£11.99

Only 15 left

C02 - Rf Choke x1 (# 012-0131)
£2.99

Out of Stock

C03 - Rear Handle Lh x1 (# 012-0152-1-A1)
£11.99

Only 9 left

C04 - Trigger Switch x1 (# 012-0135)
£24.99

Only 12 left

C06* - Capacitor 220-240V x1 (# 012-0132)
£2.99

Only 3 left

C07 - Wire Block Connector x1 (# 012-0136)
£2.99

Only 10 left

C08 - Wire Restraint Saddle x1 (# 012-0174-A1)
£2.99

Out of Stock

C09 - Tool Storage Housing x1 (# 012-0175-A1 )
£2.99

Out of Stock

C10 - Spanner x1 (# 012-0176-A1)
£2.99

Out of Stock

C11* - Cable Strain Relief x1 (# 012-0180-A1)
£2.99

Only 11 left

C12* - Cable Uk 230V 3M x1 (# 012-0137)
£20.99

Only 20 left

C15 - Rear Handle Lh Water Blanking Plate x1 (# 012-0158-A1)
£3.49

Only 19 left

D05 - Motor Fan Baffle x1 (# 012-0130-A1)
£2.99

Only 9 left

D07* - Field Coil 2400W 220-240V x1 (# 012-0195)
£60.99

Only 12 left

D08 - Rear Motor Bearing Bush x1 (# 012-0173-A1)
£3.49

Out of Stock

D09 - Motor Housing x1 (# 012-0151-A1)
£42.99

Only 15 left

D101 - 2400W Armature Assembly 230V Eu/Uk/Aus x1 (# 012-0050)
£95.99

In Stock

D10 - Brush Cover Cap Lh x1 (# 012-0154-A1)
£2.99

Only 19 left

D11 - Brush Cover Cap Rh x1 (# 012-0155-A1)
£2.99

In Stock

D12 - Brush Holder Screw Cap x2 (# 010-0160)
£2.99

In Stock

D13* - Carbon brush x2 (# 012-0172-A1)
£24.99

Out of Stock

D14 - Brush Holder x2 (# 012-0168-A1)
£10.99

Out of Stock

D16* - Soft Start PCB 220-240V x1 (# 012-0148)
£36.99

Only 10 left

E02 - Helical Gearbox Cover x1 (# 012-0103-A1)
£3.49

Only 10 left

E05 - Helical Gear x1 (# 012-0106-A1)
£18.99

Only 17 left

E08 - Front Handle Clamp Mount Bracket x1 (# 012-0127-A3)
£2.99

In Stock

E09 - 6301-2Z Bearing Ball 37Od 12Id 12W x2 (# F-B-6301-2Z)
£9.99

In Stock

E102 - Bevel Gearbox Assembly x1 (# 012-0060)
£46.99

Only 15 left

E10 - Key Woodruff 4X4X12 x2 (# 012-0197)
£2.99

In Stock

E11 - Drive Shaft x1 (# 012-0111-A2)
£25.99

Only 17 left

E12 - Helical Gearbox x1 (# 012-0101-A1)
£38.99

Only 7 left

E13 - Arbor Lock Pin x1 (# 012-0112-A2)
£2.99

Only 20 left

E15 - Arbor Lock Spring x1 (# 012-0113-A1)
£2.99

Out of Stock

E17 - Bevel Pinion x1 (# 012-0107-A1)
£25.99

In Stock

E19 - Bevel Gearbox x1 (# 012-0102-A1)
£30.99

Only 17 left

E20 - 6200 Bearing Ball 30Od 10Id 09W x1 (# F-B-6200-2Z)
£10.99

In Stock

E27 - Front Vent Left x1 (# 012-0207)
£2.99

Only 16 left

E28 - Front Vent Right x1 (# 012-0208)
£2.99

Only 13 left

F02 - None Water Outlet Handle Lh x1 (# 012-0177-A1)
£2.99

Only 17 left

F03 - None Water Outlet Handle Rh x1 (# 012-0178-A1)
£2.99

In Stock

F04 - Motor Housing Water Guide Blanking Plate x1 (# 012-0157-A1)
£2.99

Only 20 left

F05 - Rear Handle Lh Water Blanking Plate x1 (# 012-0158-A1)
£3.49

Out of Stock

F06 - None Water Bung x3 (# 012-0206)
£2.99

Only 16 left

H100 - Trolley Assembly x1 (# 012-0213)
£16.99

In Stock
