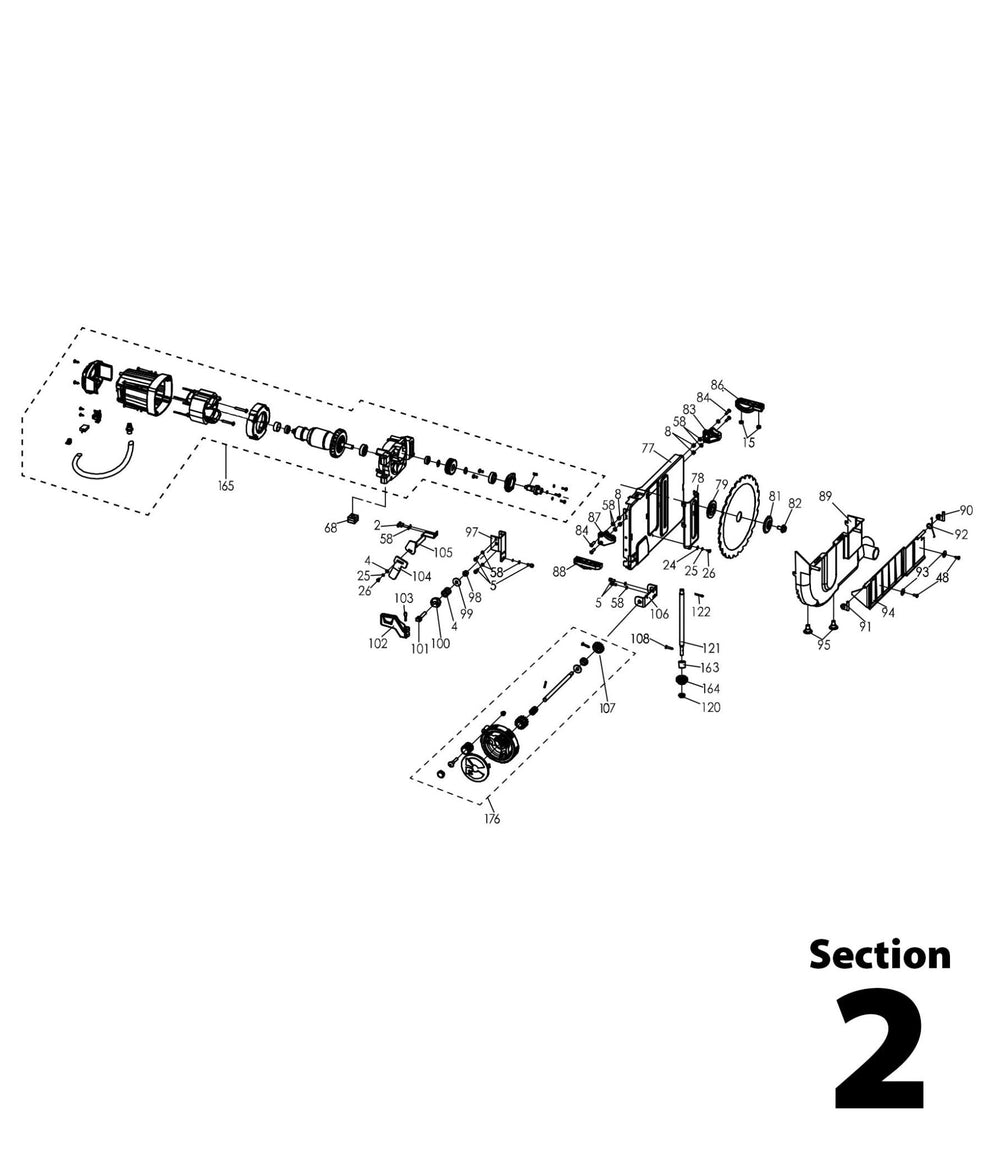

Evolution RAGE5-S Spare Parts Section 2 (Motor & Blade Guard)

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call. They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.

* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.
Evolution RAGE5-S Spares Section 2 - Evolution Power Tools UK
Evolution RAGE5-S Spare Parts Section 2 (Motor & Blade Guard)

Parts List:

Please enter a search term before proceeding.
2 - Screw (# F-SPHPZ-M5-12-ST-BO)
£2.98

In Stock

4 - Spring (# 057-0103)
£2.98

Only 11 left

8 - Nut Nylock (# F-NNIF-M5-ST-BO)
£2.98

In Stock

58 - Spring Washer (# F-SWA-M5-ST-BO)
£2.98

In Stock

68 - Doublet Nut (# 057-0150)
£2.98

In Stock

77 - Motor Bracket (# 057-0157)
£42.98

Only 2 left

78 - Blade Guard (# 057-0158)
£3.98

Only 18 left

79 - Inner Flange (# 057-0159)
£8.98

In Stock

81 - Outer Flange (# 057-0160)
£7.98

Only 19 left

82 - Blade Bolt (# 057-0161)
£3.98

Only 12 left

84 - Cross-screw (# F-SCHPZ-M5-18-ST-BO)
£2.98

Only 13 left

89 - Dust Chute (# 057-0167)
£27.98

Only 3 left

91 - Blade Guard Stop (Front) (# 057-0169)
£2.98

Out of Stock

92 - Blade Guard Plate Spring (# 057-0170)
£3.98

Only 5 left

93 - Flat Washer (# 057-0171)
£2.98

In Stock

95 - Axial Screw (# 057-0173)
£2.98

In Stock

97 - Mount Plate (# 057-0175)
£5.98

Out of Stock

99 - Washer (# 057-0176)
£2.98

In Stock

100 - Locking Pad (# 057-0177)
£2.98

In Stock

101 - Locking Screw (# 057-0178)
£2.98

In Stock

102 - Bevel Locking Handle (# 057-0179)
£3.98

In Stock

103 - Angle Fix Screw (# 057-0180)
£2.98

Only 16 left

104 - Angle Indicator (# 057-0181)
£2.98

In Stock

105 - Angle Indicator Frame (# 057-0182)
£3.98

Only 6 left

106 - Bracket - Driving Rod (# 057-0183)
£5.98

Out of Stock

108 - Screw (# F-TFPX-4.2-20-ST-BO)
£2.98

Out of Stock

122 - Split Pin (# F-SP-2.5-20-ST-BO)
£2.98

Out of Stock

163 - Bush (# 057-0244)
£2.98

Only 9 left

164 - Washer (# F-W-M6-ST-BO)
£1.98

In Stock

165 - Countersunk Screw (# F-SCHPZ-M5-16-ST-BO)
£2.98

In Stock

176 - Height Adjustment Assembly (# 057-0315)
£22.98

Only 15 left

83 - Rear Rotate Block (# 057-0162)
£2.00

Only 1 left

86 - Rear Mount Plate (# 057-0164)
£3.00

Out of Stock

87 - Front Rotate Block (# 057-0165)
£2.00

Only 1 left

88 - Front Mount Plate (# 057-0166)
£3.00

Only 1 left

90 - Blade Guard Stop (Rear) (# 057-0168)
£2.00

Only 5 left

94 - Lower Blade Guard Plate (# 057-0172)
£6.00

Only 5 left

107 - Bevel Gear (# 057-0184)
£4.00

Only 19 left

120 - Bevel Gear Pad (# 057-0195)
£2.00

Out of Stock

121 - Elevation Crank Shaft (# 057-0196)
£5.00

Only 9 left
