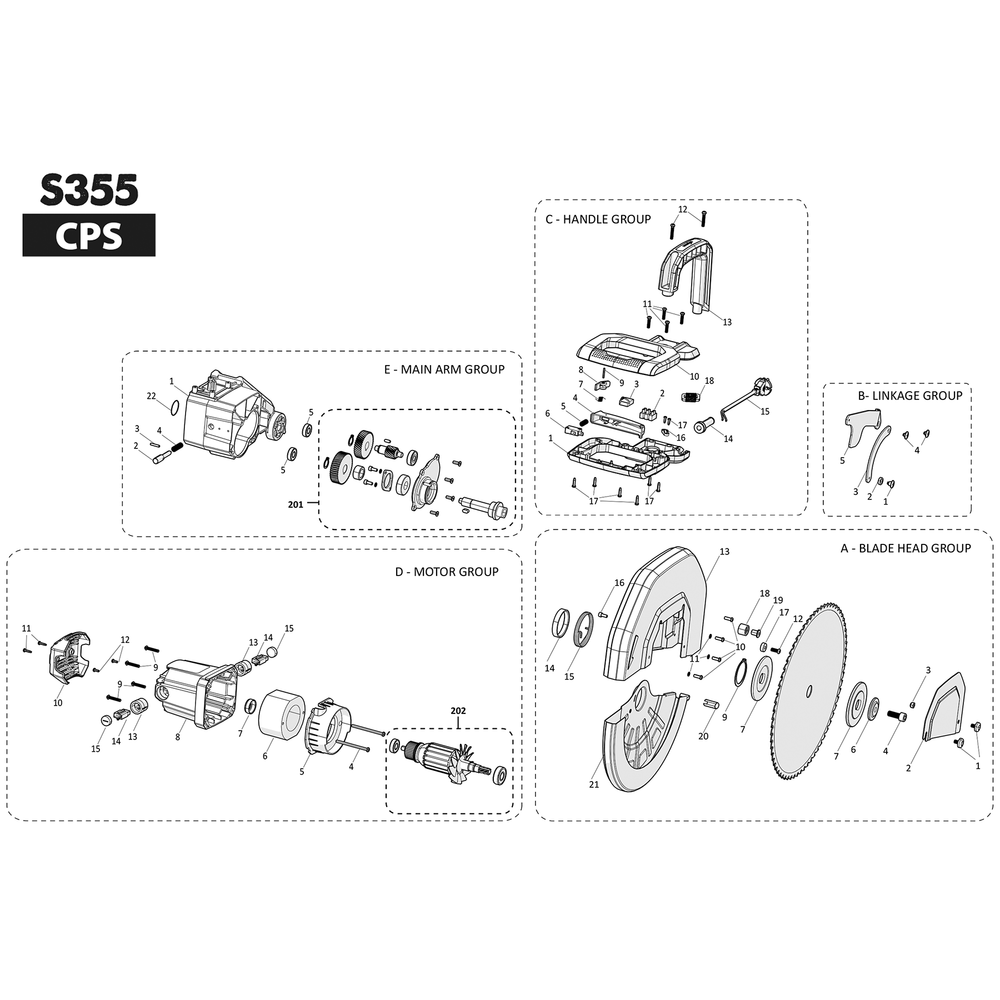

Evolution S355CPS Spare Parts (Head Section)
A01 - Arbour Cover Screw (x2)
(# 083-0101)
A02 - Arbour Cover
(# 083-0102)
A03 - Locking Nut M6
(# F-NSH--M6-ST-BO)
A04 - Socket Cap Screw M10x25
(# F-SHCS-M10-25-ST-BO)
A06 - Blade Washer
(# 083-0103)
A07 - Flange 100
(# 084-0101)
A09 - Circlip φ48
(# F-CCEXT-48-120-ST-BO)
A10 - Pozi Pan Head Screw M5x14 (x4)
(# F-SPHPZ-M5-14-ST-BO)
A11 - Spring Washer φ5 (x3)
(# F-SWA-M5-ST-BO)
A12 - Pozi Pan Head Screw M6x12
(# F-SPHPZ-M6-12-ST-BO)
A13 - Blade Head Assembly 380
(# 084-0102)
A14 - Moving Guard Spring Spacer 380
(# 084-0103)
A15 - Moving Guard Spring
(# 083-0107)
A16 - Socket Cap Screw M5x12
(# F-SHCS-M5-12-ST-BO)
A17 - Ball Bearing 606
(# F-B-606-2Z)
A18 - Bump Stop
(# 083-0108)
A19 - Bump Stop Fixing
(# 083-0109)
A20 - Slider Cap
(# 083-0110)
A21 - Moving Guard Assembly 380
(# 084-0105)
B01 - Linkage Shoulder Screw Upper
(# 083-0115)
B02 - Screw Spacer
(# 083-0116)
B03 - Small Linkage
(# 083-0117)
B04 - Linkage Shoulder Screw Middle (x2)
(# 083-0118)
B05 - Main Linkage
(# 083-0119)
C01 - Main Handle Lower
(# 083-0121)
C02 - Terminal Block
(# 083-0122)
C03 - Capacitor 220-240V
(# 083-0123)
C03* - Capacitor 110V
(# 083-0124)
C04 - Main Trigger Blue
(# 084-0106)
C05 - Main Trigger Spring
(# 083-0126)
C06 - Switch
(# 084-0172)
C07 - Trigger Lock Spring
(# 083-0128)
C08 - Lock Trigger
(# 083-0129)
C09 - Trigger Lock Pin
(# 083-0130)
C10 - Main Handle Upper
(# 083-0131)
C11 - Pozi Pan Head Screw M5x30 w/ Washer (x4)
(# F-SPHPZ-M5-30-ST-BO)
C12 - Pozi Pan Head Screw M5x30 w/ Washer (x2)
(# F-SPHPZ-M5-30-ST-BO)
C13 - Carry Handle
(# 083-0132)
C14 - Cable Sleeve Small
(# 083-0133)
C14 - Cable Sleeve Large
(# 083-0134)
C15 - Cable UK 220-240V/R3m
(# 084-0111)
C15 - Cable EU 220-240V/R3m
(# 084-0113)
C15 - Cable AU 220-240V/R3m
(# 084-0114)
C15 - Cable UK 110V/R3m-2.5mm²
(# 084-0112)
C16 - Cable Strain Clamp
(# 083-0140)
C17 - Pozi Pan Head Tapping Screw ST4x16 (x8)
(# F-TFPX-4-16-ST-BO)
C18 - RF Inductor Coil
(# 083-0195)
D04 - Pozi Pan Head Tapping Screw ST5x80 (x2)
(# F-TFPX-5-80-ST-BO)
D05 - Air Baffle 65
(# 084-0125)
D06 - Stator 65/110-120V 1800W/15A
(# 084-0126)
D06 - Stator 65/220-240V 2200W
(# 084-0127)
D07 - Ball Bearing Cap
(# 053-0270)
D08 - Motor Housing
(# 083-0150)
D09 - Pozi Pan Head Screw M5x30 w/ Washer (x4)
(# F-SPHPZ-M5-30-ST-BO)
D10 - End Cap Blue
(# 084-0131)
D11 - Pozi Pan Head Tapping Screw ST4x16 (x2)
(# F-TFPX-4-16-ST-BO)
D12 - Pozi Pan Head Screw M4x10 (x2)
(# F-SPHPZ-M4-10-ST-BO)
D13 - Brush Holder (x2)
(# 083-0152)
D14 - Carbon Brush 220-240V (x2)
(# 083-0153)
D14 - Carbon Brush 110-120V (x2)
(# 083-0154)
D15 - Brush Holder Cover (x2)
(# 083-0155)
D202 - Armature 65 Assembly 110-120V UK/USA
(# 084-0050)
D202 - Armature 65 Assembly 230V EU/UK/AUS
(# 084-0051)
E02 - Arbour Locking Pin
(# 083-0161)
E03 - Roller Pin 4x20
(# F-SDL-4-20--ST-BO)
E04 - Locking Pin Spring
(# 083-0162)
E05 - Ball Bearing 6000 YQ (x2)
(# F-B-6000-2Z)
E201 - Gearbox Assembly (S355/380)
(# 084-0055)
E22 - Rubber Bearing Ring
(# 083-0196)
