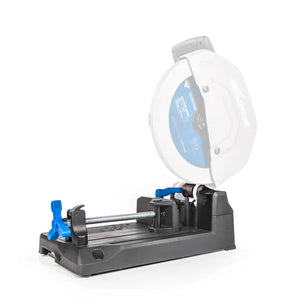

Evolution S355CPS Spare Parts (Base Section)
Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call.
They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.
Scroll to zoom / click & drag to move.
Pinch to zoom

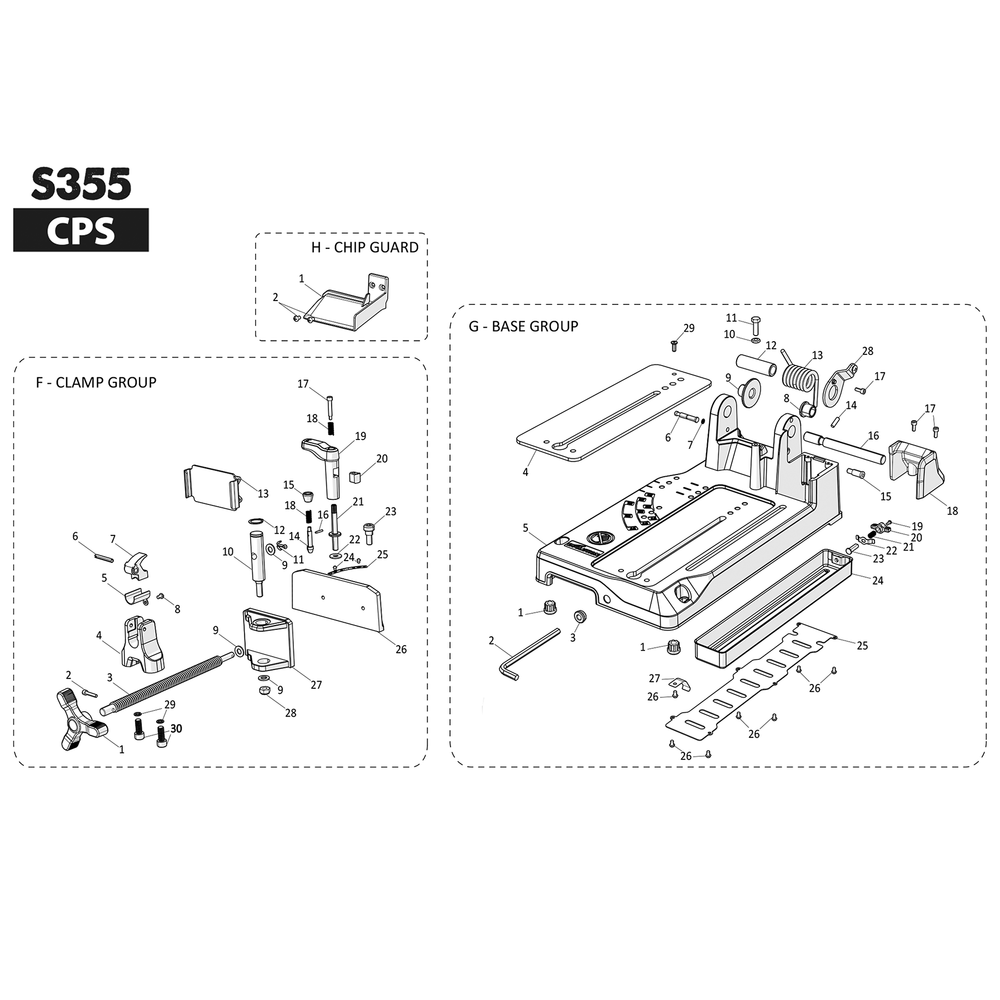

Evolution S355CPS Spare Parts (Base Section)
F1 - Clamp Bar Handle Blue
(# 084-0132)
F2 - Pozi Pan Head Screw M5x25
(# F-SPHPZ-M5-25-ST-BO)
F3 - Clamp Bar - 20mm/Trapezoid
(# 084-0133)
F04 - Clamp Bar Support - QR
(# 084-0134)
F05 - Clamp Bar Wear Plate
(# 084-0135)
F06 - Quick Release Vice Roller Pin
(# F-SDL-6-40-ST-BO)
F07 - Quick Release Vice
(# 084-0137)
F08 - Pozi Pan Head Screw M5x8
(# F-SPHPZ-M5-8-ST-BO)
F09 - Washer φ10xφ20x2 (x3)
(# F-W-M10-ST-BO)
F10 - Moving Vice Spindle - QR
(# 084-0138)
F11 - Split Pin 3x25
(# 083-0176)
F12 - Circlip φ22
(# F-CCEXT-22-120-ST-BO)
F13 - V-Vice Assembly - Steel
(# 084-0139)
F14 - 45° Locking Pin
(# 084-0140)
F15 - 45° Locking Knob
(# 084-0141)
F16 - Roller Pin 3.2x18
(# F-SDL-3-18-ST-BO)
F17 - Quick Release Lever Shaft Screw
(# 084-0142)
F18 - Locking Pin Spring (x2)
(# 084-0143)
F19 - Quick Release Lever Blue
(# 084-0144)
F20 - Quick Release Lever Shaft Insert
(# 084-0145)
F21 - Quick Release Lever Shaft
(# 084-0146)
F22 - Quick Release Lever Shaft Washer
(# 084-0147)
F23 - Socket Cap Shoulder Screw
(# 084-0148)
F24 - Pozi Pan Head Screw M4x5 (x2)
(# F-SPHPZ-M4-5-ST-BO)
F25 - Fence Scale
(# 084-0149)
F26 - Fence - Cast
(# 084-0150)
F27 - Moving Vice Jaw - Cast
(# 084-0151)
F28 - Locking Nut M10
(# F-NNIF-M10-ST-BO)
F29 - Spring Washer φ8 (x2)
(# F-SWA-M8-ST-BO)
F30 - Socket Cap Screw M8x25 (x2)
(# F-SHCS-M8-25-ST-BO)
G1 - Rubber Foot 084 (x4)
(# 084-0152)
G2 - Allen Key S=8
(# F-HEXKEY-M6-ST-BO)
G3 - Rubber Grommet
(# 083-0185)
G04 - Base - Wear Plate
(# 084-0154)
G06 - Head Lock-Down Pin 084
(# 084-0155)
G07 - O Ring 4.5x1.8
(# 083-0188)
G08 - Arm Shaft Spacer Small
(# 084-0156)
G09 - Arm Shaft Spacer Big
(# 084-0157)
G10 - Hex Nut M8
(# F-NSF-M8-ST-BO)
G11 - Hex Screw M8x25
(# F-HSS-M8-ST-BO)
G12 - Main Torsion Spring Spacer
(# 083-0190)
G13 - Main Torsion Spring 084
(# 084-0158)
G14 - Hex Socket Set Screw M6X20
(# F-SSCFP-M6-20-ST-BO)
G15 - Stop Pin
(# 084-0159)
G16 - Arm Pivot Shaft 084
(# 084-0160)
G17 - Socket Cap Screw M5x12 (x2)
(# F-SHCS-M5-12-ST-BO)
G18 - Chip Deflector - Cast
(# 084-0161)
G19 - Pozi Pan Head Screw M4x10
(# F-SPHPZ-M4-10-ST-BO)
G20 - Chip Tray Locking Knob
(# 084-0162)
G21 - Chip Tray Spring
(# 084-0163)
G22 - Locking Plate
(# 084-0164)
G23 - Chip Tray Locking Screw
(# 084-0165)
G24 - Chip Tray Assembly
(# 084-0166)
G25 - Chip Tray Plate
(# 084-0167)
G26 - Pozi Pan Head Screw M5x8 (x7)
(# F-SPHPZ-M5-8-ST-BO)
G27 - Chip Tray Spring Plate
(# 084-0168)
G28 - Main Linkage Bracket
(# 084-0169)
G29 - Socket Cap Countersunk Screw M5x15
(# F-SCHPZ-M5-15-ST-BO)
H01 - Chip Guard
(# 084-0170)
H02 - Pozi Pan Head Screw M5x8 (x2)
(# F-SPHPZ-M5-8-ST-BO)
